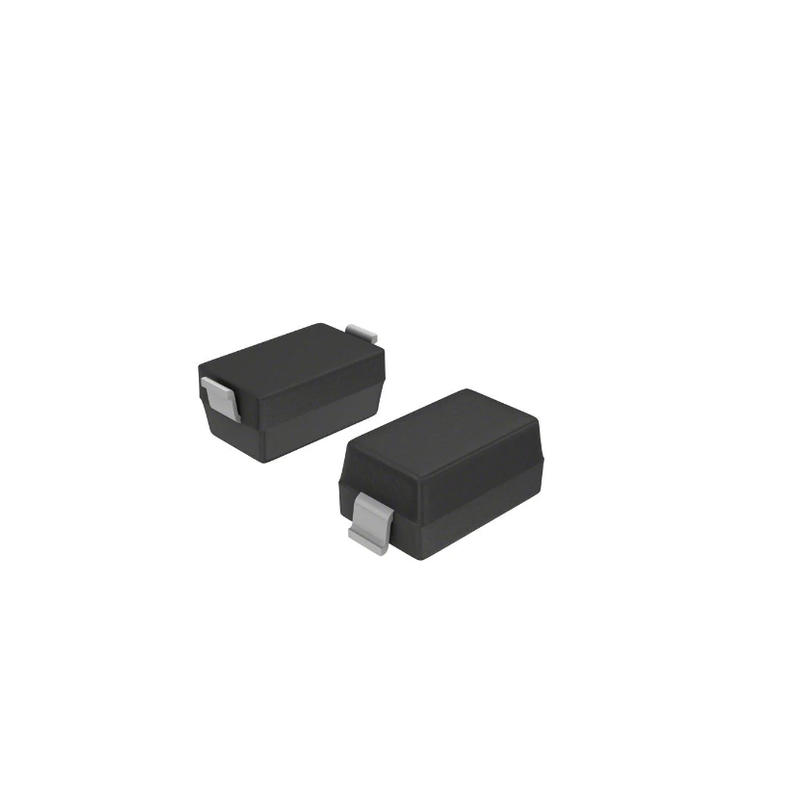

MBR0520LT1G

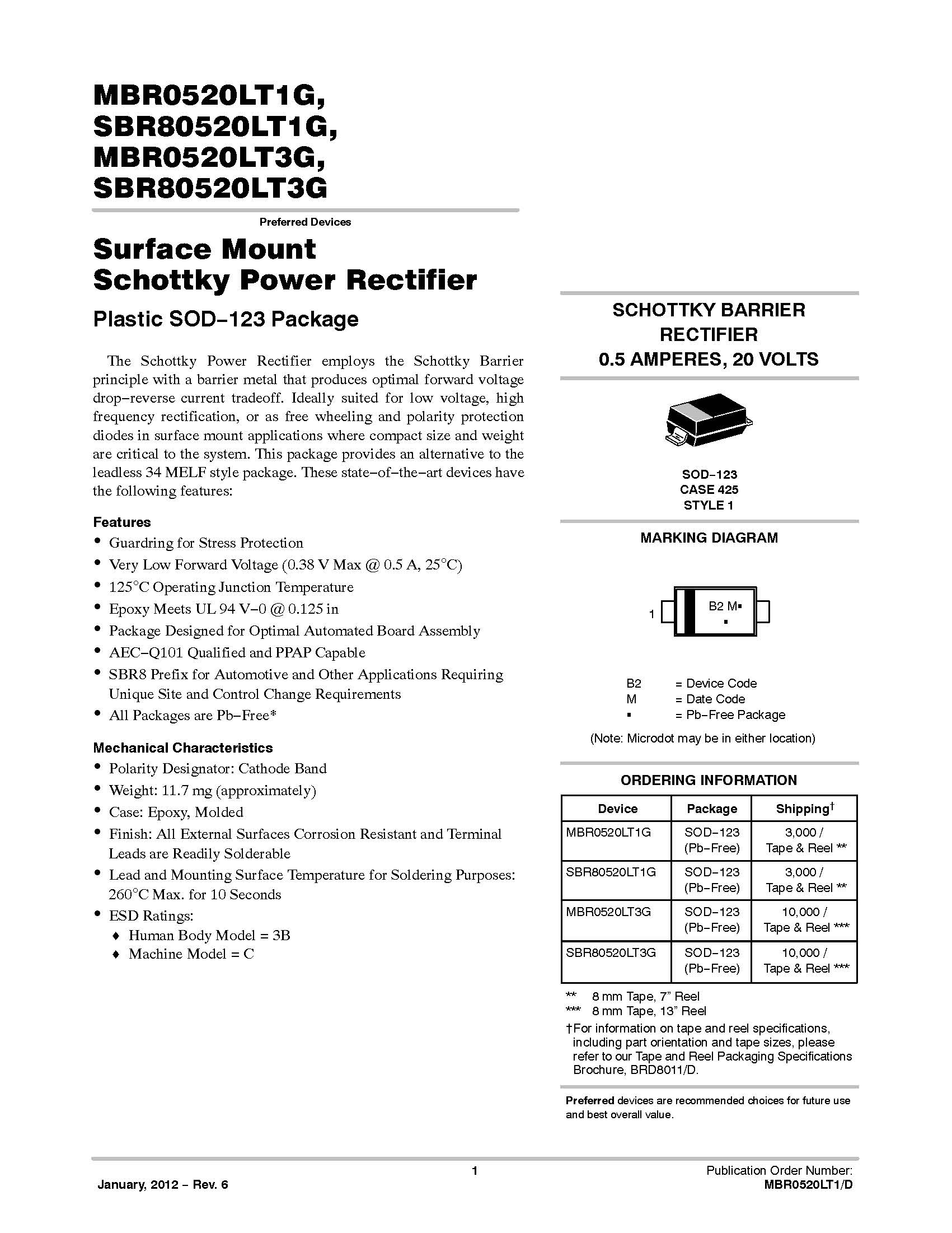

Description
The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop−reverse current tradeoff. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package provides an alternative to the leadless 34 MELF style package. These state−of−the−art devices have the following features:
Features
Guardring for Stress Protection
Very Low Forward Voltage (0.38 V Max @ 0.5 A, 25ºC)
125ºC Operating Junction Temperature
Epoxy Meets UL 94 V−0 @ 0.125 in
Package Designed for Optimal Automated Board Assembly
AEC−Q101 Qualified and PPAP Capable
SBR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
All Packages are Pb−Free*

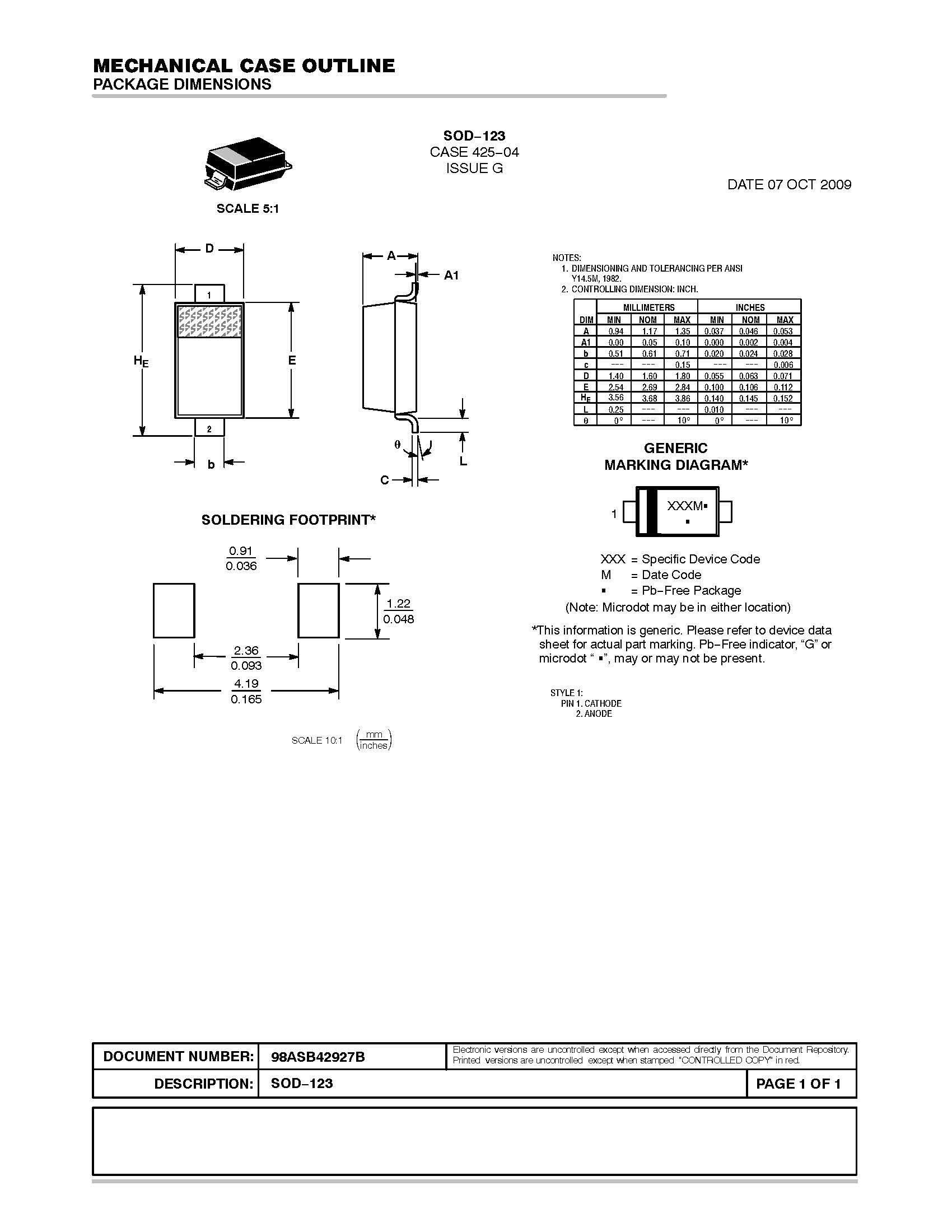

Mechanical Characteristics
Polarity Designator: Cathode Band
Weight: 11.7 mg (approximately)
Case: Epoxy, Molded
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes: 260ºC Max. for 10 Seconds
ESD Ratings: Human Body Model = 3B , Machine Model = C
Data sheet
