1.0Amp Standard Silicon Rectifiers 1N4007 DO-41

1.0Amp Standard Silicon Rectifiers 1N4007 DO-41
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 1N4007

  • 矽润(X-semi)

Product Name:

1.0Amp Standard Silicon Rectifiers 1N4007 DO-41

Product Description:

Mechanical Data:

● Case: Molded plastic body

● Solder plated, solderable per MIL-STD-750,Method 2026

● Polarity: Polarity symbol marking on body

● Mounting position: Any

● Weight : 0.0088 ounce, 0.25 grams


● The plastic package carries Underwriters Laboratory

   Flammability Classification 94V-0

● Open Junction chip

● Low reverse leakage

● High forward surge current capability

● High temperature soldering guaranteed 260 C/10 seconds at terminals

Introducing the 1N4007 DO-41 Rectifier: a professional-grade electronic component designed to efficiently convert alternating current (AC) to direct current (DC) in a wide range of applications.

With its high-quality construction and reliable performance, the 1N4007 DO-41 Rectifier is an essential component for any electrical circuit requiring rectification.

Featuring advanced technology and precision engineering, this rectifier offers seamless conversion of AC to DC, ensuring a steady and reliable power supply. Its DO-41 package provides easy installation and compatibility with various circuit boards and systems.

The 1N4007 DO-41 Rectifier is built to withstand demanding conditions, making it suitable for use in both industrial and consumer electronics. Its durable design ensures long-lasting performance, while its compact size allows for space-efficient integration into any circuit design.

Trust the 1N4007 DO-41 Rectifier to deliver exceptional rectification capabilities with utmost precision and reliability. It is the ideal choice for professionals seeking a high-performance rectifier for their electronic projects.

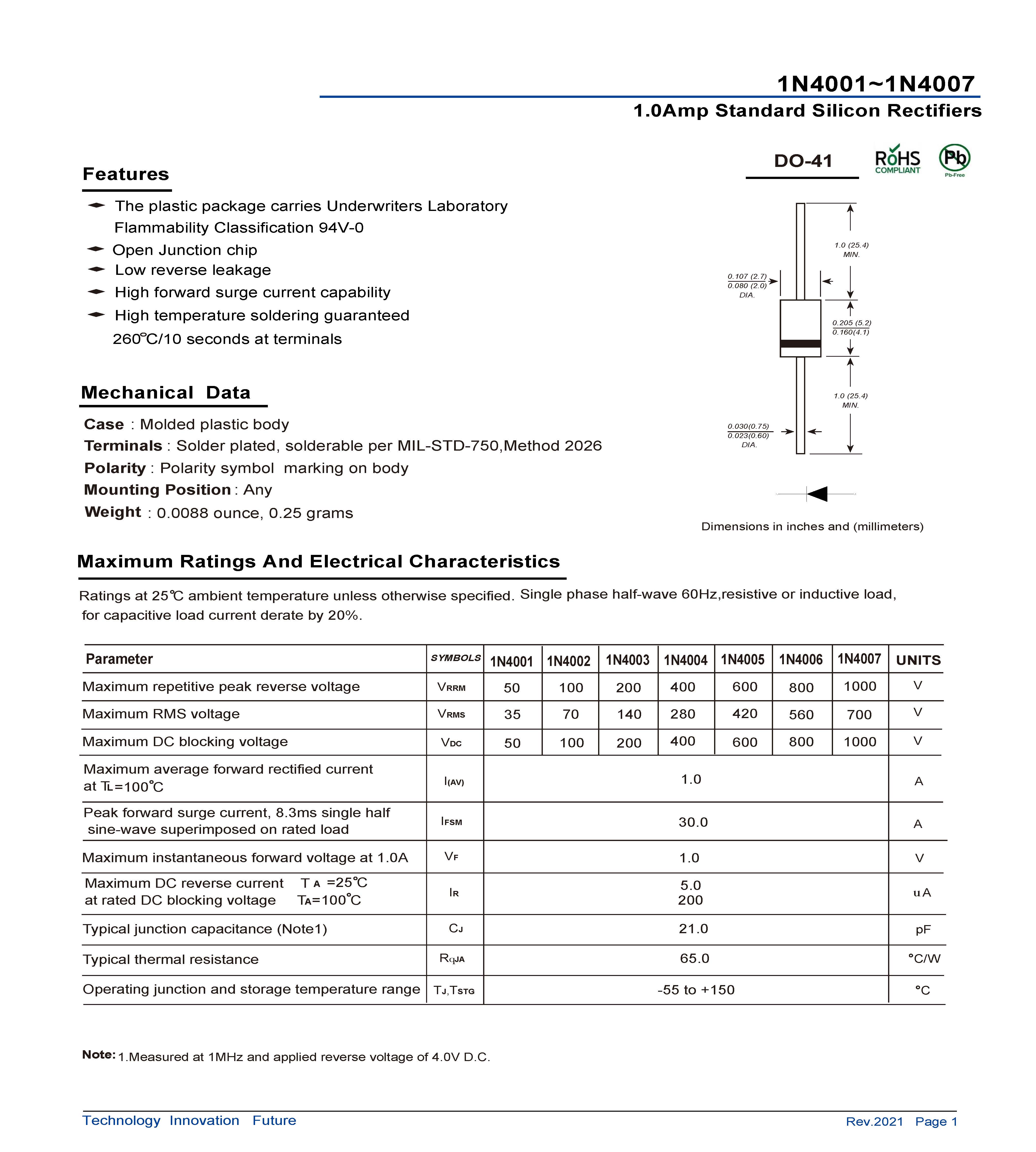

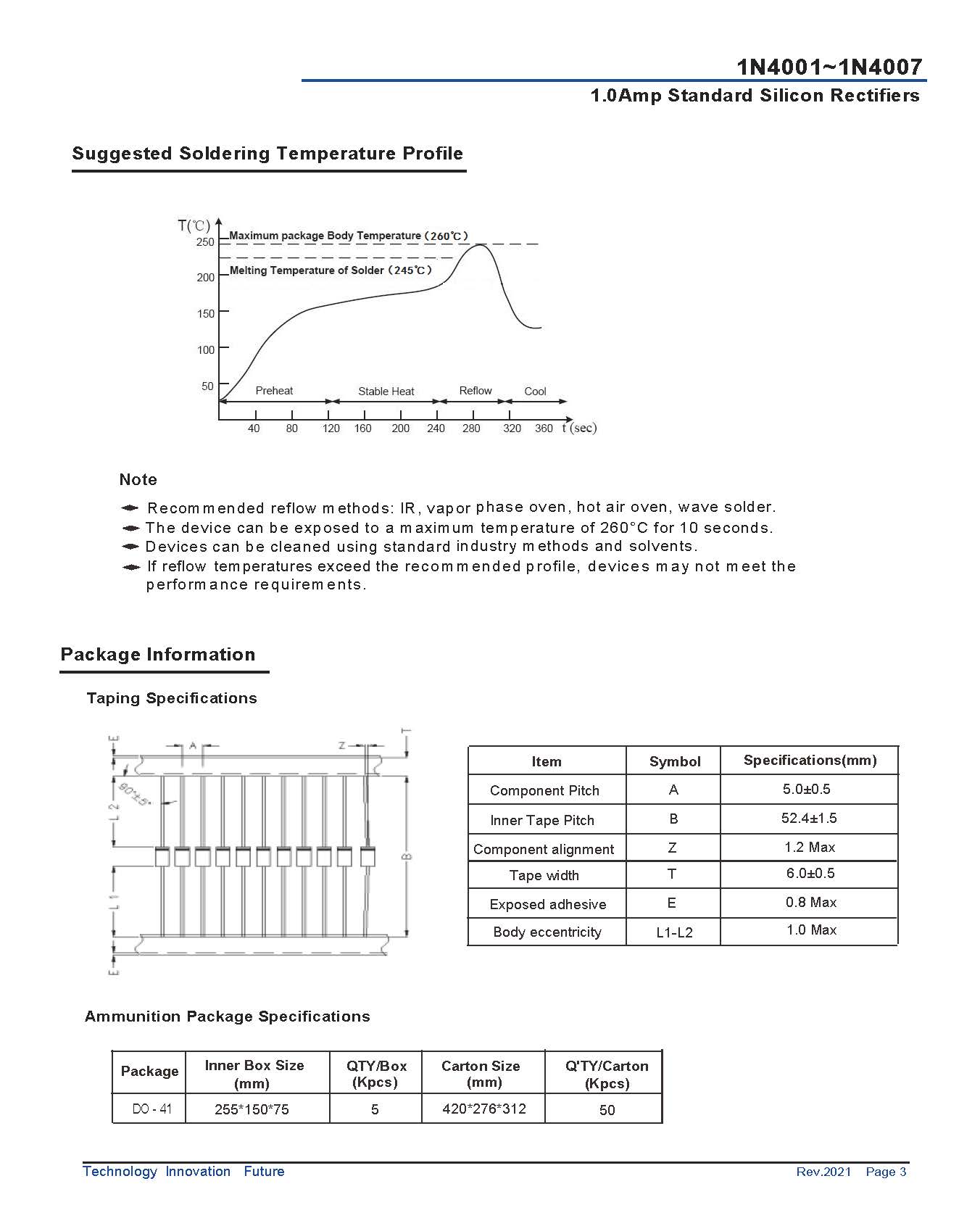

Product Specifications:

1N4007 DO-41.pdf

1N4007 DO-41_页面_11N4007 DO-41_页面_21N4007 DO-41_页面_3
