100Volts 50mWatts Fast Switching Surface Mount Diodes LS4148

Features

Fast Switching Speed

Surface Mount Package Ideally Suited for Automatic Insertion

For General Purpose Switching Applications

High Conductance

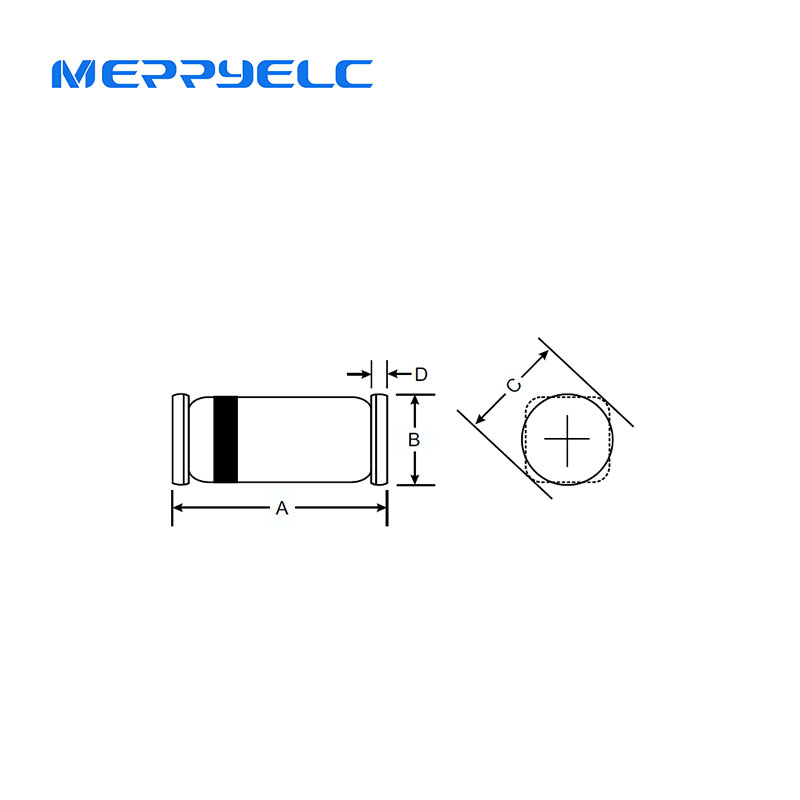

Outline Similar to JEDEC 213AA

Mechnical Data

Case: QuadroMELF, Glass

Terminals: Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Marking: Cathode Band Only

Weight: 0.034 grams (approx.)

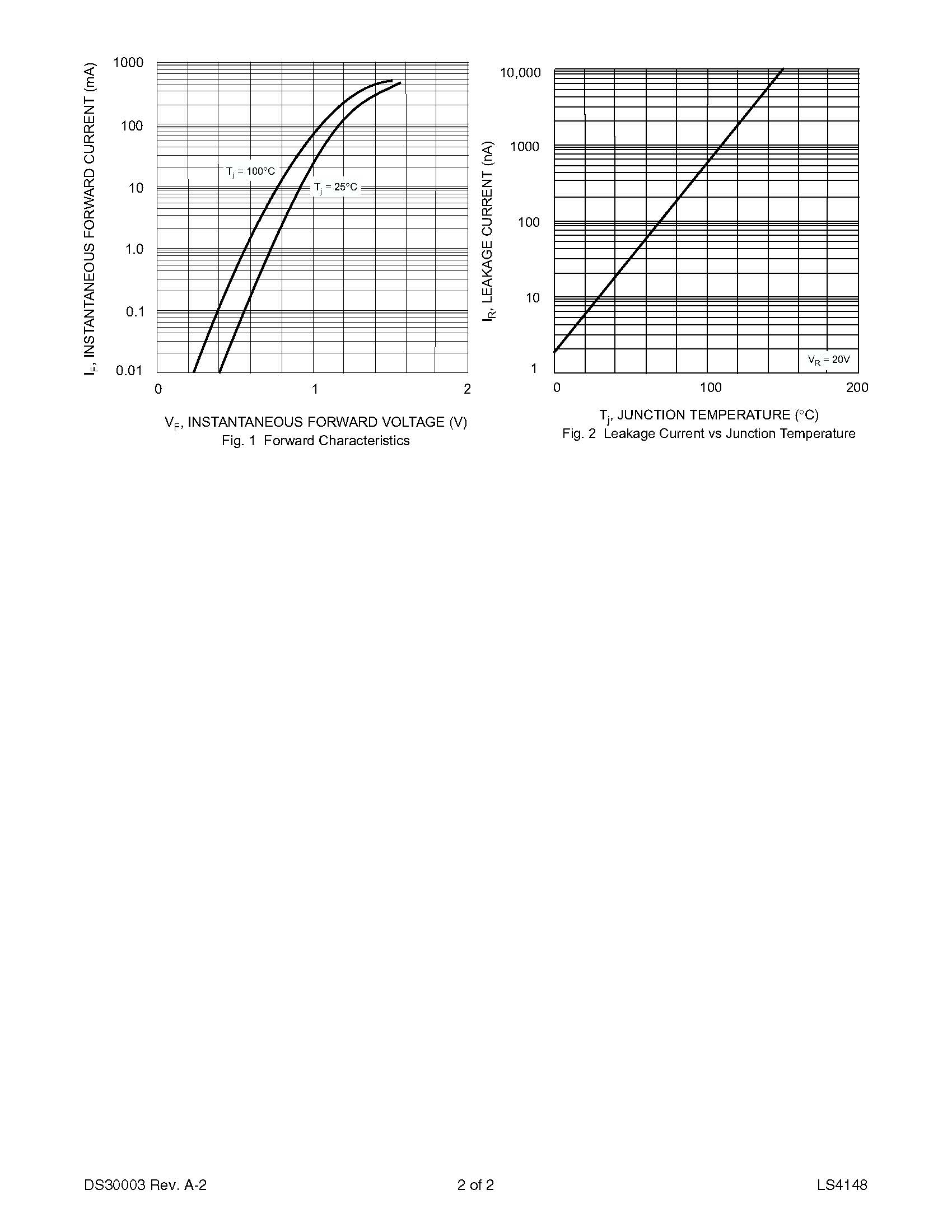

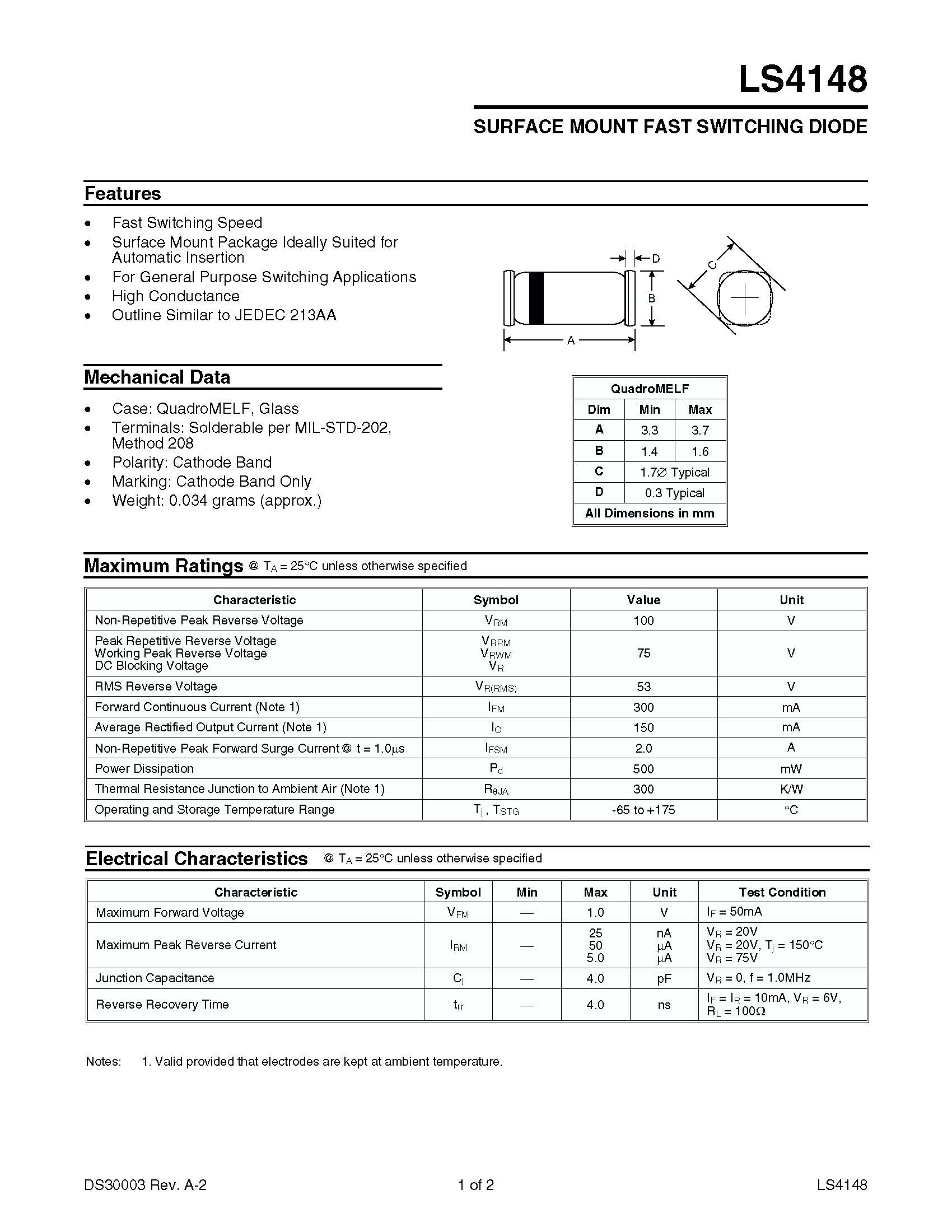

DIODES-LS4148.pdf

Data Sheet
