150mA, 16V, high-precision, low voltage drop regulator, SOT-23-5, LP2985AIM5X-3.3/NOPB

150mA, 16V, high-precision, low voltage drop regulator
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • LP2985AIM5X-3.3/NOPB

  • Merry

150mA, 16V, high-precision, low voltage drop regulator, SOT-23-5, LP2985AIM5X-3.3/NOPB

Output options

Fixed Output
Iout (Max) (A)

0.15
Vin (Max) (V)

16
Vin (Min) (V)

2.2
Vout (Max) (V)

10
Vout (Min) (V)

1.8
Fixed output options (V)

1.8, 2.5, 2.8, 2.9, 3, 3.3, 5, 10
Noise (uVrms)

30
Iq (Typ) (mA)

0.065
Thermal resistance θJA (°C/W)

206
Rating

Catalog
Load capacitance (Min) (µF)

2.2
Regulated outputs (#)

1
Features

-
Accuracy (%)

3
PSRR @ 100 KHz (dB)

40
Dropout voltage (Vdo) (Typ) (mV)

280
Operating temperature range (C)

-40 to 125

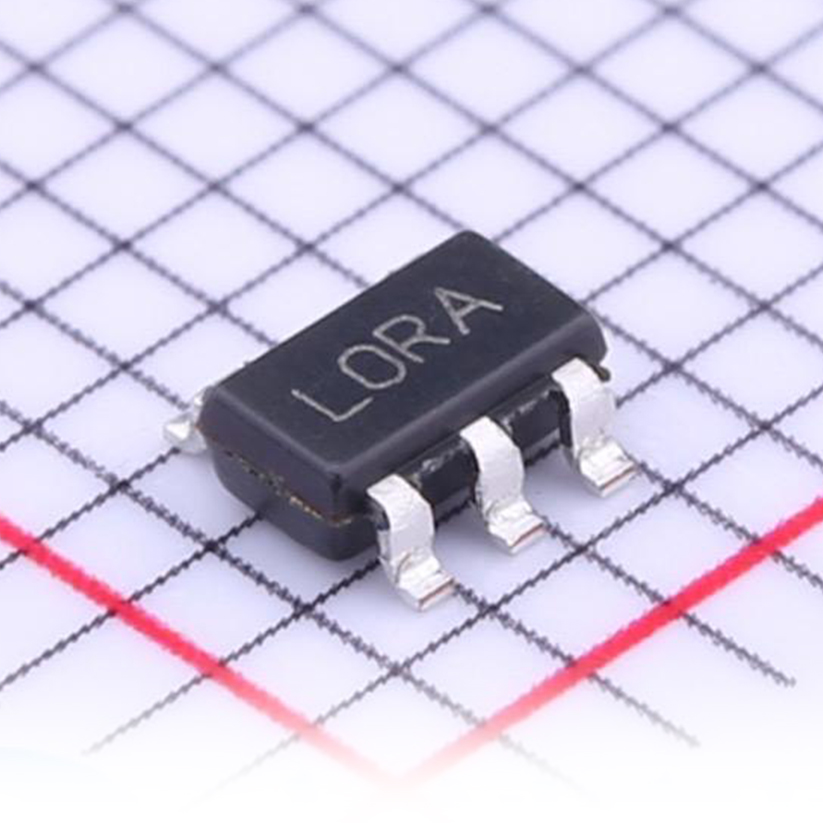

LP2985AIM5X-3.3-NOPB-1

Name1

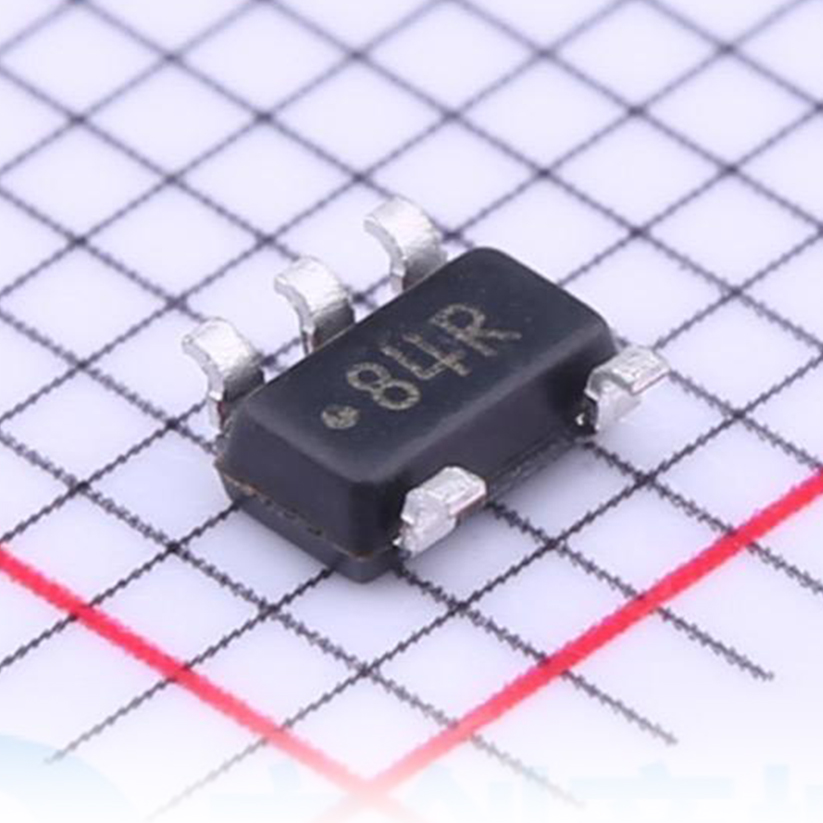

LP2985AIM5X-3.3-NOPB-2
