What's the difference between BJT and MOSFET transistor and how to choose in 2026?

You need the correct semiconductor part for your circuit project. A bipolar junction transistor works as a current-controlled device that pushes collector current using base input. This bjt design is great for boosting weak signals cheaply. On the other hand, a metal oxide semiconductor field effect transistor works as a voltage-controlled device. This mosfet design uses gate voltage to switch large currents very efficiently.

Your decision directly changes how well your entire system works. A bjt has low input impedance along with positive thermal feedback. A mosfet provides very high input impedance and fast switching speeds. Today, modern engineers carefully balance low-voltage microcontroller compatibility, power density, switching frequency, and total project cost to pick the best transistor.

Key Takeaways

• BJTs use electric current to make quiet audio signals stronger for a low price.

• MOSFETs use gate voltage to control big power loads fast and easily.

• MOSFETs stop unsafe overheating because their pathway resistance goes up when they get hotter.

• 3.3V microcontrollers need logic-level MOSFETs to stop circuit power losses.

• BJTs work best for low-frequency audio systems because they make less unwanted signal interference.

BJT vs MOSFET Mechanics

BJT Current Control

You manage a bipolar junction transistor by sending electric current straight into its middle pin. This three-terminal chip uses three working parts named the base, collector, and emitter. A tiny current entering the base pin opens up the path connecting the collector and emitter pins. The main power movement depends on two different charge carriers, which include negative electrons and positive holes.

You will find two main physical types when choosing a bjt for your electronic projects. An npn bjt powers up whenever electric current moves into its base connection. On the flip side, a pnp bjt turns on when current flows away from that same base pin. Steady base current must flow at all times to keep this component working inside your circuit.

MOSFET Voltage Control

You run a metal oxide semiconductor field effect transistor by sending a voltage signal onto its insulated gate connection. This special component actually works as a four-terminal chip containing a gate, drain, source, and body substrate layer. Voltage on the gate creates a strong electric field across a thin protective oxide layer. That electric field manages an underlying path without pulling continuous power into the gate pin.

You can pick a metal-oxide-semiconductor field-effect transistor in two main styles for your power projects. An n-channel mosfet uses tiny electrons to carry electricity across its internal channel. Meanwhile, a p-channel mosfet uses positive holes to move electric current instead. Since this field effect transistor uses a unipolar setup, only one type of charge carrier travels through the path. You get much better energy efficiency because the gate pin uses almost no power while running steadily. A modern mosfet physically acts as a four-terminal chip, but makers normally attach the inner body substrate right to the source pin inside the case.

Transistor Performance Comparison

Switching Speed and Efficiency

You must check input impedance while comparing transistor options. A bjt features low input impedance. Because of this, your driver circuit must send steady base current to keep it running. A metal oxide semiconductor field effect transistor offers very high gate impedance instead. The insulated gate layer stops direct current flow. Your main control circuit pulls tiny amounts of DC power during regular operation.

A mosfet gives faster performance in high-speed power circuits. The unipolar field effect transistor clears saved energy quickly. That action cuts down switching power losses in fast designs. On the other hand, a bipolar junction transistor needs charge carriers to combine before shutting off. That process slows its turn-off speed. Still, a bjt needs lower starting voltage to turn on. You can power a small bjt using about 0.7 volts across its base pin. That low level helps boost simple audio signals without extra helper circuits.

Thermal and Power Limits

You should learn how inner heat affects power flow during heavy usage. Heat changes electrical path limits inside silicon chips based on their layout.

A bjt has a negative temperature rating. Its main voltage drops down whenever internal heat goes up. That voltage drop makes the part draw extra current at higher temperatures. More power creates higher inner heat. This bad cycle concentrates current in small spots and causes damaging heat failure. You need extra cooling parts like big metal heatsinks to shield your bjt.

A mosfet shows a positive temperature rating instead. Internal path resistance increases naturally as heat goes up. That rising resistance slows down power movement across hot chip areas. The system forces electric power to spread safely across the whole silicon surface. This self-adjusting feature keeps a power mosfet steady during heavy work. You can easily hook up many parts together without complicated balancing setups.

You get high system power efficiency by matching these working traits to your main project needs. Pick a bjt for low-cost signal booster designs. Choose a mosfet whenever your circuit needs a super-fast power switch.

Circuit Application Scenarios

Amplification and Linear Operation

Building low-power audio amplifiers using a bjt works really well. This chip offers great voltage boost and steady linear performance for sound gear. These qualities keep music clean by stopping unwanted audio distortions. Basic bjt options cost much less than mosfet parts offering equal gain levels. You reduce project expenses while enjoying high quality in simple home speakers.

Low-frequency sensor tools benefit from bipolar transistor circuits too. A mosfet creates far more background flicker noise than a bjt at lower speeds. You can combine an npn bjt with a pnp bjt to make steady input circuits. This setup provides excellent matching for voltage chips and operational amplifiers. You protect weak sensor signals without introducing harmful heat noise into your board.

High-Current Power Switching

Heavy power switching needs good energy controls to run safely. A strong power mosfet serves as a reliable switch for digital systems. Gate voltage opens the main path without drawing steady DC power. You can easily control this gate pin using simple logic outputs. High gate impedance stops your main controller from wasting electricity during normal work.

Power losses scale differently in high-current setups based on your switch choice. A bjt finds total collector heat loss using the simple equation P_C = V_CE(sat) * I_C. That power loss rises at a steady rate alongside collector current. A mosfet finds total heat loss using the formula P_D = I_D^2 * R_DS(on). That heat loss grows much faster when drain current increases. Rising heat raises path resistance during heavy loads. You should check thermal limits carefully to protect your hardware.

2026 Selection Guide with MeiZhao Electronic

Selection Criteria Matrix

Newer circuit board designs require smart semiconductor decisions. You need to pick proper components by reviewing logic drive levels, heat limits, and target switching speeds. Microcontrollers work at lower supply voltages today. You must match your driver device to these specific control voltages to stop big power losses.

An ordinary transistor choice depends right on your main driver signal strength. Modern 3.3V or 1.8V microcontroller outputs cannot run old switches well. A low-voltage control signal can fail to open an older part completely. The chart below shows key driving rules for modern system controllers:

When you run a 3.3V microcontroller, you need parts with RDS(on) listed at VGS <= 2.5V or 2.8V. A 1.8V microcontroller system takes parts rated at VGS = 1.8V to keep correct logic limits between 2.0V and 2.5V. Without these gate limits, your circuit faces high path resistance and inside heat build-up.

Target switching speed changes part choices too. High-speed power supplies need quick path movements to lower power loss. A unipolar mosfet works best over 100 kHz since it has no charge storage delay. But low-speed control circuits under 10 kHz can use a cheap bjt when running simple relays or lights.

Heat limits decide long-term circuit life. High current usage raises inside heat quickly. You should check part packages along with heat cooling needs. Parts with positive temperature numbers let you connect items side-by-side easily in big power boards. Parts with negative heat traits need close current checks to stop dangerous heat damage.

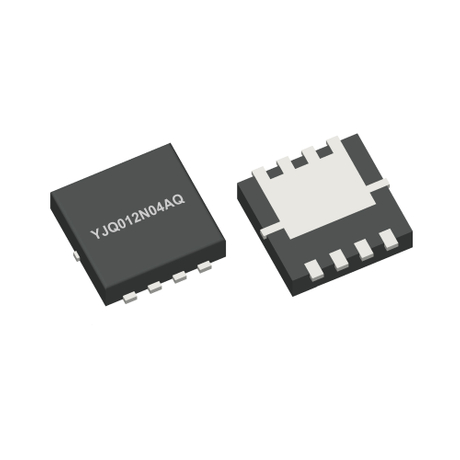

MeiZhao Electronic Solutions

Dongguan Merry Electronic Co., Ltd offers reliable discrete semiconductor parts under the popular MeiZhao Electronic brand name. You can pick top discrete semiconductors made for modern factory, car, and consumer gear uses. The maker builds dependable parts that meet tough world design rules.

Quality control is a main focus at MeiZhao Electronic. The factory holds complete work quality certificates like ISO9001, ISO14001, and IATF16949 rules. Every discrete part fully meets RoHS and REACH clean environment rules. You receive green power items that promise safe work inside heavy car networks and factory controllers.

Engineering teams at MeiZhao Electronic provide complete technical help for your designs. You get direct help from a real Field Application Engineer team to fix hard board setup problems. This expert help lets you tune drive circuits, handle heat loads, and lower total part costs.

Picking the correct bjt or field-effect device is easy with factory help. MeiZhao Electronic provides high-efficiency items built for power supplies, internet networks, and energy control setups. You receive steady work, certified quality checks, and safe part supplies for your 2026 electronics projects.

You can make the right component choice by following basic design rules. Pick a mosfet when you build fast power switches or connect directly to modern microcontroller pins. High energy efficiency makes this option ideal for modern digital hardware. Choose a bjt when you need low-cost linear amplification for audio or sensor signals. This current-controlled option processes weak analogue inputs reliably without extra circuit costs.

Selecting the ideal transistor in 2026 depends on your exact project needs. You must carefully balance switching frequency, power dissipation, and driver circuit complexity. Matching these performance factors guarantees optimal efficiency and long-term hardware stability for your next board build.

FAQ

Can you drive a mosfet directly with a 3.3V microcontroller?

Yes, a 3.3V microcontroller can easily run a logic-level mosfet. Just select a type featuring a small gate threshold voltage. That simple step lowers internal path resistance and prevents harmful chip overheating as your board operates.

Why do low-frequency sensor circuits often use a bjt?

A bjt works great in low-frequency sensor gear since it creates way less flicker noise than field-effect devices. This low-noise performance protects faint electrical signals while delivering dependable linear output at a reduced component price.

How do thermal characteristics differ between power switches?

Because a bjt has a negative temperature coefficient, its voltage drop shrinks when temperatures rise. This reaction often leads to thermal runaway. In contrast, unipolar power switches use a positive temperature coefficient to balance current across the silicon surface.
