A PNP transistor is an electronic switch that uses a small current to control a bigger one. Its main job is to boost or switch electronic signals. Think of a water valve: a small turn of the handle controls a large flow of water. In the same way, a tiny current at the base of a PNP transistor manages a much larger current flowing through it.
This guide explains how a PNP transistor works, how it differs from its NPN cousin, and where you'll find it in everyday devices. You'll learn useful details without getting lost in complicated physics. When you're working with PNP transistors, you'll often see them paired with complementary NPN types in push-pull amplifier stages, but the PNP transistor's unique behavior—where current flows from emitter to collector when the base is pulled low—makes it ideal for high-side switching applications.
Ever wondered how your Arduino or remote control decides to turn things on? The answer often lies in small parts like the PNP transistor, which can safely switch power to loads that share a common ground with your microcontroller.

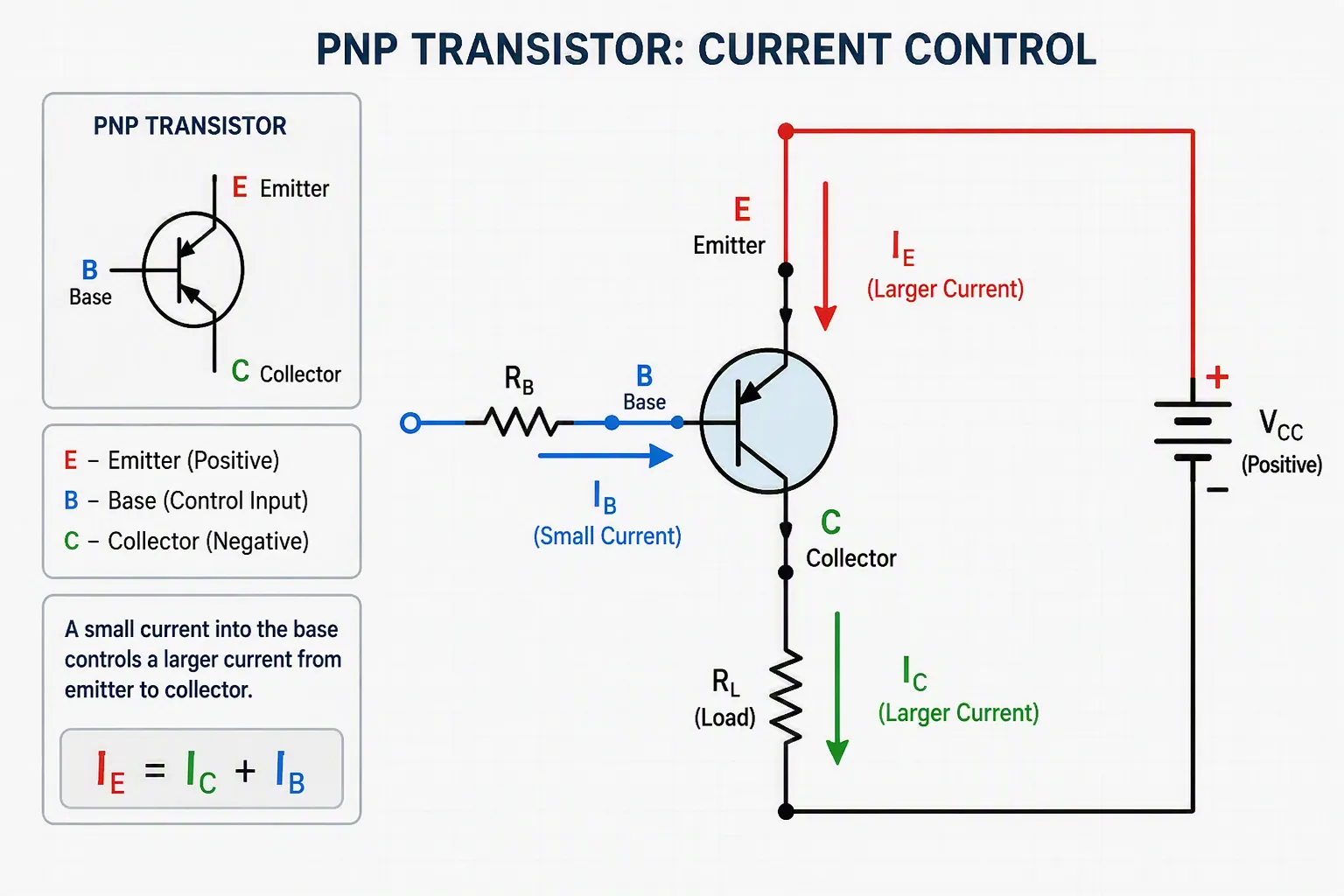

A PNP transistor uses a tiny base current to manage a bigger current flowing from the emitter to the collector.
The PNP structure is made of two P-type layers and one N-type layer, with the base sitting as the thin layer in the middle.
To turn on a PNP transistor, the base voltage needs to be about 0.7 volts lower than the emitter voltage.
PNP transistors are best for high-side switching, where the load is connected to ground.
The symbol for a PNP transistor in a circuit has an arrow on the emitter that points inward.
To test a PNP transistor, use a multimeter to check the diode junctions between the base-emitter and base-collector.
PNP transistors help run motors and valves in factories by working with PLCs to control them.
Always check the datasheet for pinout, and use a base resistor to control current and stop overheating.

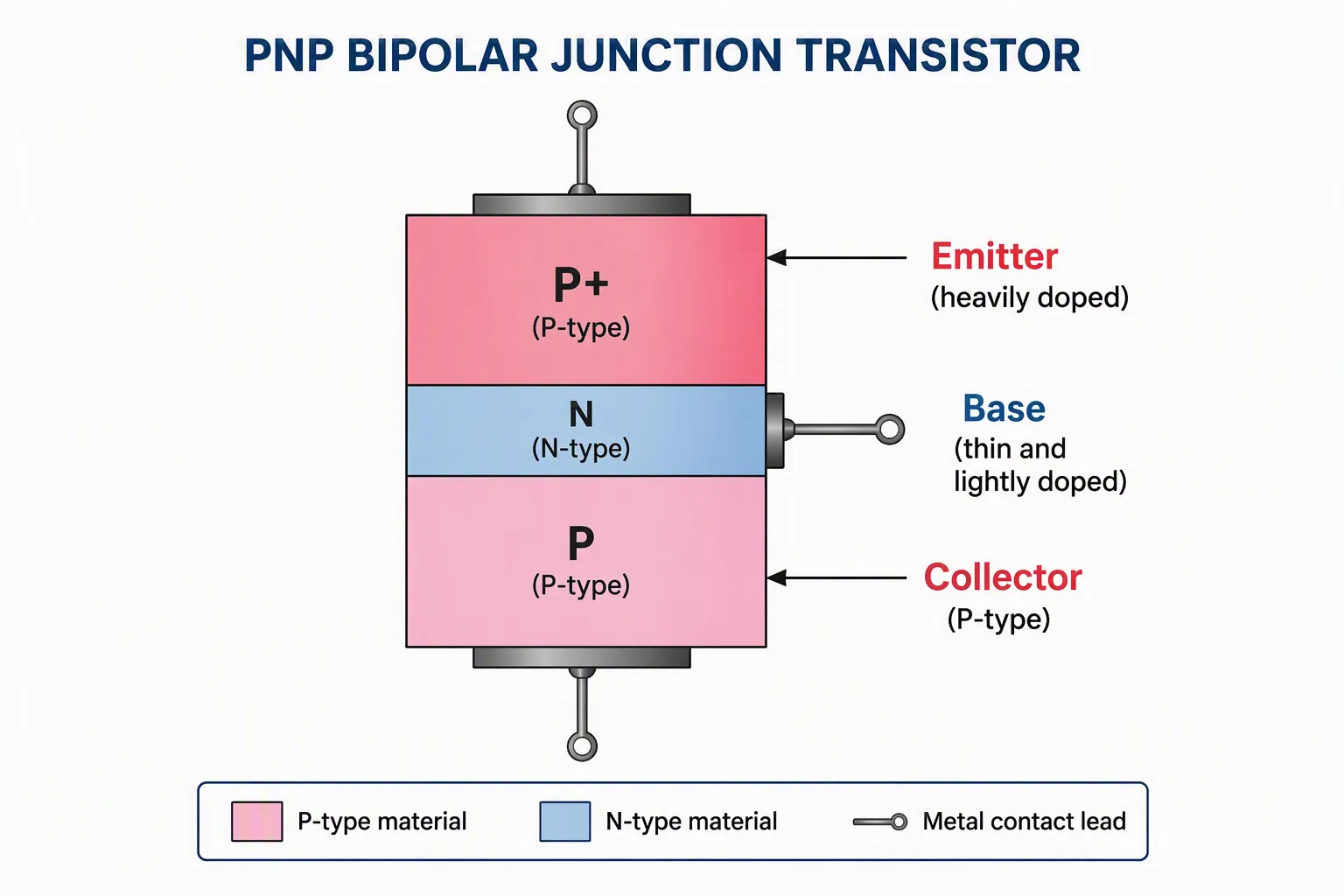

A PNP transistor is part of a group called bipolar junction transistors. The word "bipolar" means it uses two kinds of charge carriers to work. The letters P-N-P show how three semiconductor layers are arranged inside. Each layer has a certain doping level that sets its job. Knowing this setup helps you understand why the PNP acts the way it does in a circuit.
Picture a sandwich with three slices of bread. The top and bottom slices are P-type material. The middle slice is N-type material. This P-N-P stack forms the core of the transistor. Each layer connects to a metal lead, giving you three points to connect with the outside world.
Makers carefully control how much they dope each layer. Doping means adding impurities to change how well a material conducts electricity. The doping level differs for each region, and this difference affects performance.
The emitter has the heaviest doping level of all three layers. This high level means the emitter has a large supply of positive charge carriers, which engineers call holes. Think of the emitter as a tank that holds many of these carriers, ready to move when conditions allow. Its job is to send these holes into the middle layer. Because the emitter is so heavily doped, it can provide a steady flow of carriers without running out quickly.
The base sits in the middle and has the lightest doping level of the three regions. This layer is also very thin physically. The mix of light doping and thinness serves a key purpose. Most holes entering the base from the emitter should pass straight through to the collector rather than getting stuck. If the base were thick or heavily doped, many holes would combine with electrons there, wasting energy and lowering the transistor's effectiveness. The base acts as a gatekeeper. A small current applied to this layer controls the much larger flow moving from emitter to collector.
The collector has a medium doping level, sitting between the emitter and the base in terms of impurity amounts. Its main job is to collect the holes that travel across the base. Because the collector is bigger in physical size than the other regions, it can handle a lot of power dissipation. The medium doping also helps the collector handle higher voltages without breaking down. When you use a PNP transistor as a switch, the collector connects to the load that you want to control.
Every PNP transistor has three terminals so you can connect it to your circuit. The emitter, base, and collector each do a different job. The emitter provides the charge carriers. The base controls their flow. The collector receives them at the end of the trip.
You need to identify these pins correctly before you place the part on a breadboard or solder it into a PCB. Many common PNP transistors come in a package called TO-92, which has a flat front face and three leads sticking out from the bottom. When you hold the transistor with the flat side facing you and the leads pointing down, the pin order follows a standard pattern. The leftmost lead is the emitter. The center lead is the base. The rightmost lead is the collector.
The 2N3906 PNP transistor uses the standard EBC (Emitter-Base-Collector) pin-out in the TO-92 package.
This consistency helps you work faster. Once you learn the pin-out for one TO-92 transistor, you can use that knowledge for many others in the same package.
Schematic diagrams use a special symbol to show a PNP transistor. You will see a circle with three lines coming out. One line connects to the base, which looks like a straight bar in the center. The other two lines connect to the emitter and collector on opposite sides.
The key detail is the arrow on the emitter lead. In a PNP transistor symbol, this arrow points inward toward the base. This inward arrow tells you about current direction.
The arrow on the PNP emitter points inward, and this direction shows which way conventional current is meant to flow. In a PNP transistor, current flows in the opposite direction compared to an NPN — from emitter to collector. The emitter sends out 'holes' (positive charge carriers) which the collector gathers, and the inward arrow visually shows this emitter-to-collector conventional current path.
You can read the arrow as a guide for current. When you see the arrow pointing inward, you know that conventional current enters the emitter and moves toward the base region. Since the PNP structure has P-type emitter and collector with an N-type base, the arrow direction shows that holes flow from the P-type emitter through to the P-type collector. The arrow's inward direction directly shows the conventional current path from emitter to collector, matching the transistor's physical operation.
This visual clue also helps you tell PNP from NPN at a glance. An NPN symbol shows the arrow pointing outward, away from the base. Once you remember this difference, you can read any transistor schematic without confusion. The symbol tells you which way current wants to flow, and that knowledge guides every other choice you make in your circuit design.
Now you understand the structure and symbol of a PNP transistor. The next step is grasping how it actually controls current in a real circuit. This section explains the operational principle in plain terms, using the valve analogy you met in the introduction. You will learn the exact conditions needed to turn the transistor on, and you will see how it behaves in its two main states.
Think of a PNP transistor as a water valve in a pipe system. A small handle controls a large flow of water. In the transistor, a small current at the base controls a much larger current flowing from emitter to collector. This comparison helps you visualize what happens inside the component.
A transistor is a valve in which a diaphragm, controlled by a low-current signal, moves a plunger that affects the current through another section of the pipe. For a bipolar junction transistor like the PNP type, that low-current signal is a constant current at the base terminal.
The valve analogy extends to the three operating regions:
On state: A fully opened valve allows water to flow freely. The transistor acts as a short circuit between collector and emitter.
Off state: A closed valve completely stops water flow. The transistor creates an open circuit between collector and emitter.
Linear control: A valve can be precisely adjusted to control flow rate between fully open and closed. The transistor linearly controls current and acts like a variable, adjustable resistor.
Engineers quantify this valve-like behavior using specific parameters. Transconductance (gm) describes how a small change in base-emitter voltage controls a proportionally larger change in collector current. Current gain (β) shows that a small base current controls a much larger collector current. Output resistance (ro) represents the finite output impedance that prevents the transistor from being a perfect current source. These parameters matter when you design amplifier circuits, though for simple switching applications you mainly need to understand the on and off states.
To understand how pnp transistors work, you need to know about biasing. Biasing means setting the correct voltage conditions at the transistor terminals. For a PNP transistor, you must make the emitter more positive than the base and the collector. This arrangement forward-biases the base-emitter junction and reverse-biases the base-collector junction.
The base-emitter junction behaves like a diode. For a silicon PNP transistor at room temperature, this junction becomes noticeably forward-biased when the voltage between base and emitter reaches approximately 0.6 to 0.7 volts. The base must sit about 0.6 to 0.7 volts below the emitter potential to activate the transistor.
This voltage has a temperature dependency. It decreases by roughly 2 millivolts per degree Celsius as temperature rises. A transistor that turns on at 0.7 volts at room temperature might turn on at 0.6 volts on a hot day. You should account for this variation when designing circuits that operate across temperature ranges.
Once you satisfy the base-emitter voltage requirement, current begins to flow. In a PNP transistor, conventional current flows from the emitter to the collector. The majority charge carriers are holes, which move from the heavily doped emitter through the thin base and into the collector.
Here is the key relationship: a small current flowing out of the base controls a much larger current flowing from emitter to collector. The current gain (β) expresses this ratio. If a transistor has a β of 100, then 1 milliamp of base current can control 100 milliamps of collector current. This amplification makes the transistor useful for both switching and signal amplification.
For switching applications, you operate the PNP transistor in one of two states: cut-off or saturation.
In the cut-off state, the base-emitter voltage stays below the 0.6 to 0.7 volt threshold. No significant current flows from emitter to collector. The transistor behaves like an open switch, blocking current through the load. You achieve this state by keeping the base voltage close to or above the emitter voltage.
In the saturation state, you pull the base sufficiently below the emitter to ensure the transistor turns fully on. The collector-emitter voltage drops to its minimum value. For a common PNP transistor like the 2N3906, the collector-emitter saturation voltage is 0.25 volts. This low voltage means the transistor acts like a closed switch, allowing maximum current to flow through the load.
To ensure saturation, you must supply enough base current. A good rule of thumb is to provide base current equal to one-tenth of the expected collector current divided by the minimum β. This overdrive guarantees the transistor saturates even with variations in temperature and manufacturing tolerances.
Understanding these two states lets you use a PNP transistor as a reliable electronic switch. You control a large current through the load with a small current at the base, just like turning a large water valve with a small handle.
PNP and NPN transistors are like opposites. Their voltages and current directions are completely reversed. Knowing these differences helps you pick the right transistor for your circuit. This section compares both types directly, so you can see when to use a PNP instead of an NPN.
In a PNP transistor, regular current flows from the emitter to the collector. The emitter gives out positive charge carriers named holes. These holes travel across the base and end up at the collector. A small current leaves the base to control the flow.
An NPN transistor works the opposite way. Current goes from the collector to the emitter. Electrons are the main carriers. The base gets a small current to turn on the device. So the main current direction is completely swapped between the two types.
This current transfer is very efficient. For a common low-power signal transistor, 95% to 99% of the emitter current reaches the collector. This number is called the alpha value. It applies to both PNP and NPN transistors, just with the direction changed. So you can trust PNP transistors to send almost all the emitter current to the load.
The circuit symbol gives a quick visual clue. For a PNP transistor, the arrow on the emitter points inward toward the base. For an NPN, the arrow points outward away from the base. Remember this rule, and you can read any schematic quickly.
The biasing voltages are also different. In a common-emitter amplifier, an NPN transistor connects its emitter to ground. The base voltage is about 0.7 to 0.9 volts above the emitter to turn on the device. The collector voltage is higher than both the base and emitter. This sets the correct forward and reverse bias.
A PNP transistor in the same setup connects its emitter to a positive supply. For active-mode operation, the emitter voltage must be higher than the base voltage. The base must be lower than the emitter. And the collector voltage must be even lower than the base. This order is completely opposite to the NPN. You must supply negative voltages compared to the emitter to bias a PNP correctly.
High-side switching means the transistor controls the connection to the positive power supply. The load connects directly to ground. This setup is common when you want to switch power to devices that share a common ground, like sensors or microcontroller circuits.
A PNP transistor is great for high-side switching. Its emitter connects to the positive supply. To turn on the PNP, you pull the base lower than the emitter. The current then flows from the emitter to the collector and through the load to ground. When you want the load off, you bring the base near the emitter voltage.
An NPN transistor works best for low-side switching, where the load connects to the positive supply and the transistor switches the ground path. But in circuits where the load must stay connected to ground, a PNP transistor is simpler and more direct. You only need a small base current to control a large load current. Many industrial machines, including automated food production lines, use high-side PNP switches for reliable control.
High-side switching is a common use for a PNP transistor. You connect the load directly to ground. The device sits between the positive supply and the load. When you turn on the unit, current flows from emitter to collector through the load to ground. This setup works well for LEDs, relays, and small motors that need a permanent ground connection.
Think about driving an LED from a microcontroller. The LED cathode connects to ground. The anode connects to the collector of a PNP transistor. The emitter connects to the positive supply, like 5V. To light the LED, you pull the base low through a resistor. The transistor turns on, and current flows from the supply through the LED to ground. This method protects the microcontroller because the transistor handles the load current, not the logic pin.
A resistor in series with the base limits the base current. You calculate its value from the supply voltage and desired base current. For a typical LED circuit drawing 20mA, a 1k ohm base resistor works well. This value ensures the device saturates fully and the LED receives consistent current.
PNP transistors also work as current sources in logic circuits. Some systems need a steady current to a load without depending on the load resistance. A PNP transistor set up as a current source delivers this stable performance.
You build a simple current source with a PNP transistor, a resistor, and a reference voltage. The emitter connects to the positive supply through the resistor. The base receives a fixed voltage. The collector supplies the output current. As long as the base voltage stays constant, the transistor keeps a nearly constant current through the load. This behavior helps in sensor circuits where you want to power a sensor with a precise current.
In older TTL logic families, these transistors appear in gate output stages. They provide current sourcing when the output drives a high signal. Some mixed-signal designs still use this method when signal quality matters more than power use.
Industrial automation relies on these transistors for reliable switching. Programmable logic controllers (PLCs) use them to control actuators and sensors. The PNP handles the link between the logic controller and the field devices. This standard makes fixing problems easier because the behavior follows a predictable pattern.
Think about a flatbread production line from a company like JINKE MACHINERY. These machines use PLC control systems to manage conveyors, ovens, and packaging stations. The PNP switches power to motor starters and solenoid valves that control dough flow and baking temperature. When you turn on the conveyor, the transistor activates the motor. The high-side switching ability lets the PLC directly drive loads that share a common ground. This design makes wiring simpler and cuts down on installation mistakes.
The industrial setting demands parts that handle voltage spikes and electrical noise. PNP transistors rated for industrial use often include built-in protection features. They can switch inductive loads like relays and contactors without failing. This toughness makes them a standard pick in automated food processing lines where downtime costs money.
Using these parts in applications gives you a simple way to control power with small logic signals. Whether you light an LED, source current for a sensor, or run an industrial oven, the transistor provides reliable switching.
Testing a PNP transistor lets you confirm it works before you put it into a circuit. You only need a digital multimeter with a diode test mode. The process takes just a few minutes and helps you avoid troubleshooting a dead component later. This section walks you through the steps to identify the pins, check the internal junctions, and verify the switching action.
If you have a datasheet, the pinout is easy to find. But sometimes you work with a loose or unmarked transistor. A multimeter in diode test mode helps you identify the base terminal quickly.
Start by labeling the three unknown pins as Pin 1, Pin 2, and Pin 3. Set your multimeter to diode test mode. Connect the black (negative) probe to Pin 1 and the red (positive) probe to Pin 2. Note the reading. Then move the red probe to Pin 3 and note that reading. If both measurements show a forward voltage drop between 0.6 and 0.7 volts, then Pin 1 is the base terminal and the transistor is a PNP type. If you do not see that reading, repeat the steps with the black probe on Pin 2, then on Pin 3, until you find one common pin that conducts to both of the others. That common pin is the base.
Once you identify the base, you still need to tell the collector from the emitter. In most small-signal PNP transistors, the collector pin handles more heat and the emitter is the one that sends out charge carriers. For a known part like the 2N3906, you can look up the datasheet. But for an unknown part, the diode test also helps. The base-collector junction usually shows a slightly lower forward voltage drop than the base-emitter junction. You can compare the two readings to guess which pin is which. In practice, many circuits still work even if you swap collector and emitter, though the transistor performs worse.
A PNP transistor contains two diode junctions inside: one between the base and emitter and another between the base and collector. Each junction should behave like a regular silicon diode. Testing them confirms the transistor is not damaged.
For a PNP transistor, forward bias means the base is negative relative to the emitter and collector. Connect the black (negative) probe to the base pin and the red (positive) probe to the emitter pin. A good PNP transistor shows a reading between 0.6 and 0.7 volts. Then move the red probe to the collector pin. You should see a similar reading. These two forward voltage drops tell you the junctions are intact.
Next, reverse the probes. Connect the red (positive) probe to the base pin and the black (negative) probe to the emitter pin. The meter should show "OL" or "Open," meaning the junction blocks current in the reverse direction. Repeat this with the collector pin. If you see a forward voltage drop when the probes are reversed, the transistor is shorted and you must replace it. If you see "OL" in both directions for one junction, that junction is open and the part is also defective.
The diode test tells you the junctions are healthy. But it does not prove the transistor amplifies or switches. You need to verify the switching action with a simple test.
Build a simple PNP transistor circuit on a breadboard. Connect the emitter to the positive rail of a 5V supply through a 100-ohm resistor. Connect the collector to an LED and a 220-ohm resistor to ground. Leave the base unconnected for now. The LED stays off because no base current flows. This confirms the transistor stays in the cut-off state when the base floats.
Now connect a 10k-ohm resistor from the base to ground. The LED should turn on. This happens because pulling the base low with respect to the emitter forward-biases the base-emitter junction. The transistor saturates and current flows from emitter to collector through the LED. If the LED lights up, the PNP transistor switches correctly. If the LED stays off, the transistor may be defective or you may have identified the pins incorrectly. You can also add a switch between the base resistor and ground to test quick on-off action. This test confirms the transistor works as a reliable switch in your circuit.
A PNP transistor has a P-N-P structure. Current moves from the emitter to the collector. A small current that leaves the base controls a much bigger current. This is the main way every pnp transistor works. Unlike NPN transistors, pnp transistors need a base voltage that is lower than the emitter. They work best for high-side switching, where the load connects to ground. Now you know the basics of PNP transistors. Grab a pnp transistor and a breadboard. Build a simple switching circuit. Watch as a small base current controls a large load current. You will soon design your own circuits with confidence.
The main difference comes down to current direction. In a PNP transistor, current flows from the emitter to the collector. In an NPN, current flows the opposite way. Also, a PNP turns on when you pull the base low, while an NPN needs the base pulled high.
Check the datasheet first for your specific part. For a TO-92 package like the 2N3906, hold the flat side toward you with leads pointing down. The left pin is the emitter, the center is the base, and the right pin is the collector. A multimeter in diode mode can also help identify pins.
Heat usually means too much current flows through the device. Check your base resistor value. If the base current is too high, the transistor conducts more than needed. Also verify the collector current stays within the maximum rating listed in the datasheet.
No. PNP transistors work only with DC power. They require a consistent voltage polarity to operate correctly. For AC switching, you need a relay, a triac, or a solid-state relay instead. These components handle the changing voltage direction without damage.
For a silicon PNP, the base must sit about 0.7 volts below the emitter voltage. This forward-biases the base-emitter junction. Remember this voltage changes with temperature. It drops roughly 2 millivolts per degree Celsius as the transistor warms up.
Check your biasing. The emitter must connect to the positive supply. The base needs to sit lower than the emitter by at least 0.7 volts. If you pull the base high or leave it floating, the transistor stays off. Verify your connections match the pinout.
Saturation means the transistor turns fully on. The collector-emitter voltage drops to its minimum value, around 0.25 volts for a common part like the 2N3906. The transistor acts like a closed switch, allowing maximum current to flow through your load.
