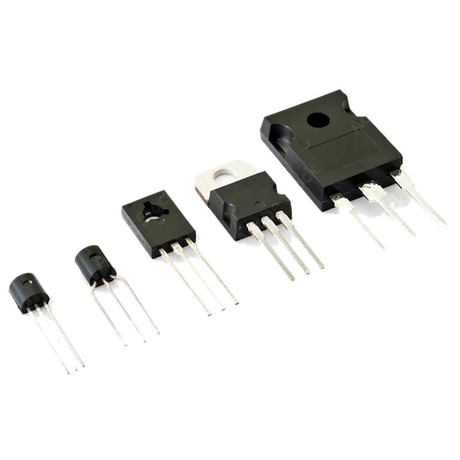

Understanding npn vs pnp transistors helps you choose the right bipolar junction transistor for your circuit design. The main difference lies in charge flow and circuit placement. An npn transistor sinks current to ground using fast electron mobility. It turns on when you send a high base logic signal. Conversely, a pnp transistor sources current from the power supply using hole mobility. It turns on when you send a low base signal.
Use this rule of thumb for your designs. Choose an npn for low-side switching between your load and ground. Choose a pnp for high-side switching between the voltage supply and your load. These bipolar junction transistors deliver reliable switching control.
NPN transistors turn on with high power signals and control electric current on the negative side.
PNP transistors activate using low voltage signals, and they control electrical current on the power supply side.
Electrons move much quicker than holes, which makes NPN transistors superior for speedy switching.
Pull-up and pull-down resistors keep the base signal steady to prevent unwanted turn-ons.
Using both transistor types together makes powerful sound boosters and dependable control systems for factory sensors.
Bipolar junction transistors use layered semiconductor materials to control power signals in modern circuits. Learning how npn and pnp transistors work means checking their inner makeup and particle habits. Each bipolar junction transistor has three main connection parts: the emitter, base, and collector. These three parts link two inner boundary layers to create a working semiconductor part.
Diagram drawings use clear visual signs to show these parts on your blueprints. Check the arrow on the emitter line in any circuit drawing. An npn model uses an arrow that points out and away from the base layer. A handy phrase to recall this drawing pattern is "Not Pointing iN". On the other hand, a pnp model uses an arrow that points inward right toward the base layer. You can recall this setup with the phrase "Pointing iN".
An npn transistor places a thin P-layer right between two outer N-layers. Electricity travels across two inner boundary areas named a PN junction and an NP junction. Free electrons act as the main current carriers inside this exact physical layout. You send a positive voltage to the base compared to the emitter. This small forward voltage pushes electrons past the first boundary layer into the middle base area. The collector then pulls these moving charges across the second boundary layer toward your positive power source.
Silicon crystal traits strongly control how fast these internal particles move around:
Carrier Type | Room Temperature Mobility Value |
|---|---|
Electron Mobility | ≤ 1400 cm²V^{-1}s^{-1} |
Hole Mobility | ≤ 450 cm²V^{-1}s^{-1} |
Electron speed in silicon at room temperature is about 2.7 to 3 times faster than hole speed under equal setup states. Faster particle motion gives the npn transistor a big leg up for quick switching jobs. Fast charge movement cuts down signal wait times along active circuit tracks. Techs often pick the npn model for quick signal work across computer systems.
A pnp transistor places a thin N-layer right between two outer P-layers. Positive holes act as the main current carriers inside the material during use. Current flows through the device when you drop the base voltage below the emitter level. To turn on a pnp transistor used as a high-side switch, the emitter voltage must stay about 0.7 V higher than the base. This power setup lets positive charges cross each internal boundary line with ease.
The actual movement of positive holes creates key circuit differences:
Impact on Switching Speed: Since PNP devices rely on holes as main charge carriers—which move much slower than free electrons—their total switching speed is lower and slower than NPN units.
Impact on Propagation Delay: Basic laws of physics show that slower particle speeds cause longer signal lag times inside pnp switching circuits.
Bias Direction Requirements: Electrical current streams out from the collector terminal down toward your ground path.
Slower particle motion directly changes total switching output during fast signal shifts. Even so, pnp units work great at feeding power straight from positive power rails in modern twin-transistor circuits. You can easily join both types to build smooth push-pull amplifier setups and balanced control circuits for everyday factory uses.
You must apply the correct voltage levels to control current flow through a semiconductor device. Electric circuits use two main circuit topologies to turn electrical loads on or off. You can pick low-side switching or high-side switching based on your operational circuit needs. An npn transistor sits between the electrical load and ground to sink current safely. A pnp transistor sits between the positive power supply rail and the load to source current. Both bipolar junction transistors require specific base voltage levels to control the inner semiconductor junction properly.
In a low-side switching topology, you connect your load directly to the positive power supply rail. The npn transistor connects between the load and ground. To turn on the switch, you must apply a high logic signal to the base terminal. This base voltage must stay higher than the emitter voltage. This positive voltage differential forward-biases the internal base-emitter junction. Current then flows from the base to the emitter, allowing a much larger driving current to pass from the collector down to ground.
Floating base signals often cause circuit operational errors. An open signal wire leaves the base floating, which can cause unintended load activation. You can add pull-down resistors to lock the base signal firmly to ground during idle states. Microcontrollers that drive discrete outputs benefit greatly from this safety design setup.
Application Context | Recommended Pull-Down Value | Function / Impact on Circuit |
|---|---|---|
General NPN Base Pull-Down | 100kΩ to 470kΩ | Pulls base signal to ground when disconnected, preventing floating states and unintended load activation. |
NPN Low-Side Switching (e.g., 2N2222) | 470kΩ (with 5.6kΩ series resistor) | Drops base voltage to approximately 0.14V during LOW state to guarantee a complete cutoff. |
Industrial control systems rely heavily on npn outputs to create reliable sinking current paths for discrete outputs.
In a high-side switching configuration, you connect the pnp transistor directly between the positive power voltage rail and your electrical load. High-side current sourcing keeps the load continuously grounded when the main power switch stays turned off. To activate this setup, you send a low logic signal to the base connection. The base voltage must drop below the emitter voltage. This voltage differential turns on the device and allows current to stream straight out to your connected load. You can also connect a pull-up resistor between the base and power rail to keep the switch off when idle.
Engineers compare noise resilience levels when choosing between npn and pnp outputs for automated control lines:
Metric / Parameter | Low-Side NPN (Sinking) | High-Side PNP (Sourcing) |
|---|---|---|
Noise Immunity Level | Superior / Higher | Inferior / Lower |
Trigger Threshold | Around 70% of the supply voltage | Near 0V reference |
Noise Margin (24V System) | Approximately 16V margin to threshold | Roughly 0V margin to threshold |
Susceptibility to Noise | High resilience against positive ground-referenced voltage spikes | Vulnerable to false activations from positive voltage transients |
A pnp supply circuit gives you clear safety benefits because turning off the switch removes voltage from the load wires completely. Understanding how each switching transistor controls voltage helps you build stable, highly reliable electronic control systems.
You can combine an npn transistor and a pnp transistor to build a efficient complementary push-pull amplifier. This practical circuit pairs both transistor types to manage alternating current audio signals smoothly. The npn transistor handles the positive half of the input signal wave, while the pnp transistor conducts during the negative half.
Input Signal → NPN Transistor (Positive Half) → Output Signal
PNP Transistor (Negative Half)
This balanced push-pull setup boosts overall signal amplification without causing heavy power loss or thermal drift. You achieve clean audio signal amplification because each device shares the electrical workload evenly. Matching these different types of outputs keeps your power circuit efficient and stable across various operational temperatures.
Industrial machinery relies on precise control logic and sensor interfaces to operate automated equipment safely. You will encounter discrete outputs configured as either sinking or sourcing channels on Programmable Logic Controller (PLC) input modules.
Aspect | PNP (Sourcing) Sensors | NPN (Sinking) Sensors |
|---|---|---|
Signal Wiring Behavior | Outputs a positive (+) active signal; switches the positive voltage side of the load. | Outputs a negative (-) active signal; switches the negative/ground side of the load. |
North American Adoption | Preferred by automotive suppliers; increasingly popular in newer installations. | Historically paired with sinking PLC inputs (Allen-Bradley style). |
European Adoption | Predominant standard driven by CE marking and safety grounding requirements. | Rarely utilized compared to PNP standards. |
Asian Adoption | Experiencing growing adoption due to European market influences. | Traditional standard for Japanese equipment (e.g., Omron, Mitsubishi). |
Your specific application determines whether you select npn outputs or pnp outputs for industrial switching jobs.
PNP Wiring Setup: Connects to a sinking PLC input unit, which finds an ON state using a +24 Vdc signal from the active sensor.
NPN Wiring Setup: Pairs with a sourcing PLC input unit, which logs an ON state when the active sensor pulls the line down to 0 Vdc.
Sales Availability: PNP sensors fill North American and European supply stocks, while NPN models stay common in older or imported Asian tools.
Selecting the proper semiconductor components ensures long-term operational success for factory automation systems. Dongguan Merry Electronic Co., Ltd (MeiZhao Electronic) manufactures high-performance transistors, rectifiers, and power ICs certified under ISO9001 and IATF16949 quality standards. Their reliable discrete outputs and rugged semiconductor devices deliver excellent switching efficiency across demanding industrial control, automotive, and consumer electronics applications.
Understanding npn vs pnp transistors ensures optimal circuit efficiency. An npn transistor uses fast electron carriers for low-side current sinking. A pnp transistor relies on hole carriers for high-side power control. Pairing both unit types in complementary setups gives you efficient signal amplification and robust switching performance across modern applications.
Follow this simple checklist when you select every discrete transistor for your circuit board:
Evaluate drive logic levels for correct npn and pnp turn-on signals.
Verify required switching speeds for your specific operational load.
Source reliable parts from a trusted semiconductor manufacturer like MeiZhao Electronic to ensure long-term device stability.
NPN transistors pull current down using quick electrons. PNP models push current out using slower hole movements. Sending a high logic signal turns on NPN parts. In contrast, sending a low logic signal turns on PNP parts.
Electrons travel faster than holes inside silicon. Quick charge movement cuts down lag times along active circuit lines. Picking NPN parts helps you get faster switching speeds and clear logic responses in high-speed digital designs.
You turn on a PNP transistor by applying a low voltage signal to its base pin. That base voltage must sit below the emitter line level. This voltage gap opens the internal junction to send power straight to your load.
An open base pin picks up stray electrical noise from nearby wires. That extra noise often triggers unwanted load activation. Adding pull-up or pull-down resistors locks your input signals to keep parts steady during idle times.
