0.5A 80V SOD123 Surface Mount Schottky Barrier Rectifier MBR0580S1-7

Description and Applications
This MBR0580S1 is a single rectifier packaged in SOD123. Ideally suited for low voltage, high frequency rectification or as freewheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. Typical applications are AC-DC and DC-DC converters, reverse battery protection, and "O-ring" of multiple supply voltages and any other application where performance and size are critical.

Features and Benefits
Low Forward Voltage (VF) Minimizes Conduction Losses and Improves Efficiency
Guard Ring Die Construction for Transient Protection
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device

Mechanical Data
Case: SOD123
Case Material: Molded Plastic, "Green" Molding Compound; UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.01 grams (Approximate)

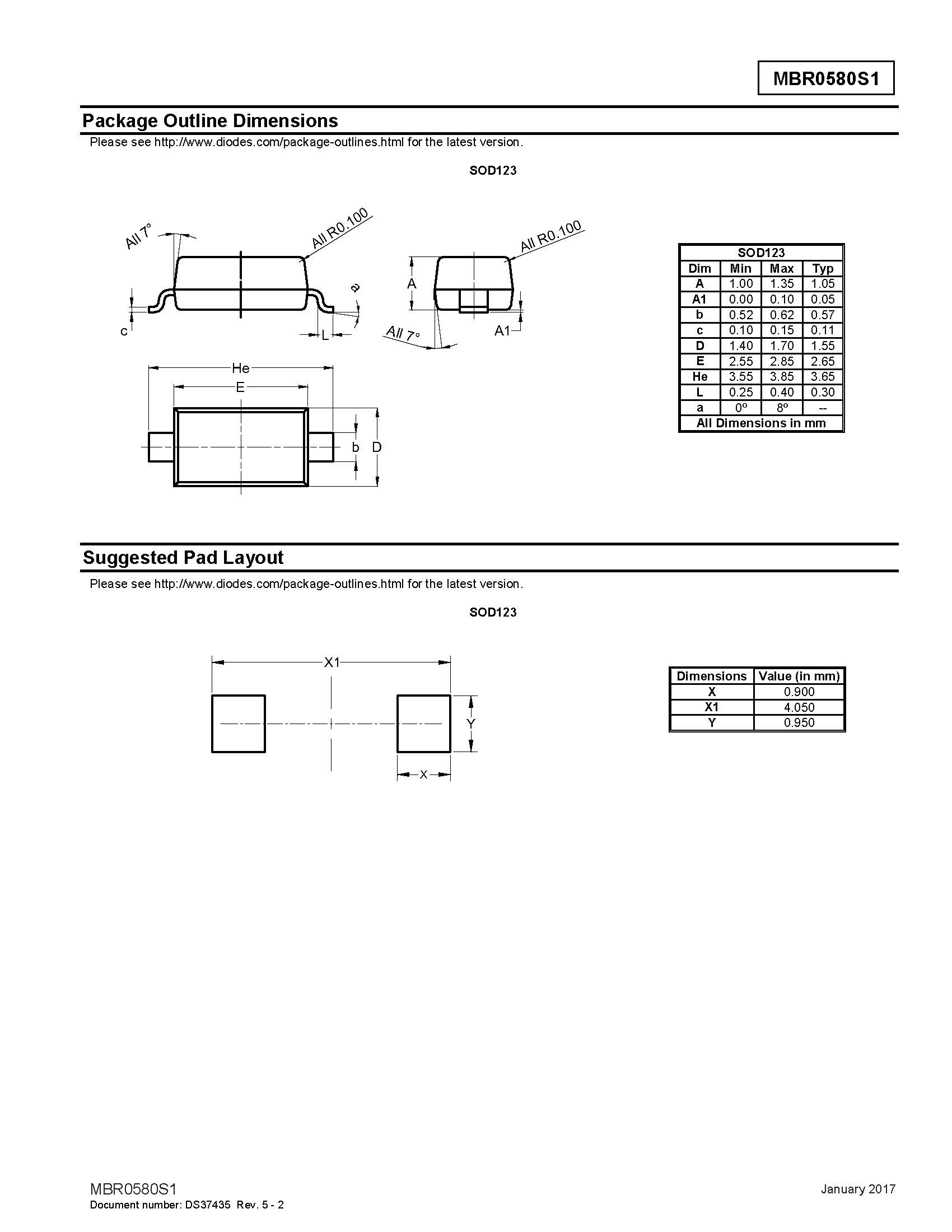

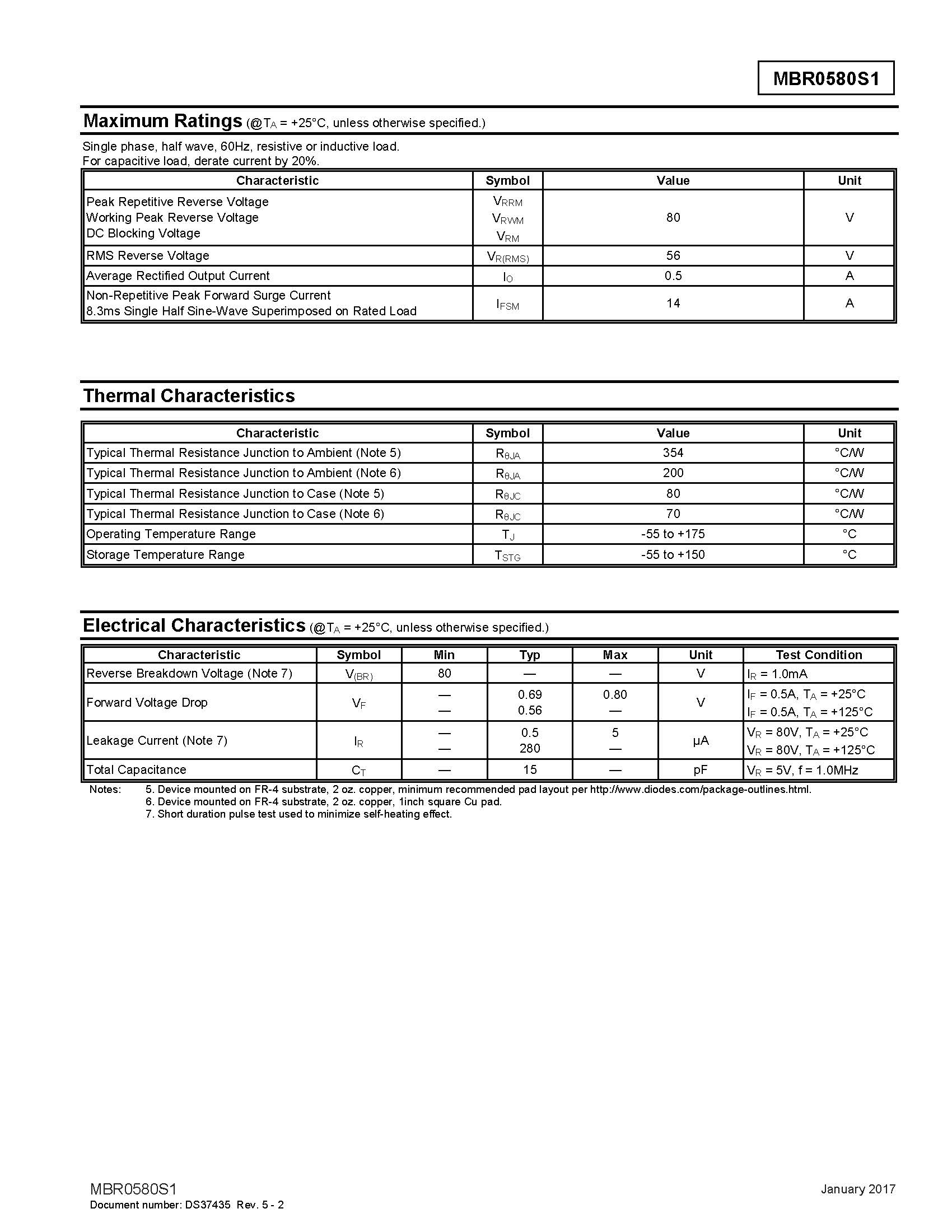

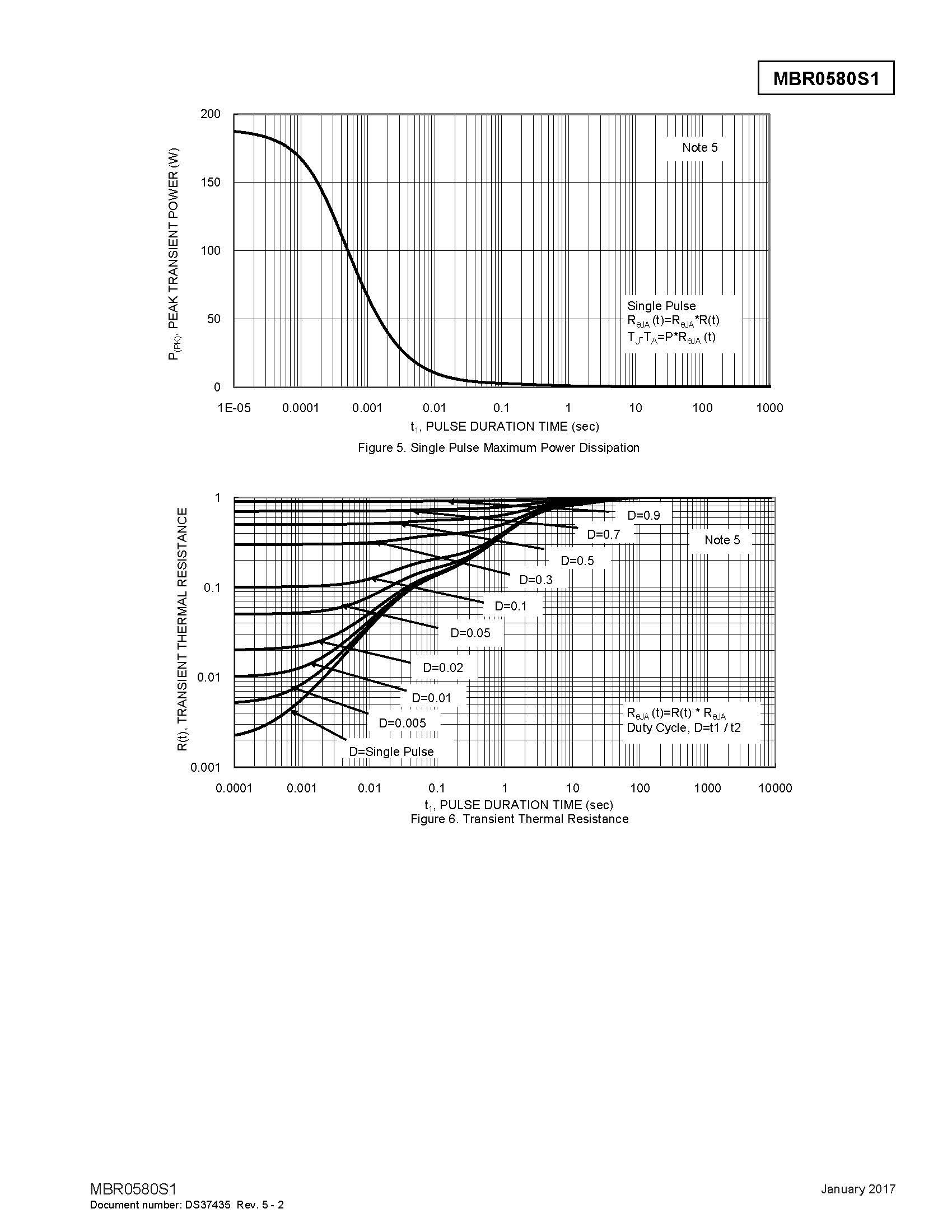

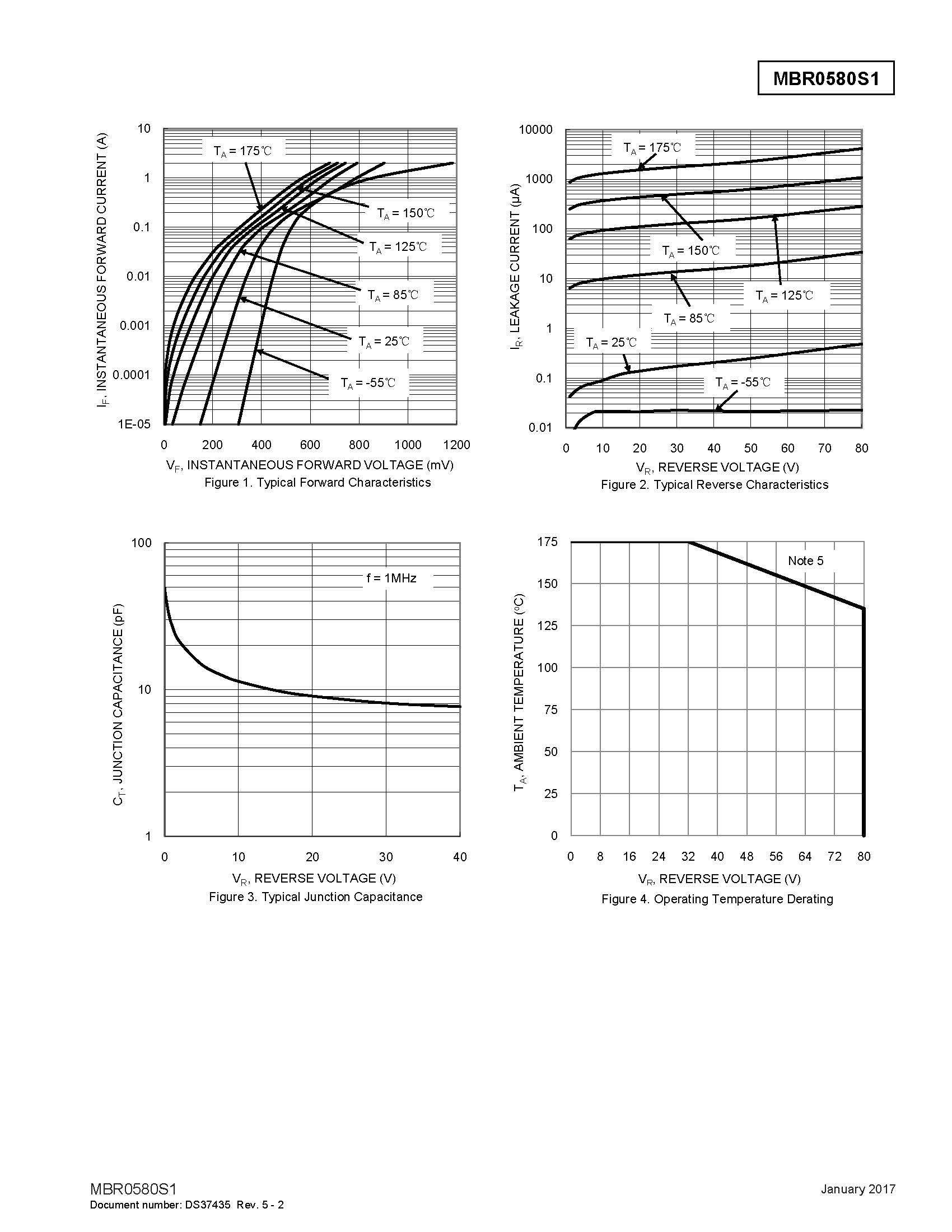

MBR0580S1.pdf

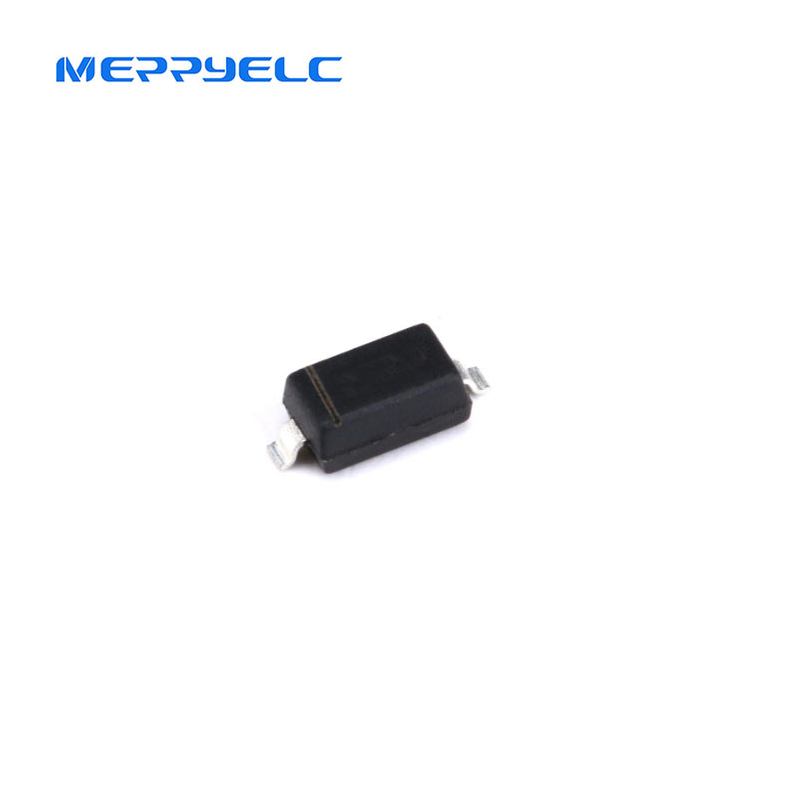

Detailed photos
