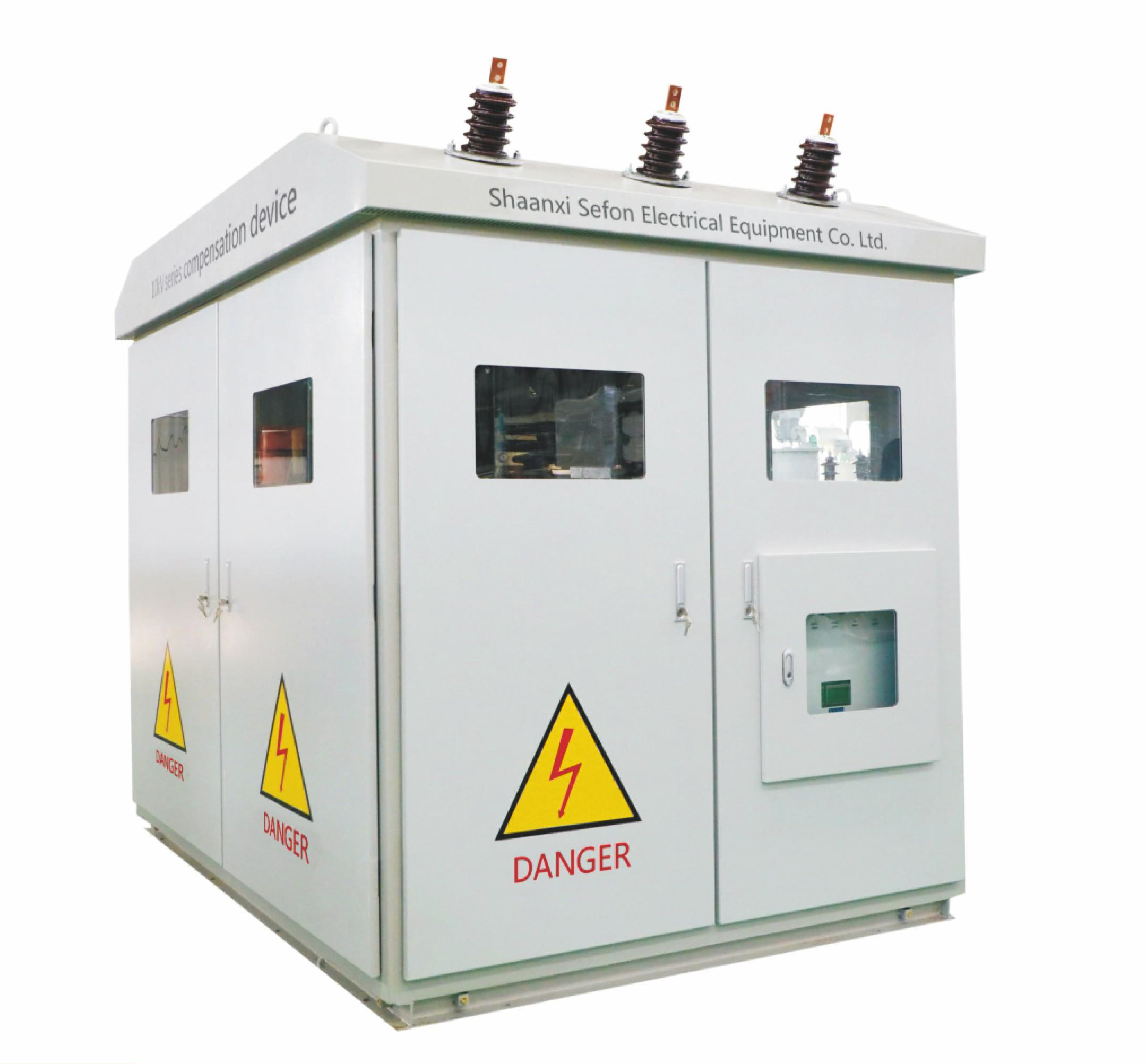

10KV series compensation device automatic step voltage regulator series

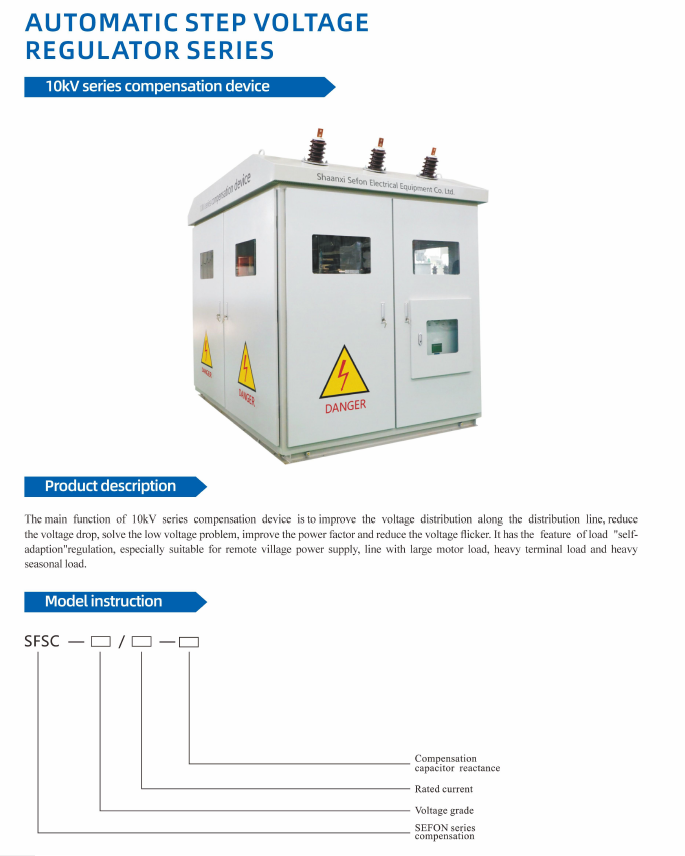

Overview
The main function of 10kv series compensation device is to improve the voltage distribution along the distribution line, reduce the voltage drop, solve the low voltage problem, improve the power factor and reduce the voltage flicker. it has the feature of load" self-adaption "regulation, especially suitable for remote village power supply, line with large motor load, heavy terminal load and heavyseasonal load.
Configuration & working principle
-During the operation of the line, the line itself has a certainresistance and reactance. In the process of transmitting electricenergy, the line will produce a certain voltage drop and powerloss due to the flow of current. When the transmitted electricenergy is greater, the greater the current flowing through the wire,the greater the loss on the wire. The greater the loss, the greaterthe voltage drop, so the voltage at the end will be lower.
Features
- It can bead aptively adjusted according to the line loadchange. The problem of "weak output"of parallel compensationdevice under low voltage is avoided.
- It improves the power factor of the line, reduces the loss andimproves the transmission power of the line when solving the lowvoltage problem.
- It can effectively reduce or even cancel the voltage flickercaused by the starting of inductive load of motor on the line, andimprove the voltage quality.
- Automatically bypass capacitors when fault occurs, andautomatically switch on after a delay when the fault disappears.Applicable to reclosing, light load, resonance, overcurrent andovervoltage, ete. Improve automation and stability.
Name1
Name2
Name1
Name2
Name1
Name2
Name1
Name2
