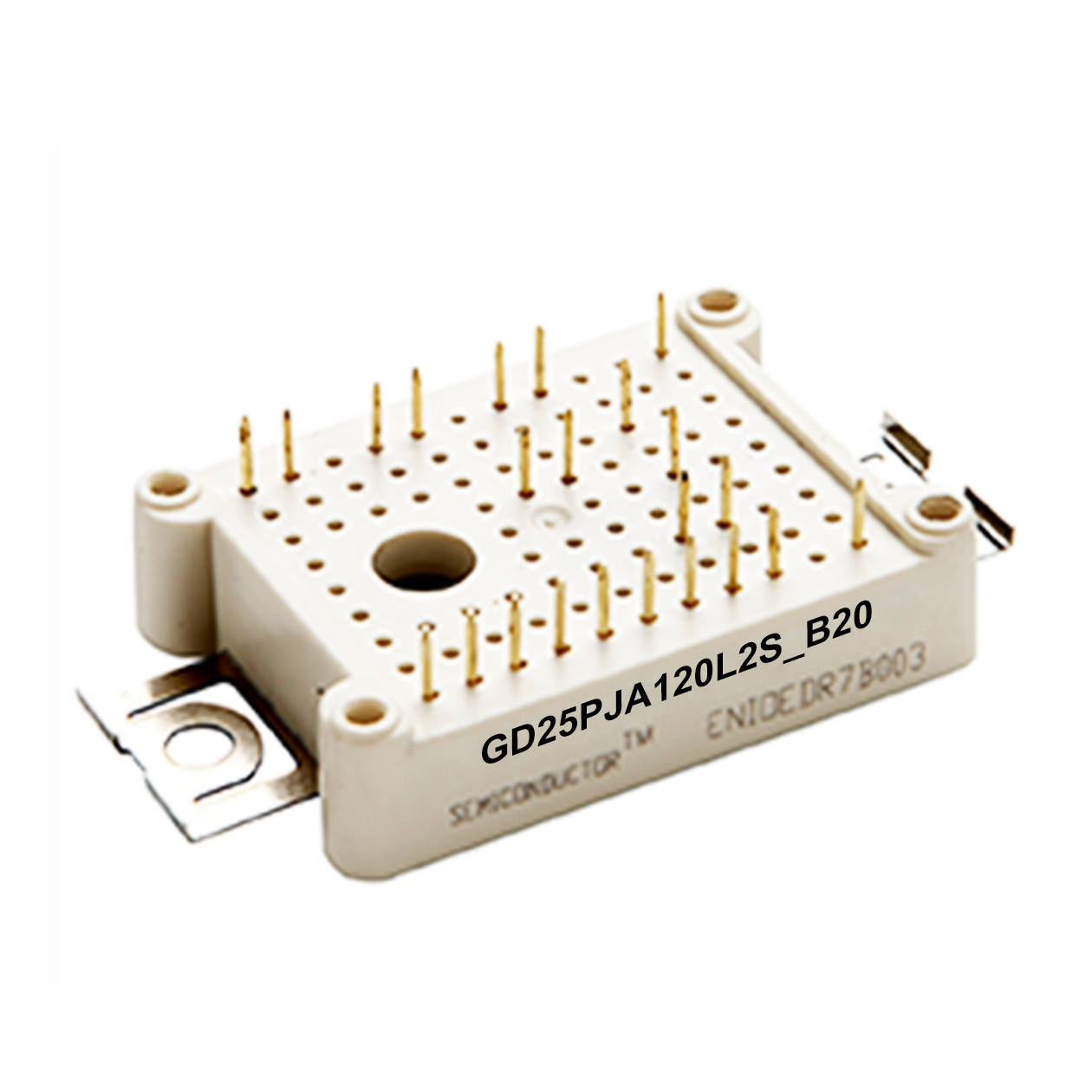

1200V/25A IGBT Trench-FS Gen2, L2, GD25PJA120L2S_B20

1200V/25A IGBT Trench-FS Gen2
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD25PJA120L2S_B20

  • Merry

1200V/25A IGBT Trench-FS Gen2, L2, GD25PJA120L2S_B20

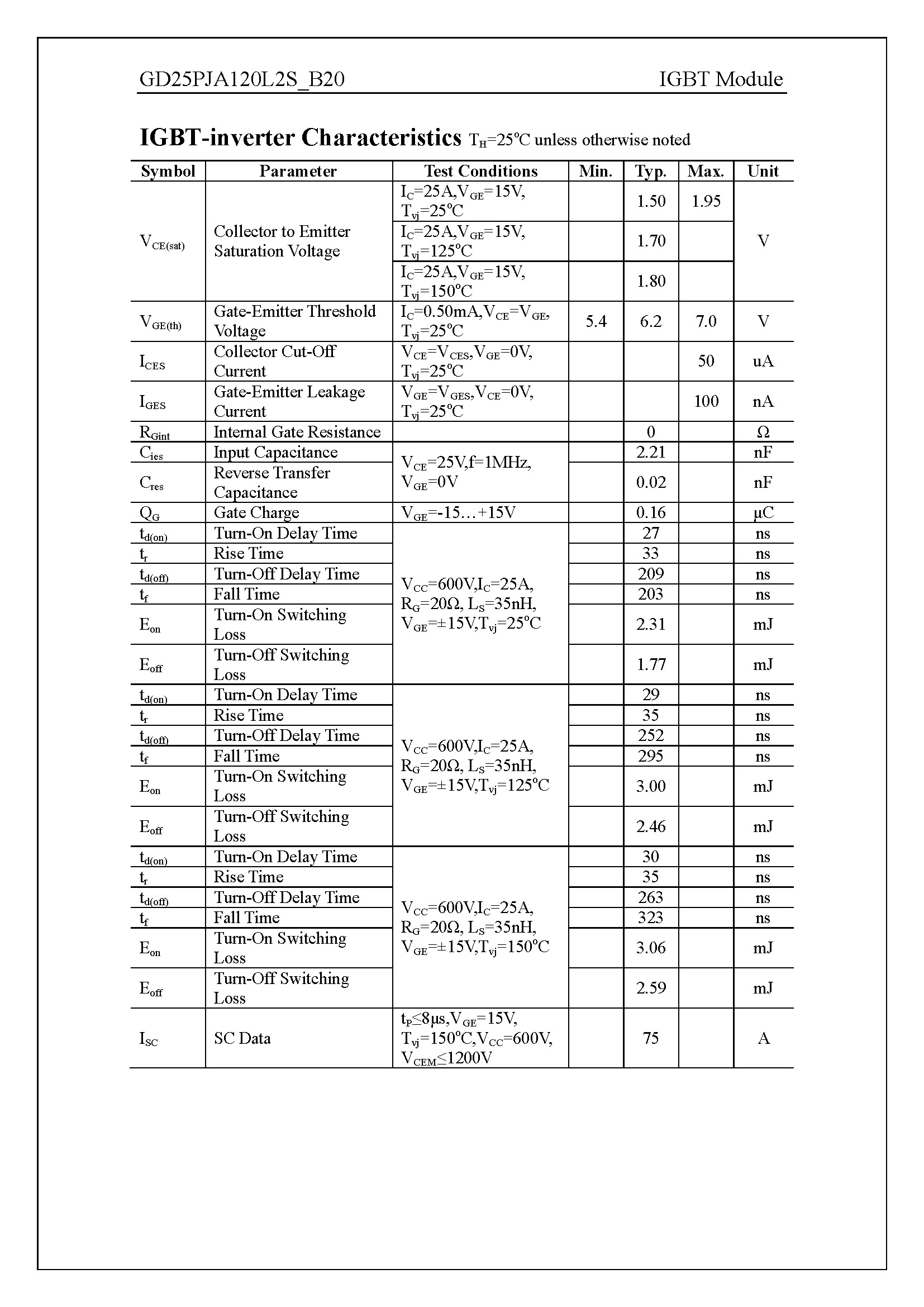

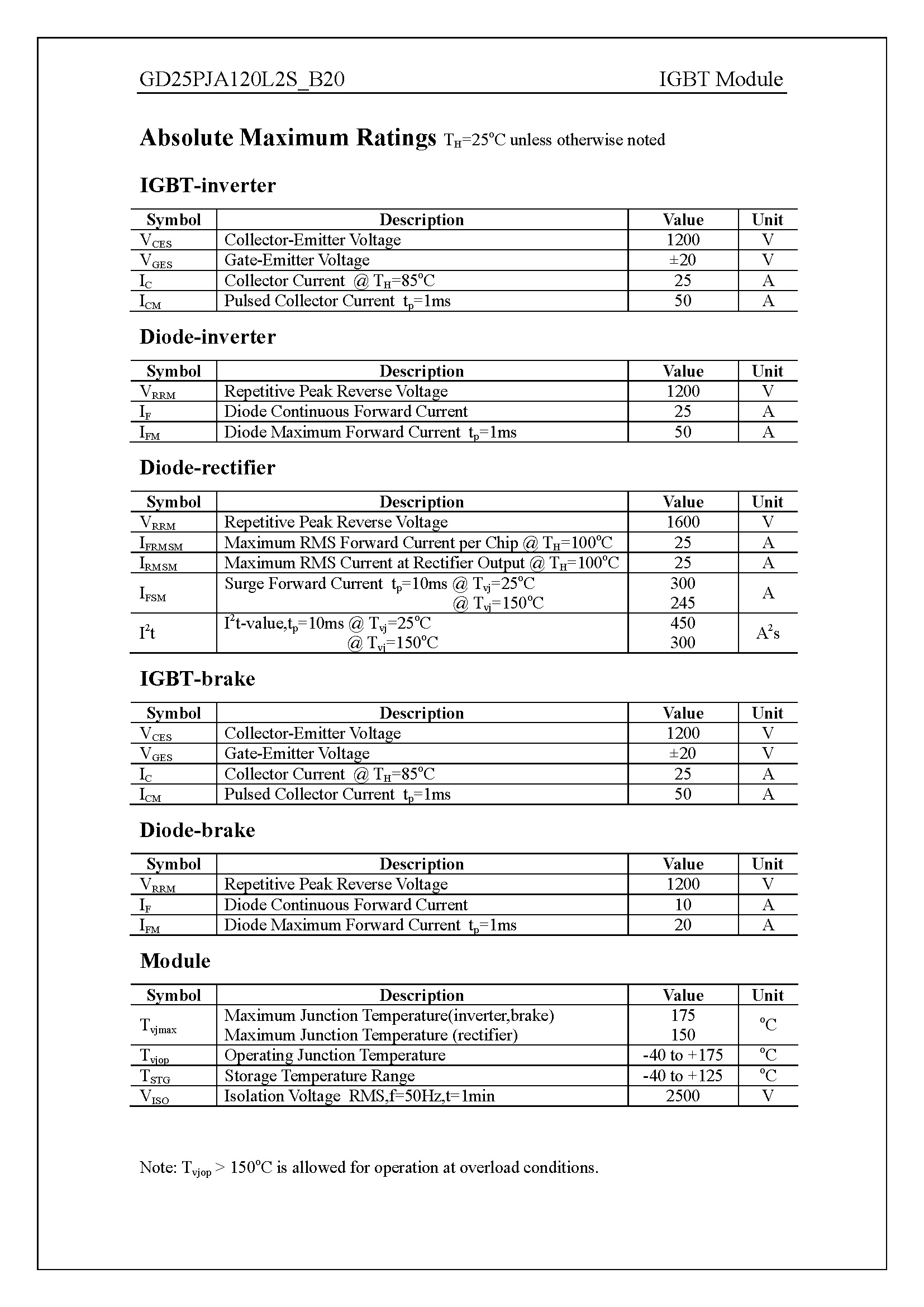

Package: L2
Rated Current: 25A
Chip Type: Trench-FS Gen2
Rated Voltage: 1200V
Circuit Structure: PIM
Hallmark:


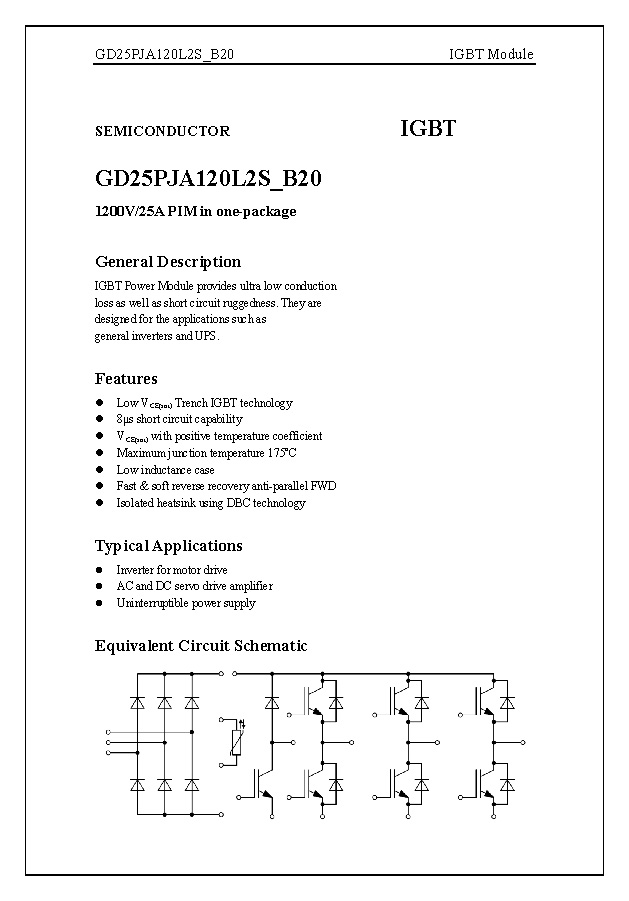

Features :
- Low VCE(sat) Trench IGBT technology
- 8μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated heatsink using DBC technology

Typical Applications :
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply
