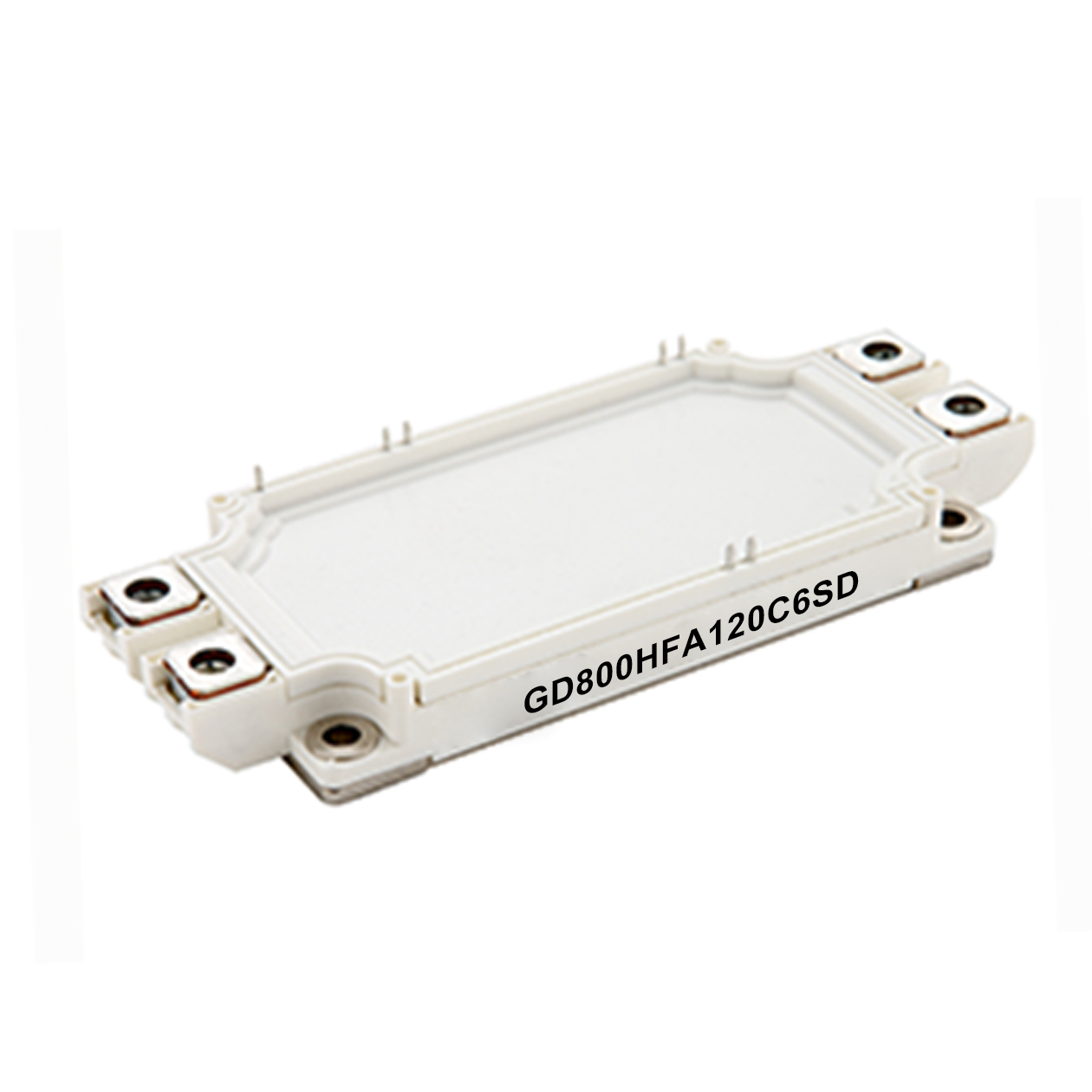

1200V/800A IGBT Trench-FS Gen3, C6.1, GD800HFA120C6SD

1200V/800A IGBT Trench-FS Gen3
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD800HFA120C6SD

  • Merry

1200V/800A IGBT Trench-FS Gen3, C6.1, GD800HFA120C6SD
Package: C6.1
Rated Current: 800A
Chip Type: Trench-FS Gen3
Rated Voltage: 1200V
Circuit Structure: Half Bridge
Hallmark: Flat Substrates


Features :
- Low VCE(sat) Trench IGBT technology
- Short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology

Typical Applications :
- Hybrid and electric vehicle
-Inverter for motor drive
- Uninterruptible power supply

GD800HFA120C6SDName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

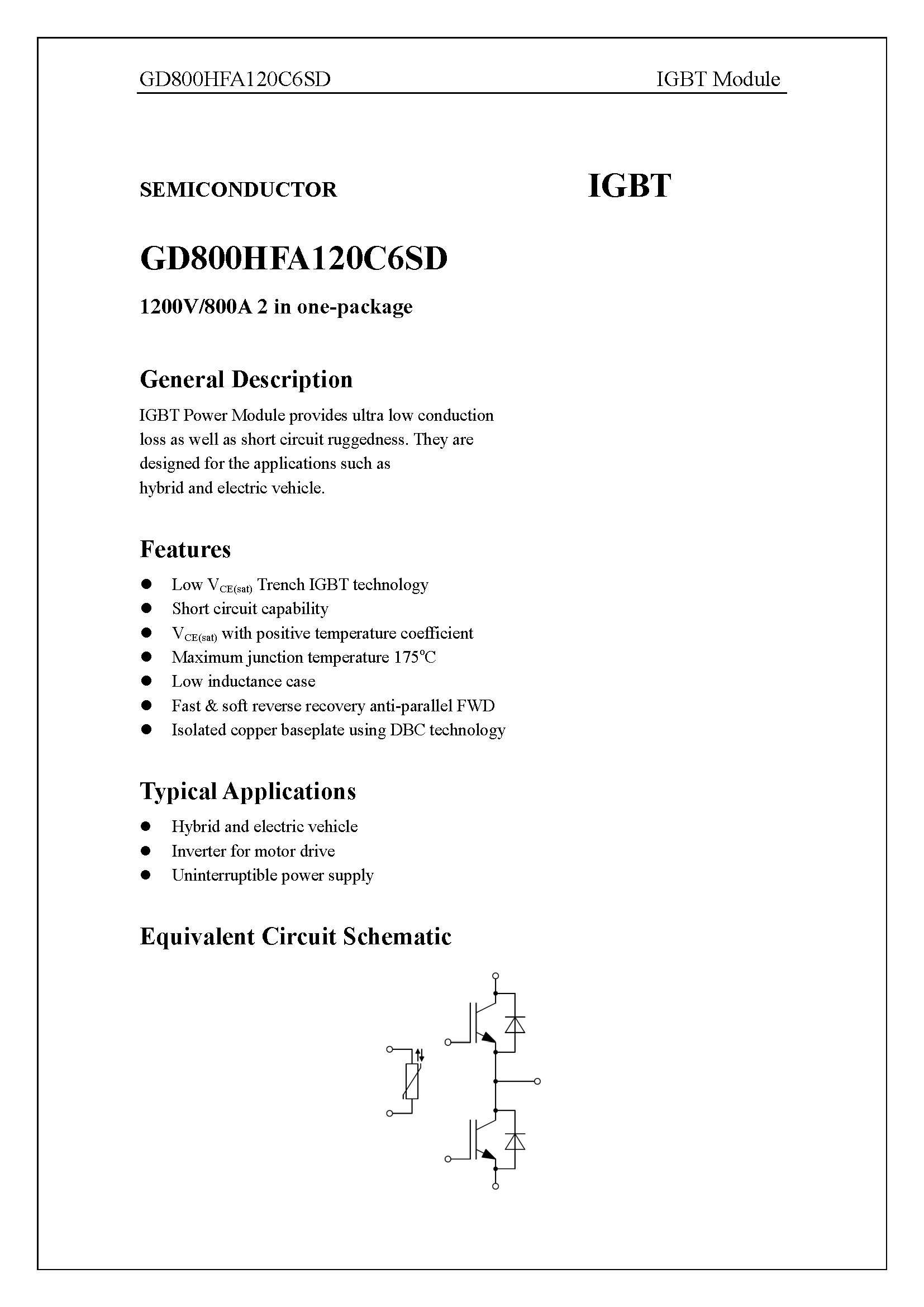

GD800HFA120C6SD-1_页面_1

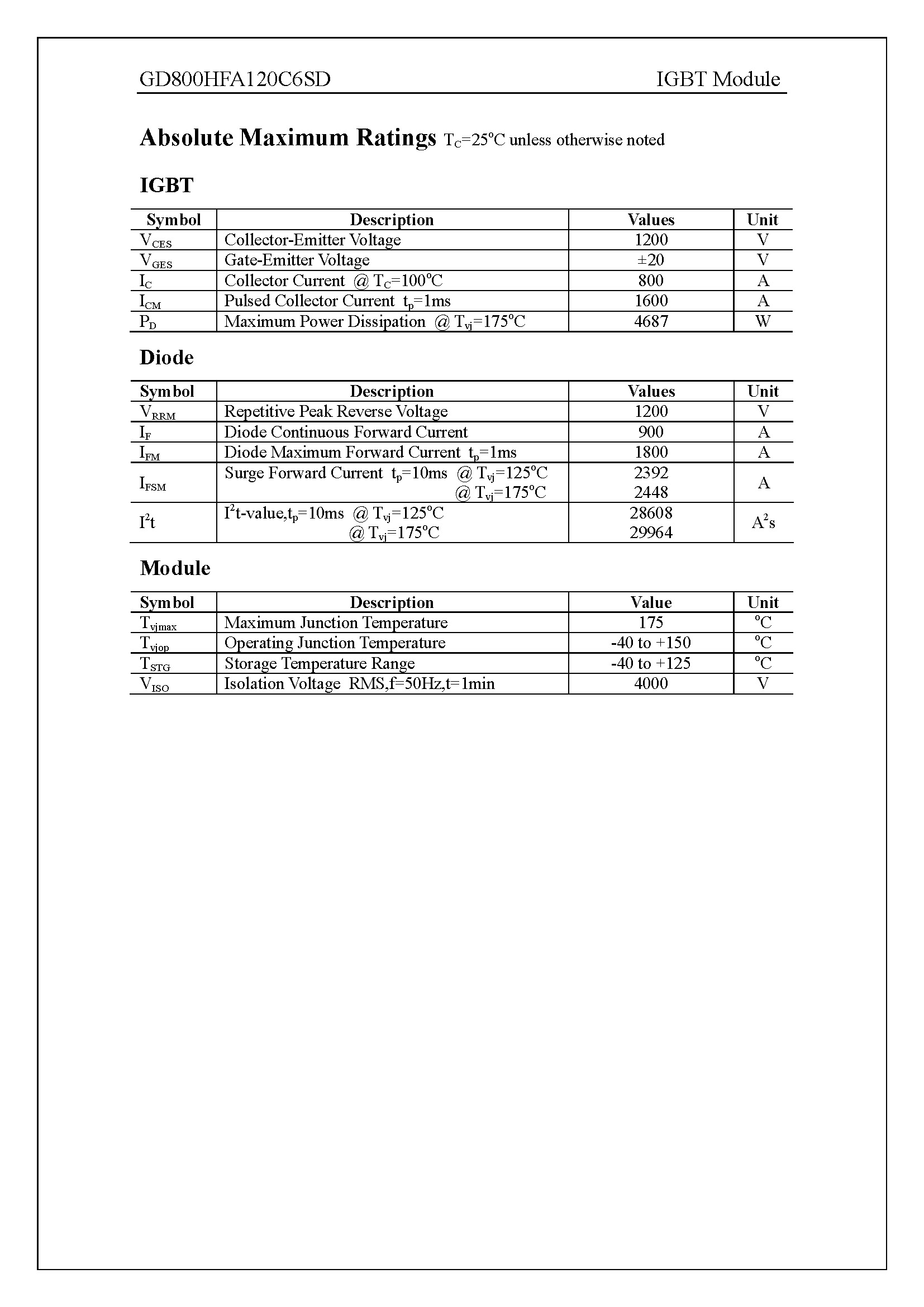

GD800HFA120C6SD-1_页面_2

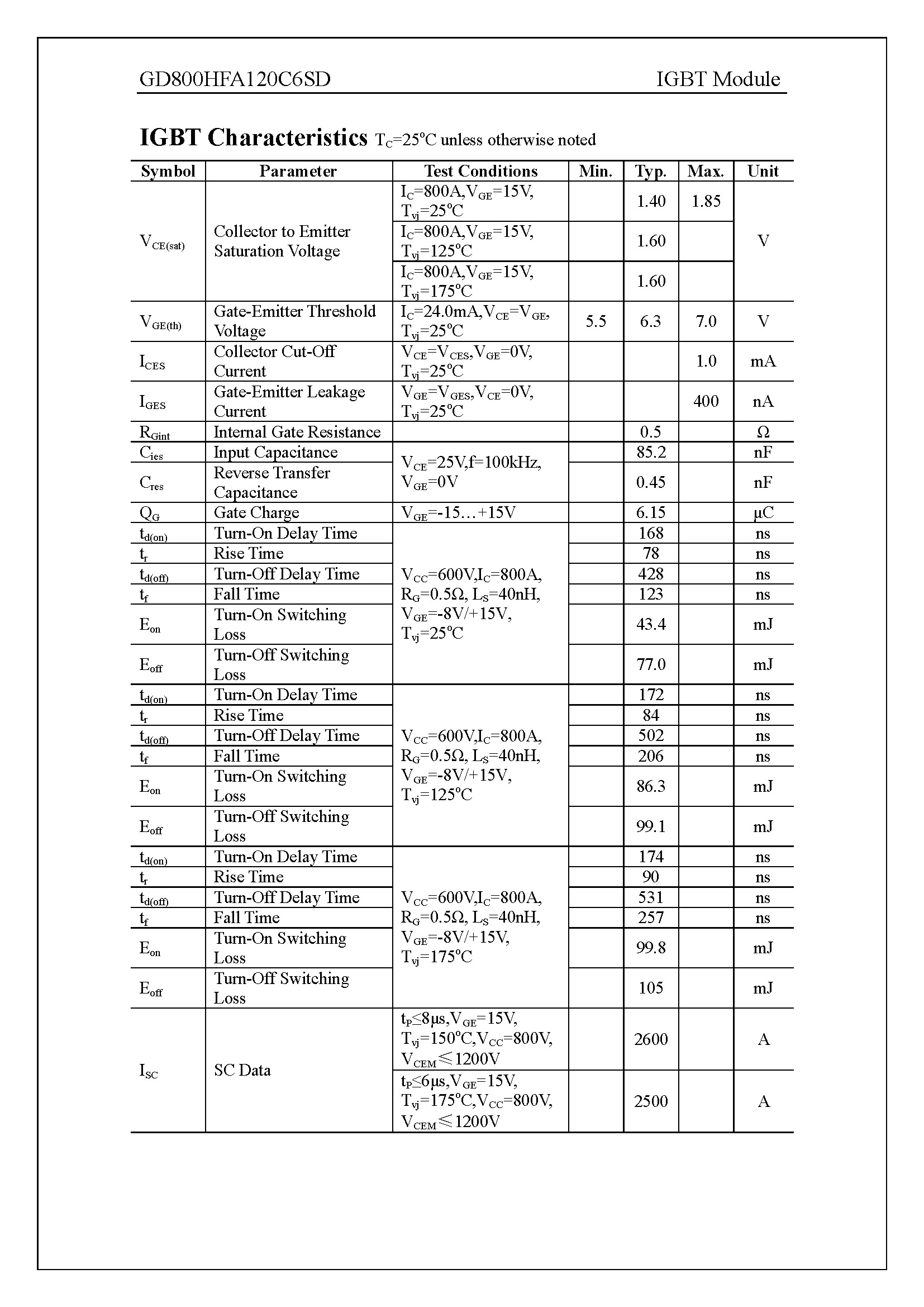

GD800HFA120C6SD-1_页面_3
