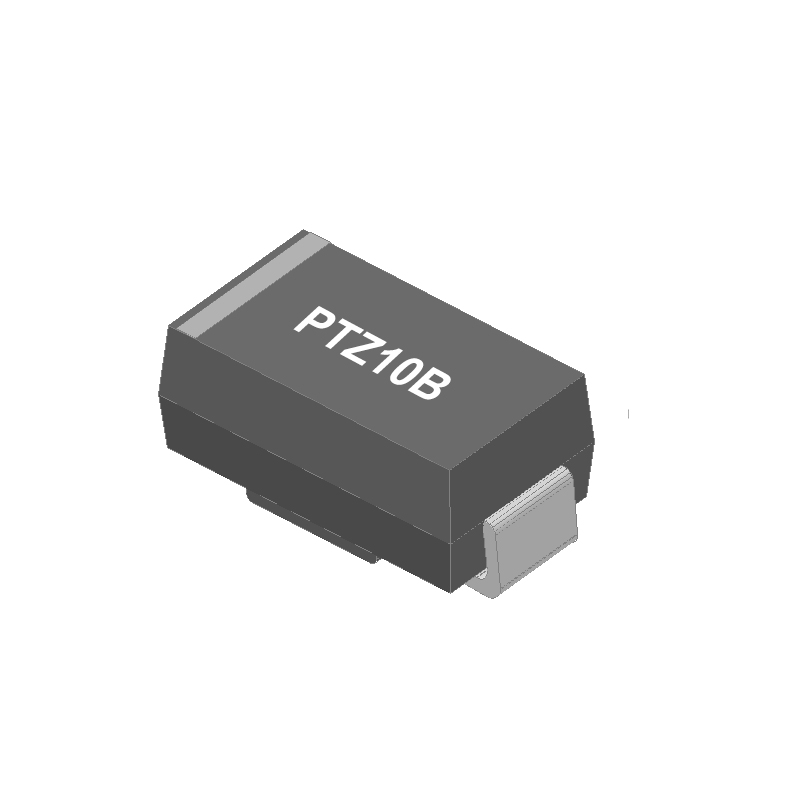

1W/1.5V/40mA, Surface Mount Zener Diodes, SMA, PTZ10B

1W/1.5V/40mA, Surface Mount Zener Diodes
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • PTZ10B

  • Merry

1W/1.5V/40mA, Surface Mount Zener Diodes, SMA, PTZ10B

Features :
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Mechanical Data :
- Package: DO-214AC (SMA)
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
