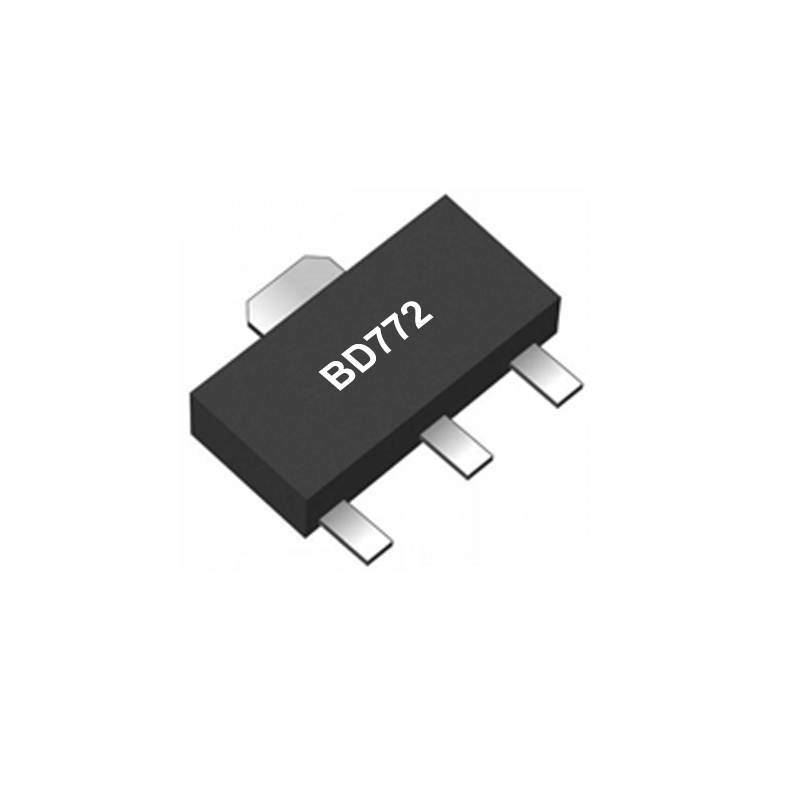

-30V/-3A PNP General Purpose Amplifier, SOT-89, BD772

-30V/-3A PNP General Purpose Amplifier
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • BD772

  • Merry

-30V/-3A PNP General Purpose Amplifier, SOT-89, BD772

Features :
- Epoxy meets UL-94 V-0 flammability rating
- Halogen free available upon request by adding suffix "HF"
- Moisture sensitivity level 1
- Low collector-emitter saturation voltage

Mechanical Data :
- Package: SOT-89
  Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Marking: B772

Maximum Ratings (Ta=25ºC unless otherwise noted)












Item Symbol Unit Conditions Value
Minimum Collector-Emitter Voltage VCEO V IC=-10mA, IB=0 -30
Minimum Collector-Base Voltage VCBO V IC=-100uA, IE=0 -40
Minimum Emitter-Base Voltage VEBO V IE=-100uA, IC=0 -6
Collector Current IC A
-3
Collector Power Dissipation PC mW
500
Thermal Resistance From Junction To Ambient RθJA ºC/W
250
Operation Junction Temperature Tj ºC
-55 to +150
Storage Temperature Tstg ºC
-55 to +150

BD772Name1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

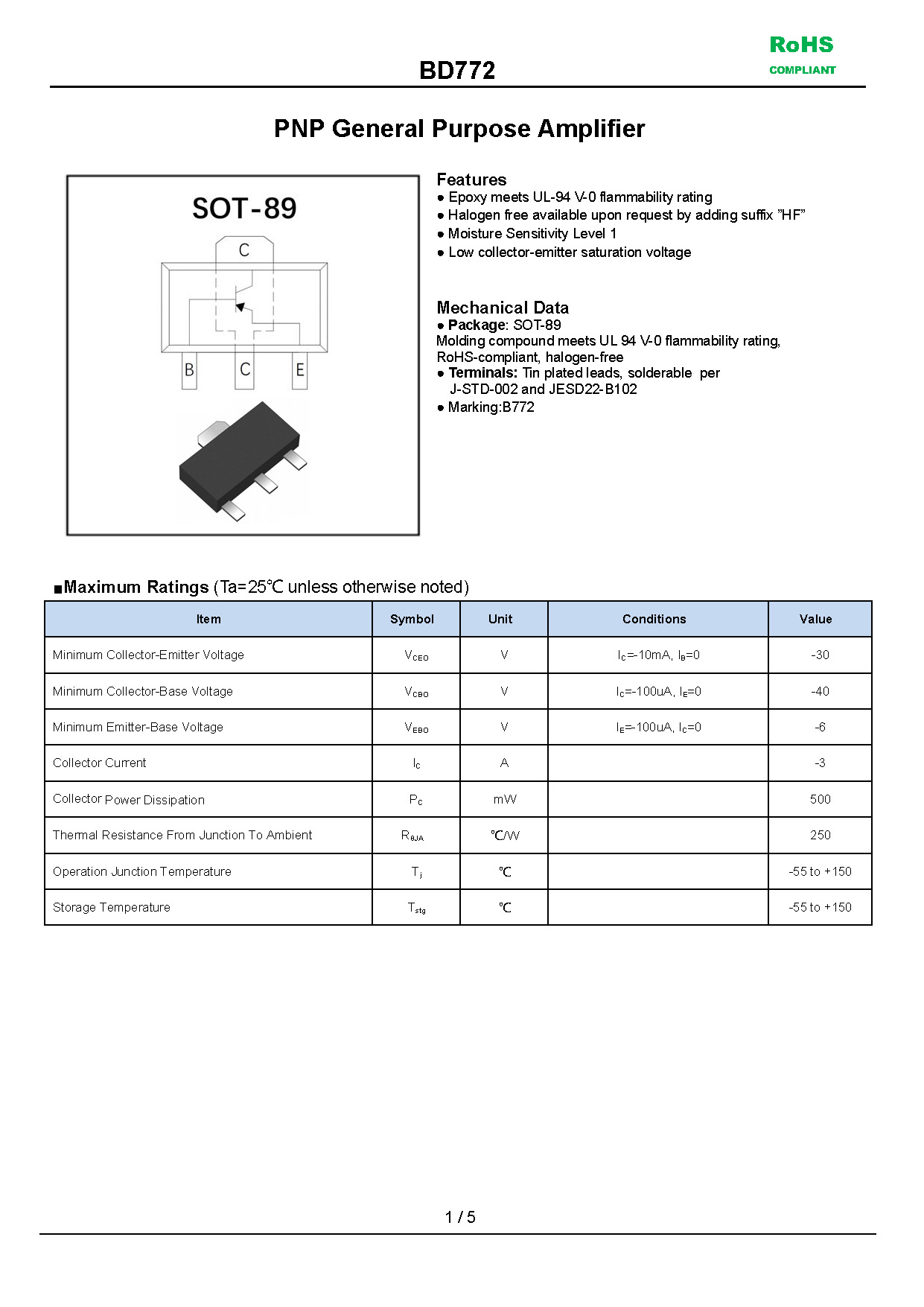

BD772-1_页面_1

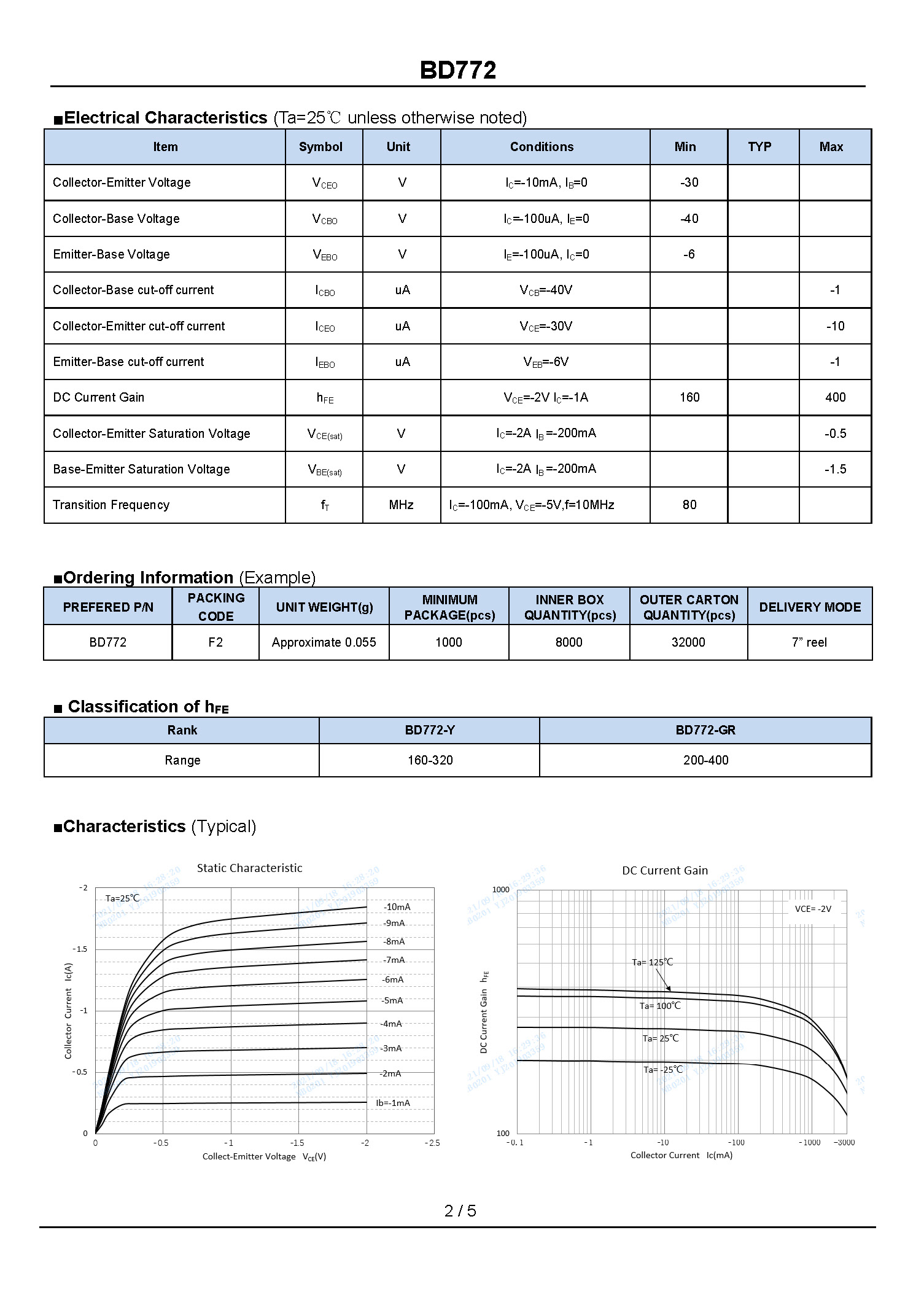

BD772-1_页面_2

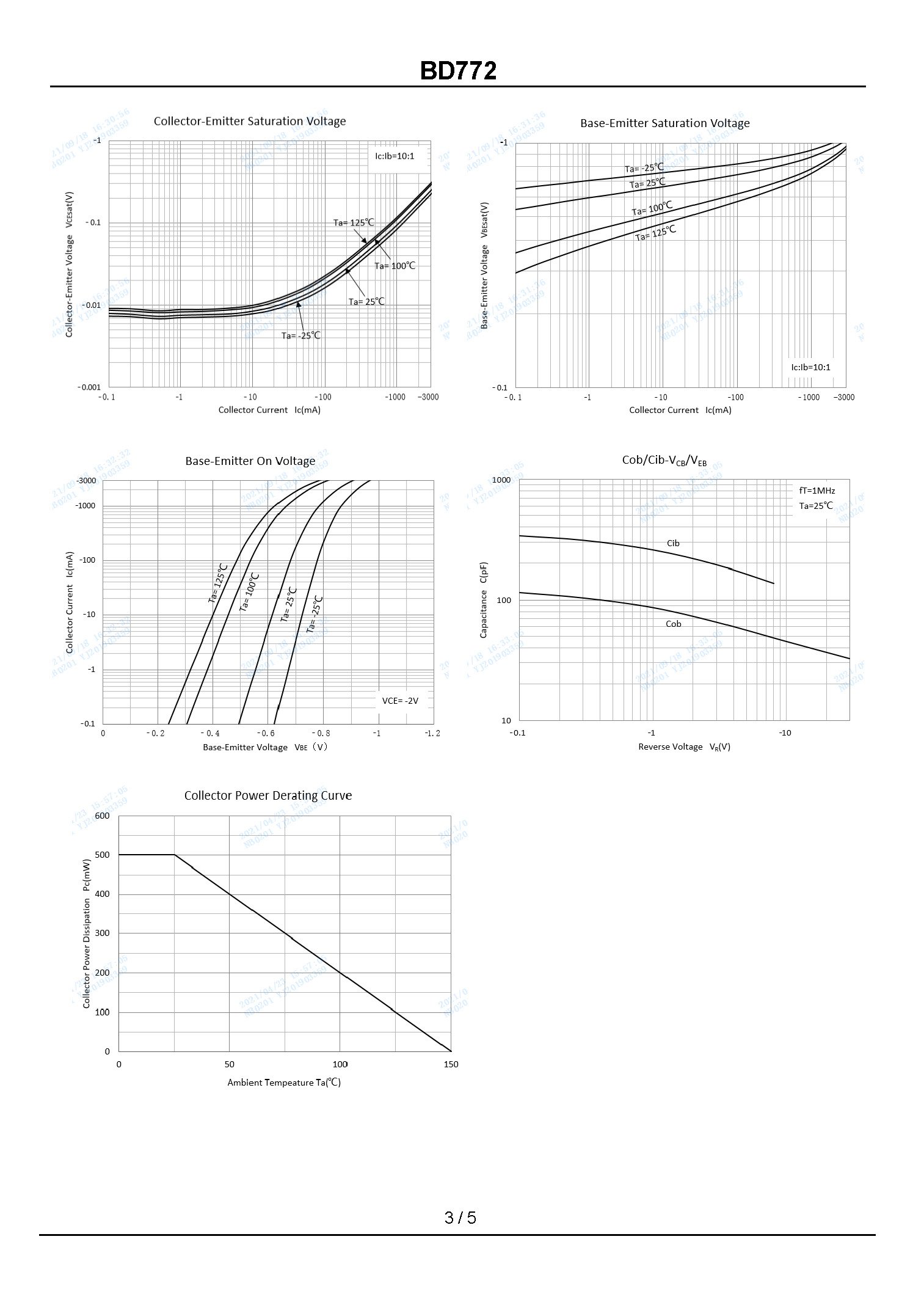

BD772-1_页面_3
