33kv-200A Auto Transformer Step Voltage Regulator

33kv-200A Step Voltage Regulator


Availability:



Inquire Add to Basket

Model:
Auto Transformer
Brand:
Merry

Product Description

33kV-200A Auto Transformer step voltage regulator

Overview
Single-phase automatic voltage regulator is a device used to adjust thevoltage of single-phase AC power, mainly composed of single-phase auto-coupling voltage regulator, on-load tap changer, automatic controller, etc. Itcan adjust the input unqualified voltage to a stable and qualified outputvoltage to meet the voltage demand of the load. It is mainly used in powersystems, industrial production and other fields. It is widely used in theMiddle East, America and Australia, and the product is mature and reliable.

Configuration & working principle
- The single-phase automatic voltage regulator can automatically track theoutput voltage of the voltage regulator. When the output voltage is detectedto be out of limit, the tap changer is automatically controlled to smoothlyadjust the tap changer gear position, so that the output voltage is kept withinthe qualified range.

Features
- High precision: within the set voltage regulator range, there are32 levels of automatic voltage regulation on load;

- Long life: unique voltage tap design avoids arcing duringvoltage regulation, and can guarantee a mechanical operation lifeof I million times;

- Low loss: single-phase design can minimize iron loss andreduce no-load loss, with a total loss of less than 0.1%;

- Strong overload: rated capacity is designed according to 55°Ctemperature rise, and can be overloaded by 12% at 65°Ctemperature rise.

- Maintenance-free: fully sealed design, high protection level,excellent weather resistance, long-term maintenance-free, and adesign life of 20 years;

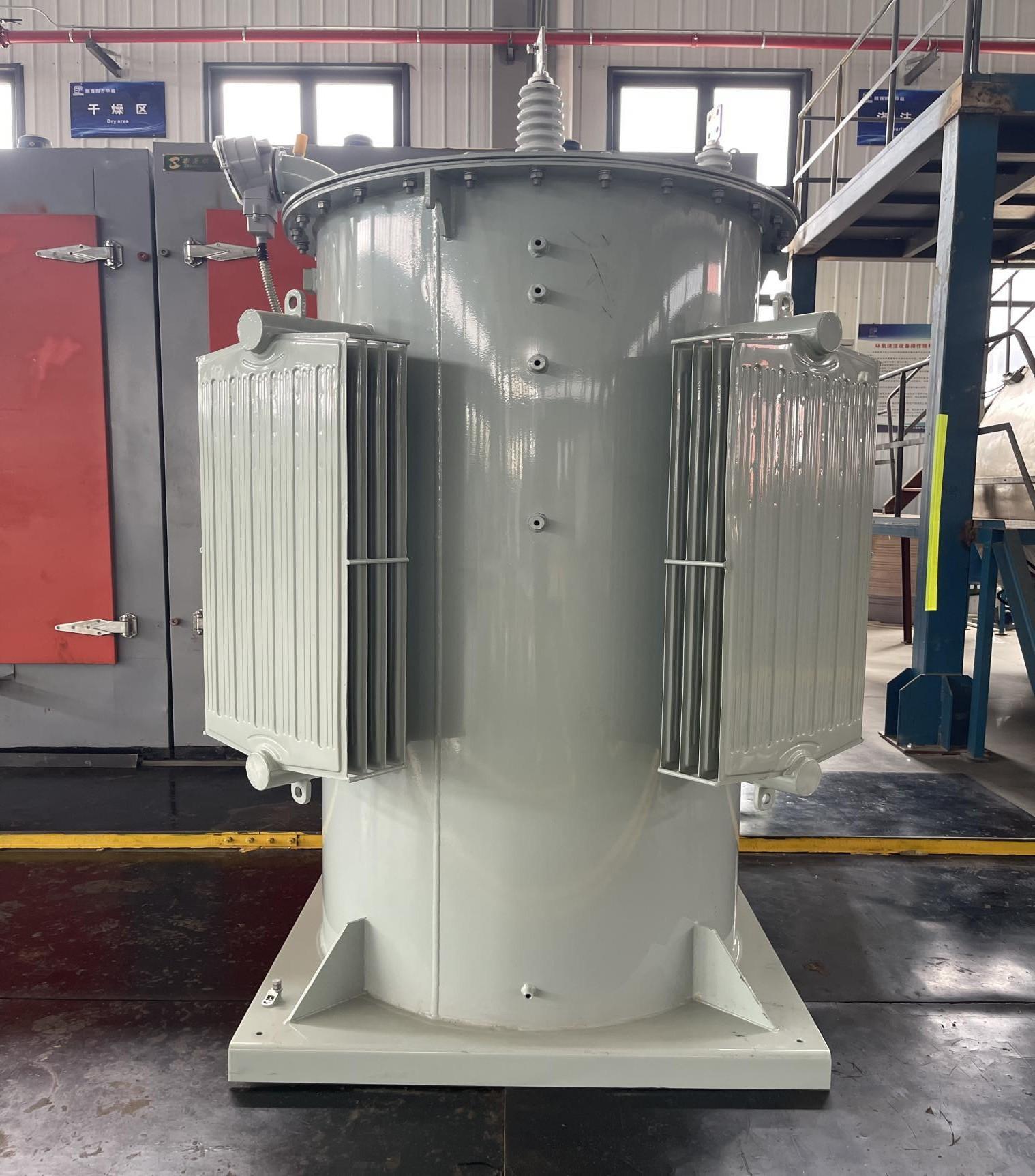

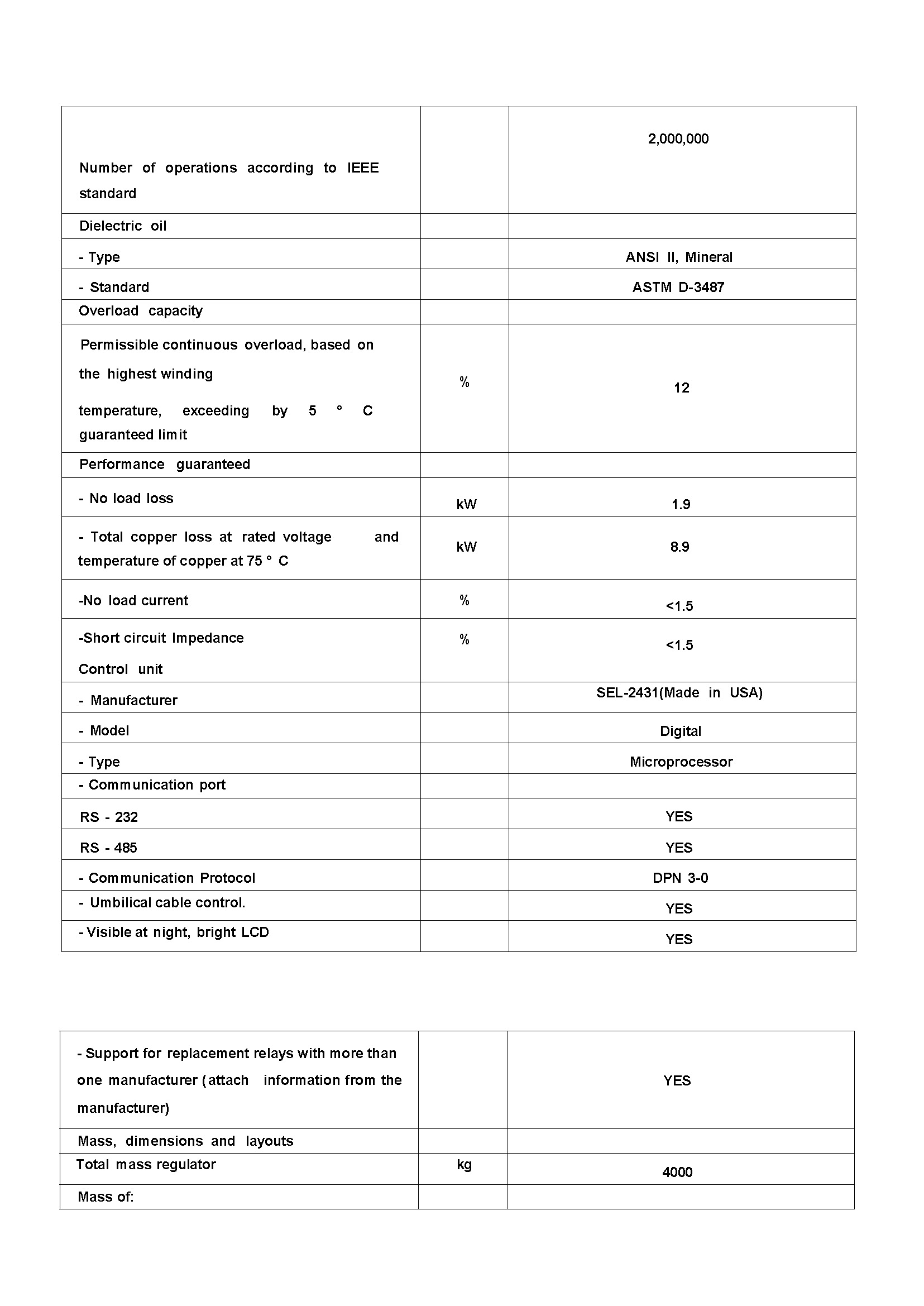

33kV-200A step voltage regulator Name1

Name2

Name1

Name2

Name1

Name2

Name1

Name2

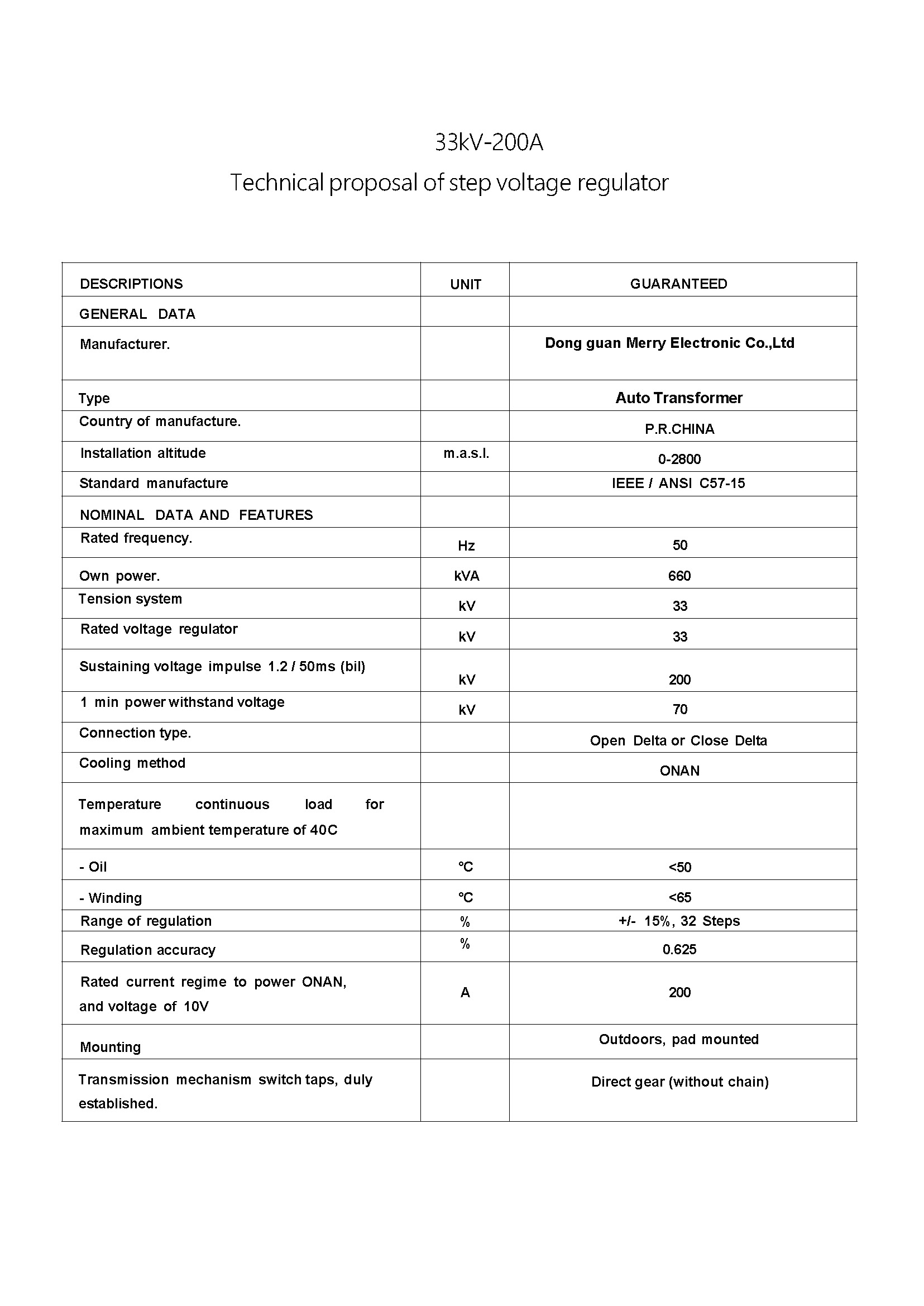

33kV-200A-1_页面_1
