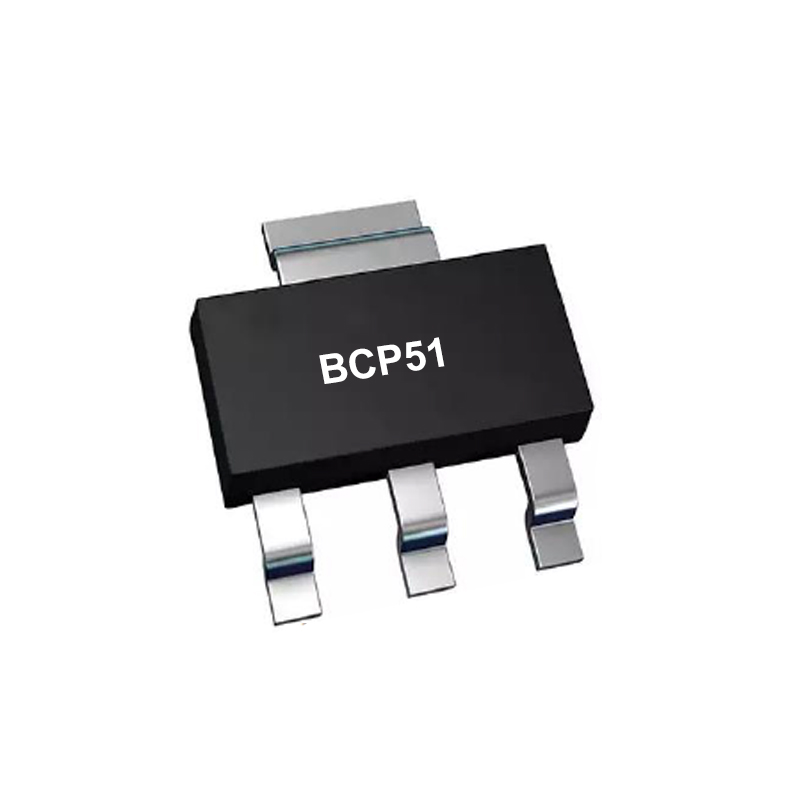

-45V/-1A PNP Transistor, SOT-223, BCP51

-45V/-1A PNP Transistor
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • BCP51

  • Merry

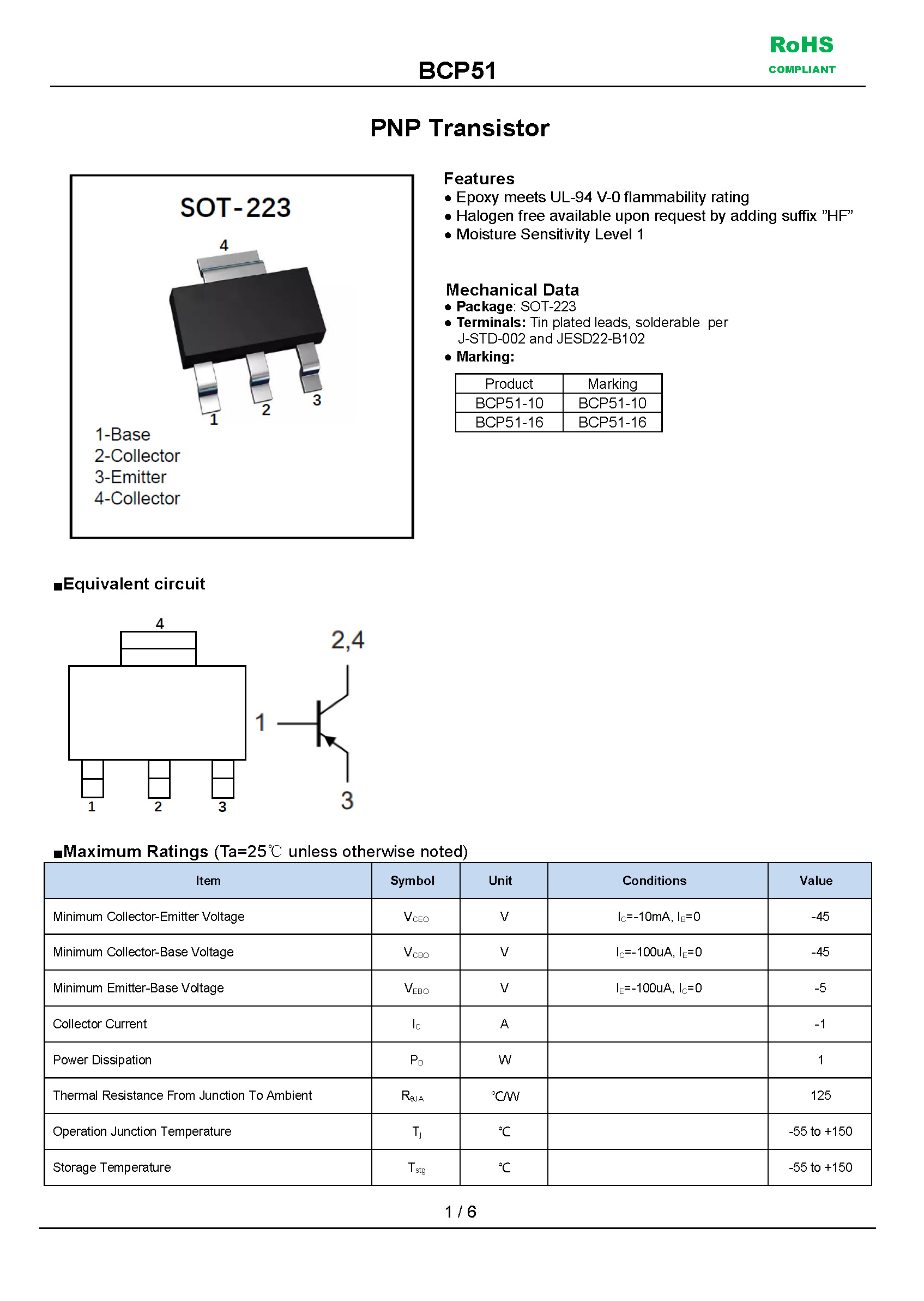

-45V/-1A PNP Transistor, SOT-223, BCP51

Features :
- Epoxy meets UL-94 V-0 flammability rating and halogen free
- Halogen free available upon request by adding suffix "HF"
- Moisture sensitivity level 1

Mechanical Data :
- Package: SOT-223
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Marking:
Product              Marking
BCP51-10        BCP51-10
BCP51-16        BCP51-16

BCP51Name1
