650V/10A IGBT Trench-FS Gen1, L4, GD10FSX65L4SN

650V/10A IGBT Trench-FS Gen1
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD10FSX65L4SN

  • Merry

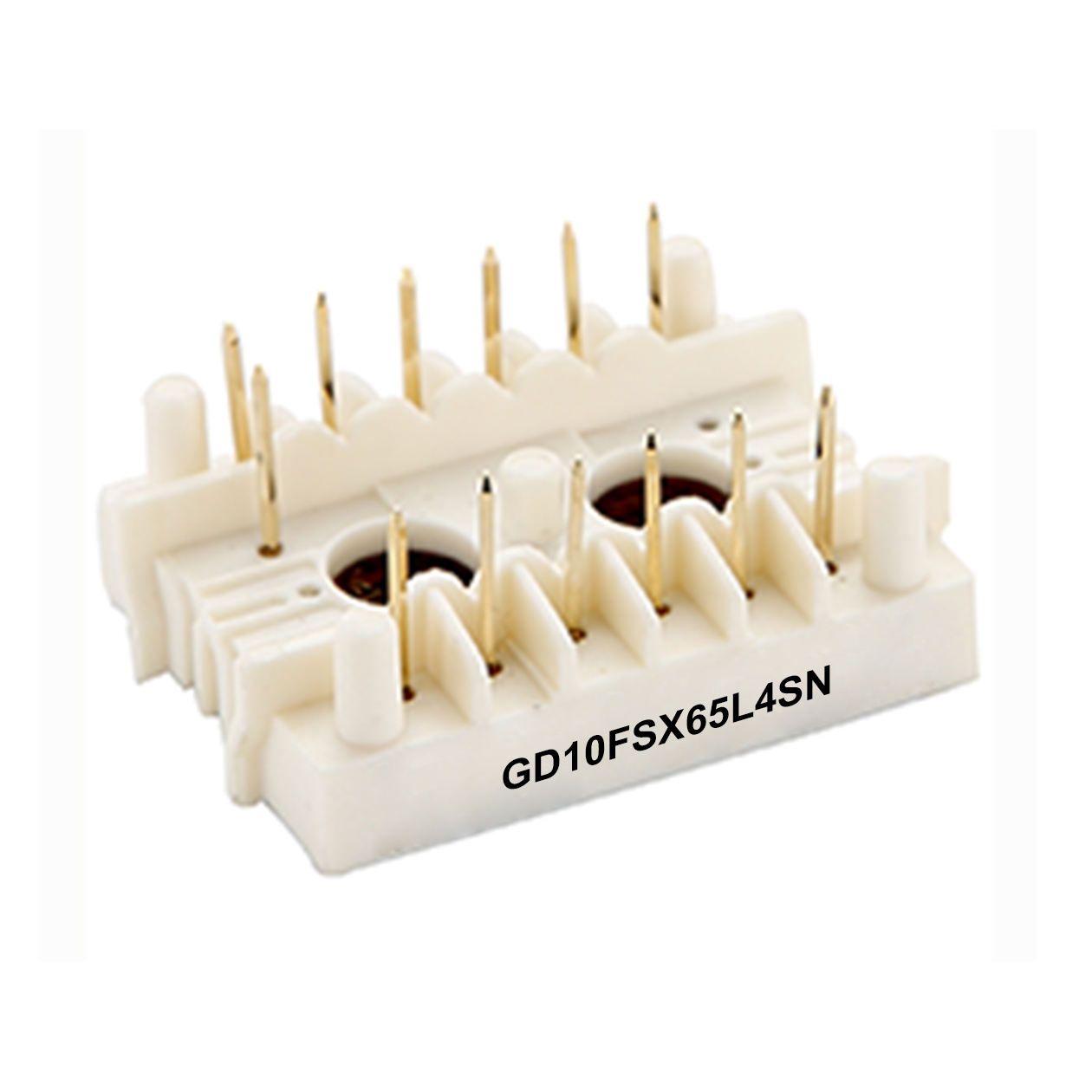

650V/10A IGBT Trench-FS Gen1, L4, GD10FSX65L4SN
Package: L4
Rated Current: 10A
Chip Type: Trench-FS Gen1
Rated Voltage: 650V
Circuit Structure: Sixpack
Hallmark:


Features :
- Low VCE(sat) Trench IGBT technology
- Low switching loss
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Fast & soft reverse recovery anti-parallel FWD
- Isolated heatsink using DBC technology

Typical Applications :
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply

GD10FSX65L4SNName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

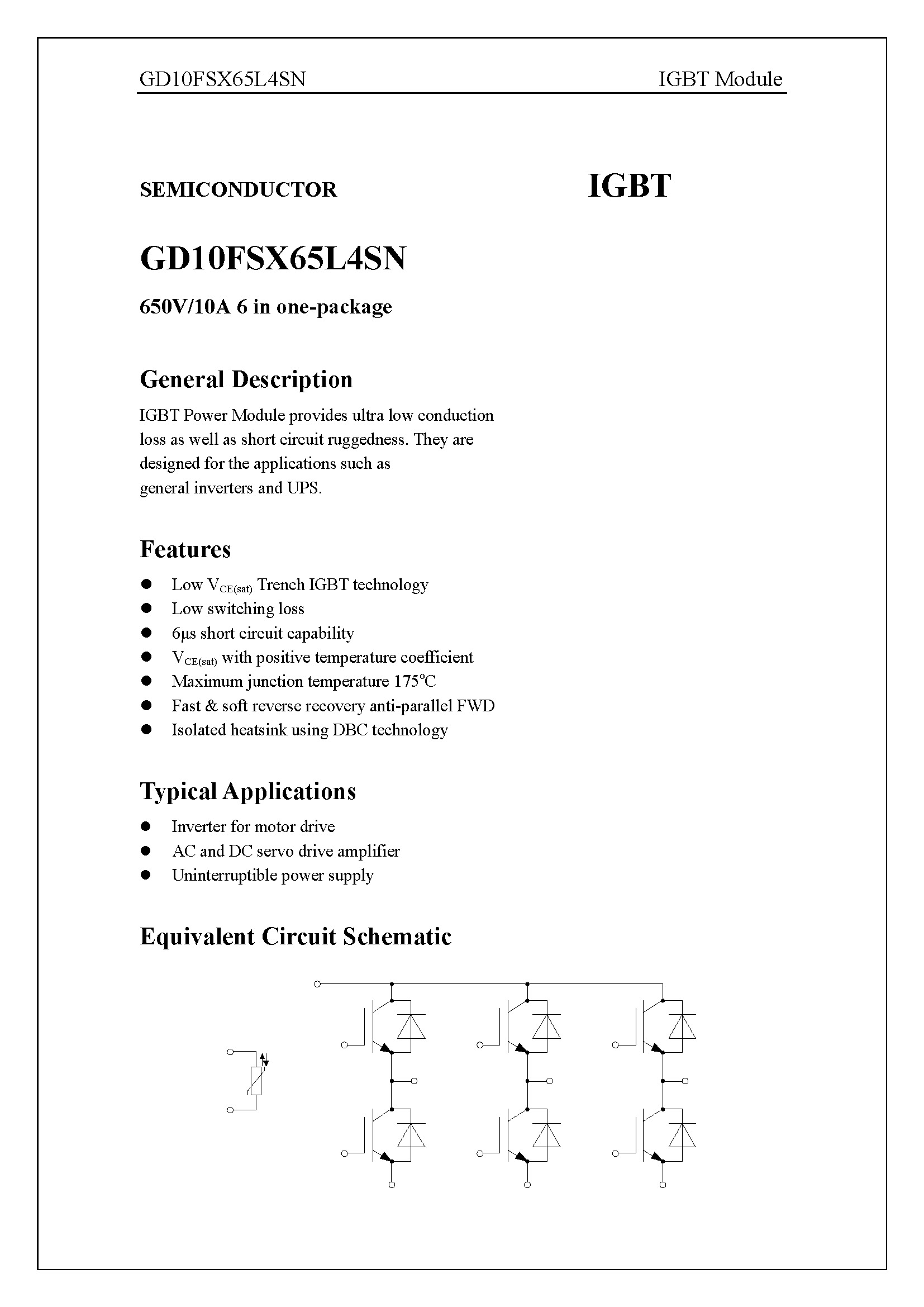

GD10FSX65L4SN-1_页面_1

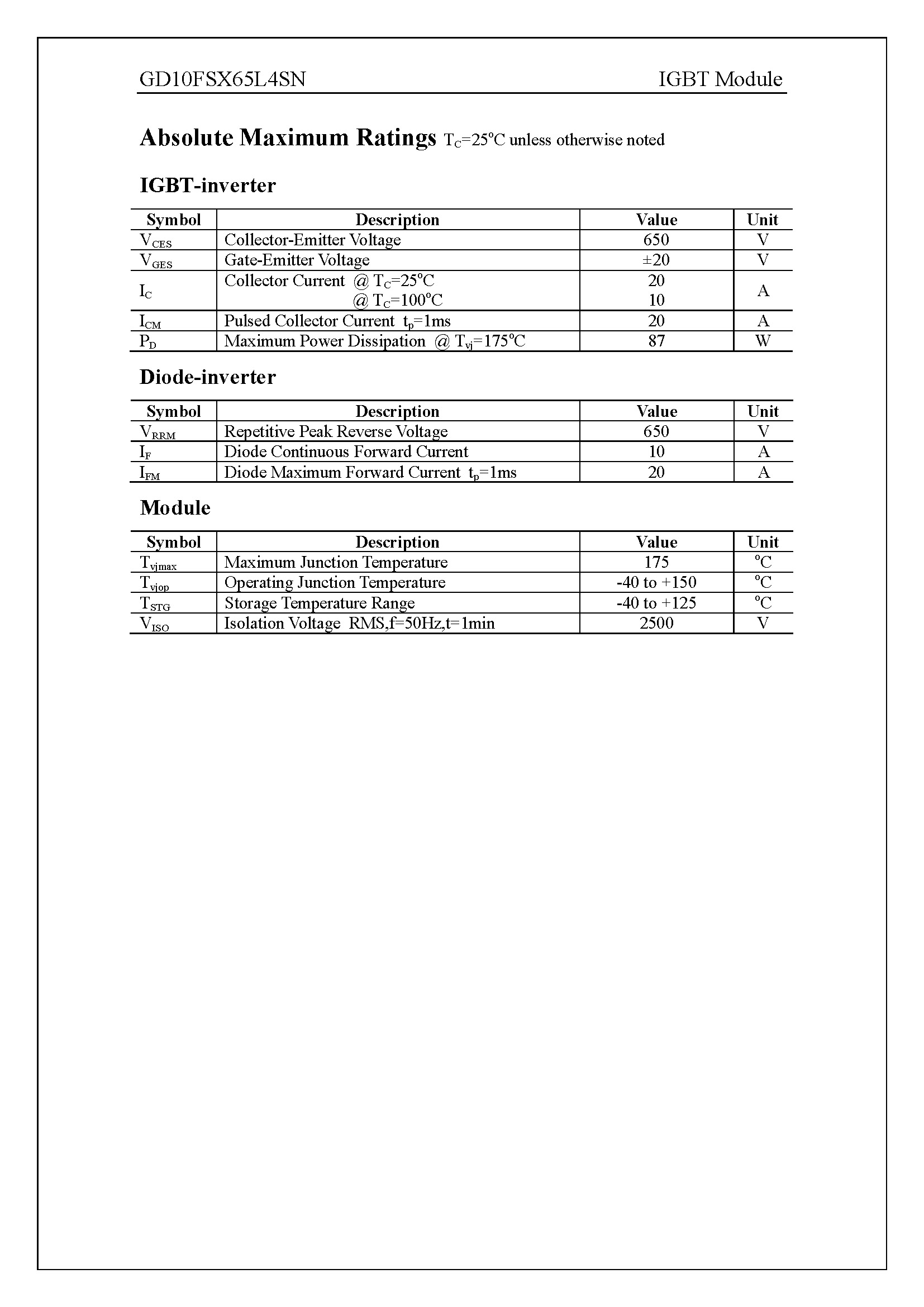

GD10FSX65L4SN-1_页面_2

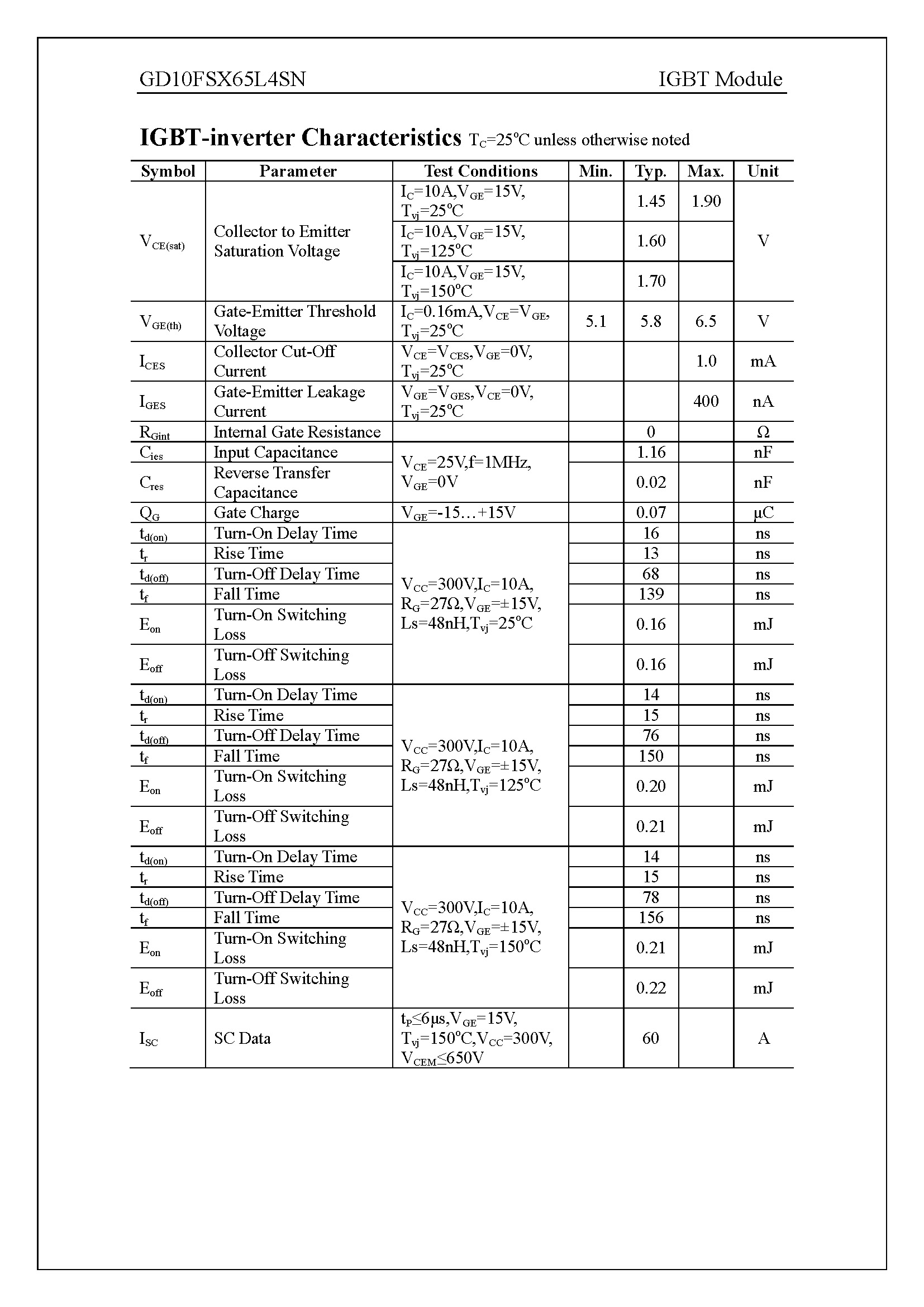

GD10FSX65L4SN-1_页面_3
