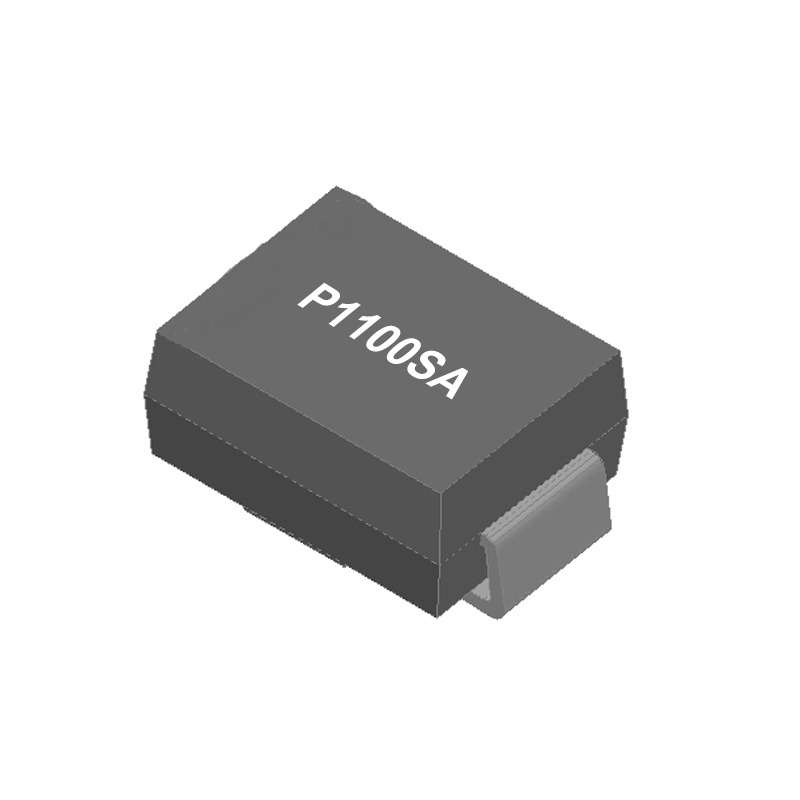

90V/800mA, Thyristor Surge Suppressors, DO-214AA (SMB), P1100SA

90V/800mA, Thyristor Surge Suppressors
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • P1100SA

  • Merry

90V/800mA, Thyristor Surge Suppressors, DO-214AA (SMB), P1100SA

Features :
- Low switching voltage
- Low on-state voltage
- Does not degrade surge capability after multiple surge events within limit
- Fails short circuit when surged in excess of ratings
- Low Capacitance

Typical Applications :
- Protect circuit

Mechanical Data :
- Package: DO-214AA (SMB)
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102

P1100SAName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

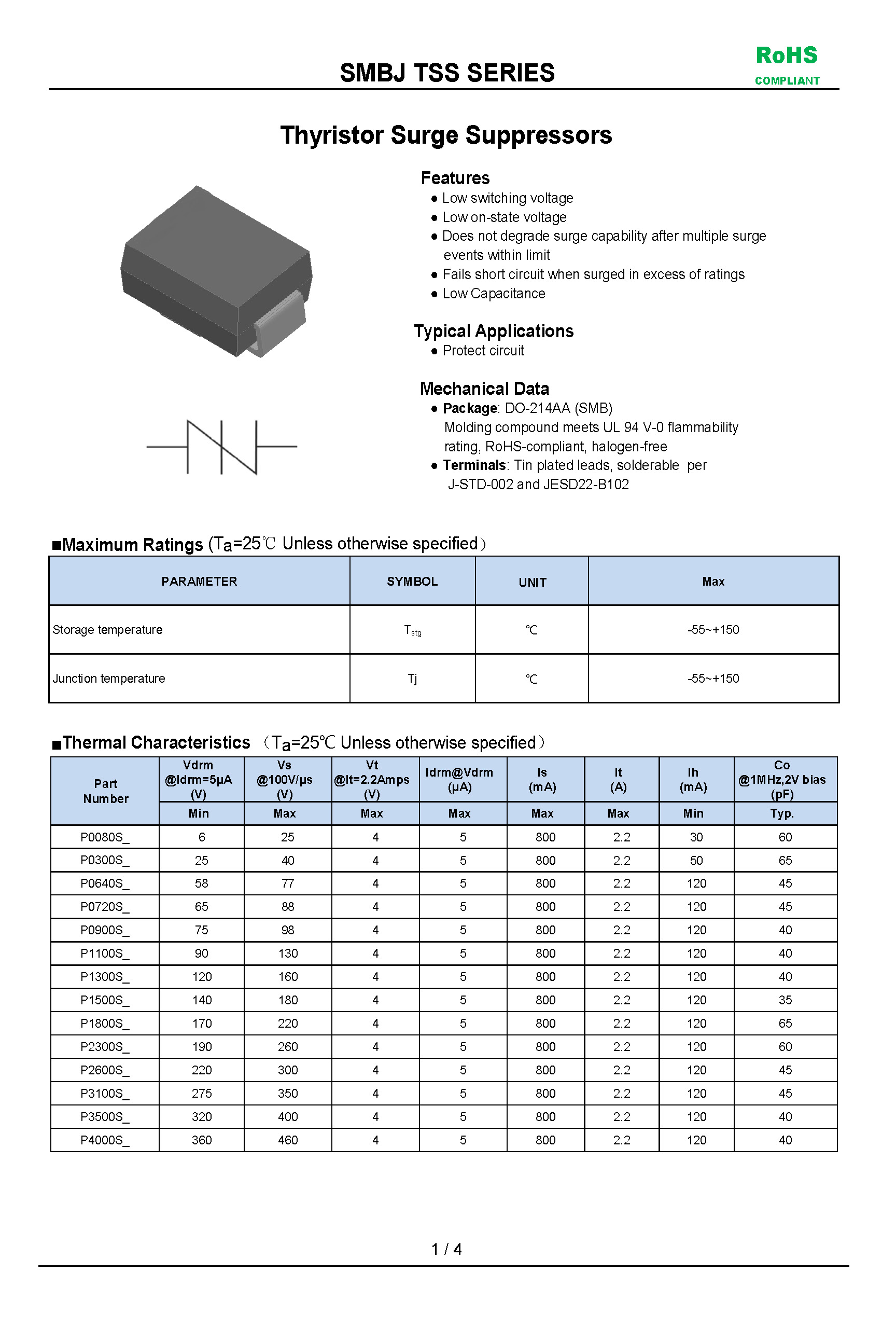

P1100SA-1_页面_1

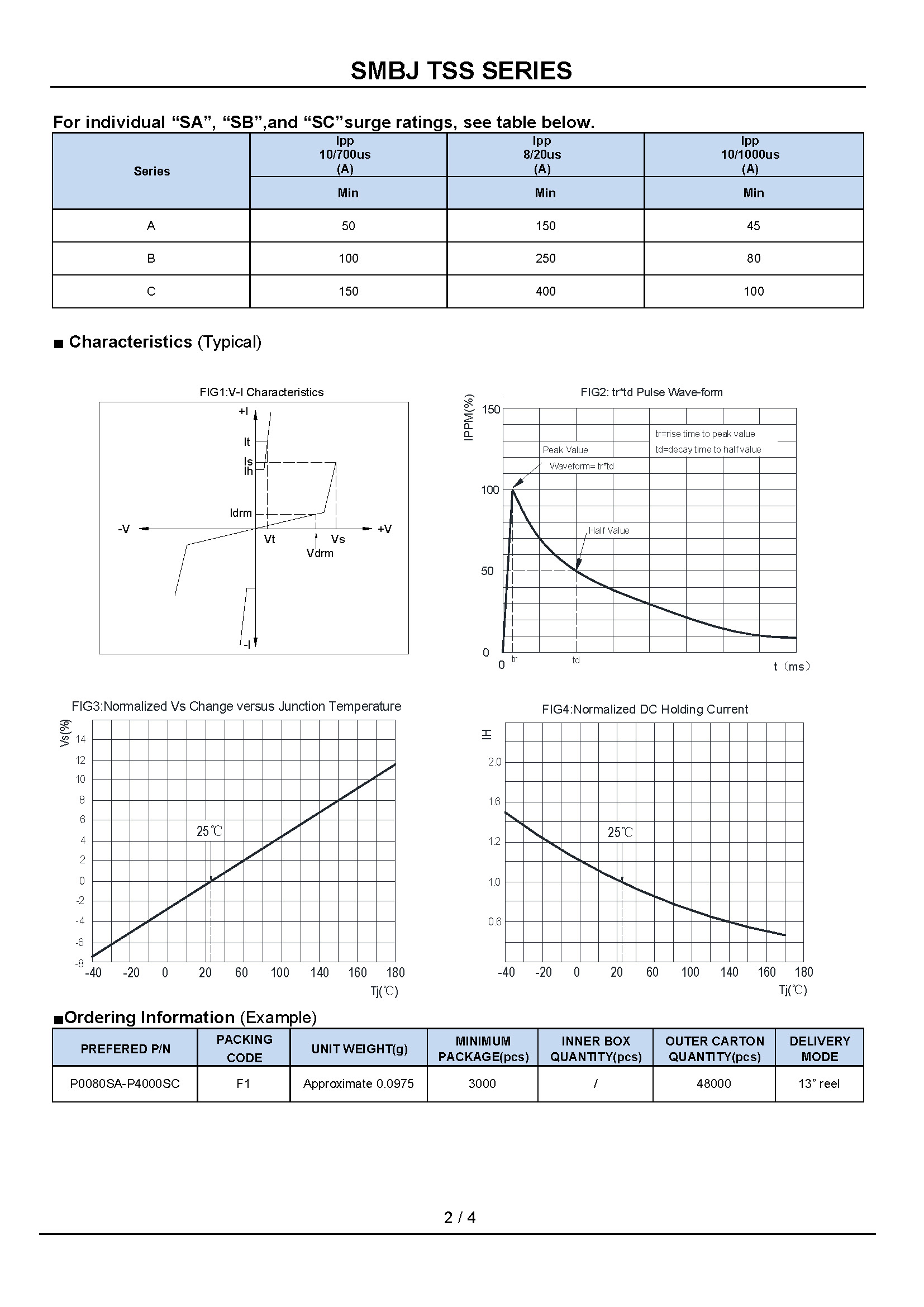

P1100SA-1_页面_2

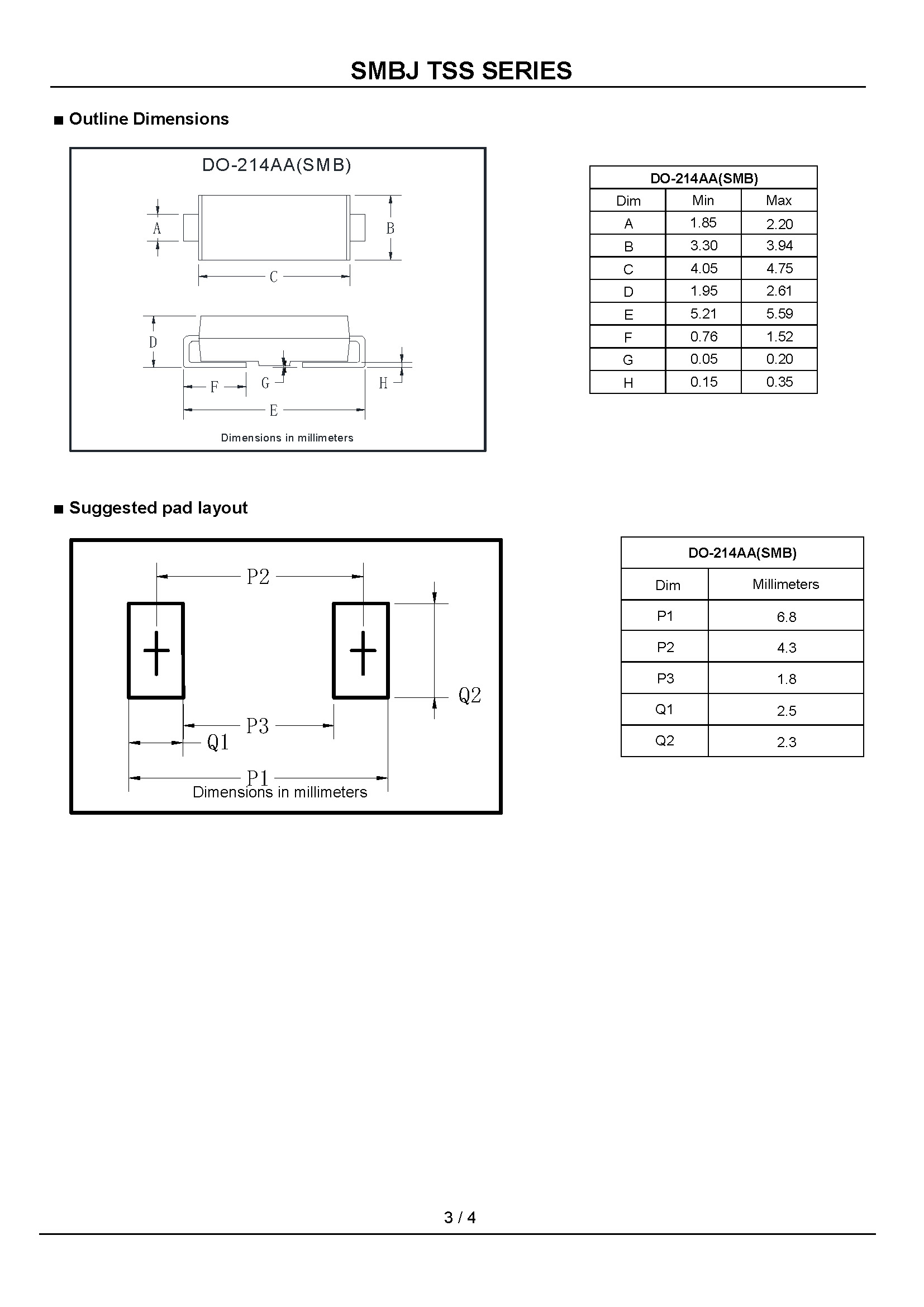

P1100SA-1_页面_3
