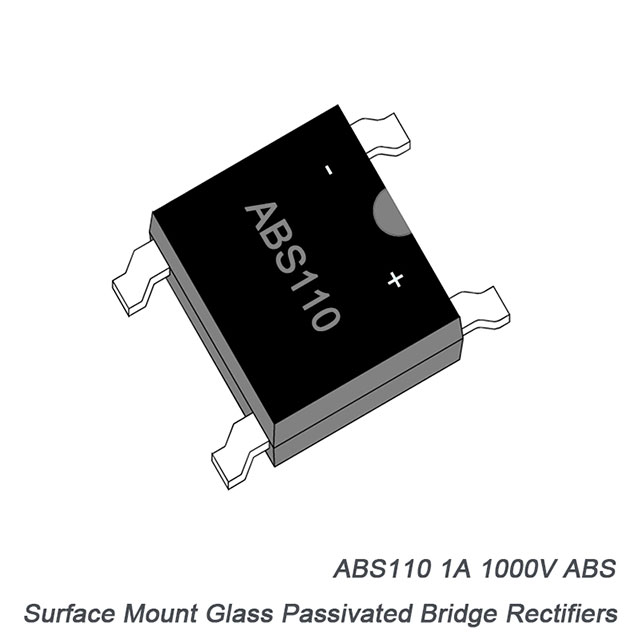

ABS110 Surface Mount Glass Passivated Rectifier Bridge

ABS110 Surface Mount Glass Passivated Rectifier Bridge/Reverse Voltage - 50 to 1000 Volts/Forward Current - 1.0 Amperes
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ABS110

  • HY

The Application of Bridge Rectifier in Adapters


Bridge rectifier stacks, also known as bridge rectifiers or bridge diode rectifiers, are electronic devices widely used in various applications. One such application is in adapters, where bridge rectifier stacks play a crucial role in converting alternating current (AC) to direct current (DC). This article explores the importance of bridge rectifier stacks in adapters and their significant contributions to the functionality of these devices.

Understanding Bridge Rectifier :

A bridge rectifier stack is a configuration of diodes arranged in a specific pattern that allows the conversion of AC to DC. The stack typically consists of four diodes connected in a bridge-like formation, hence the name. These diodes ensure the flow of current in a single direction, resulting in the conversion of AC power to DC power.

Application in Adapters:

Adapters are essential devices used to convert electrical energy from one form to another. They are commonly employed to power electronic devices that require a different voltage or current than what is supplied by the electrical outlet. Bridge rectifier stacks are integral components within adapters, ensuring the conversion of AC power from the outlet to the required DC power for the electronic device.

Voltage Conversion

One of the primary functions of bridge rectifier stacks in adapters is voltage conversion. The AC power supplied by the electrical outlet is typically of a higher voltage than what most electronic devices can handle. The bridge rectifier stack reduces this voltage to a safe and usable level for the electronic device. By rectifying the AC power, the bridge rectifier stack enables the adapter to provide a stable and regulated DC voltage output.

Current Rectification:

Apart from voltage conversion, bridge rectifier stacks also rectify the AC current, converting it into a steady DC current. This rectification ensures that the electronic device receives a consistent and reliable power supply. The bridge rectifier stack's ability to convert the alternating current into a direct current is crucial in maintaining the proper functioning of the electronic device, preventing any potential damage that may occur due to fluctuating currents.

Efficiency and Reliability:

Bridge rectifier stacks used in adapters are designed to be highly efficient and reliable. They minimize power loss during the conversion process, ensuring that the adapter operates at maximum efficiency. Additionally, bridge rectifier stacks are built to withstand high currents and voltages, making them durable and reliable components in adapters.


Bridge rectifier stacks play a vital role in the functionality of adapters by converting AC power from electrical outlets into DC power suitable for electronic devices. By facilitating voltage conversion and rectifying the current, bridge rectifier stacks ensure that the electronic device receives a stable and regulated power supply. Their efficiency and reliability make them indispensable components in adapters, contributing to the seamless operation of various electronic devices.

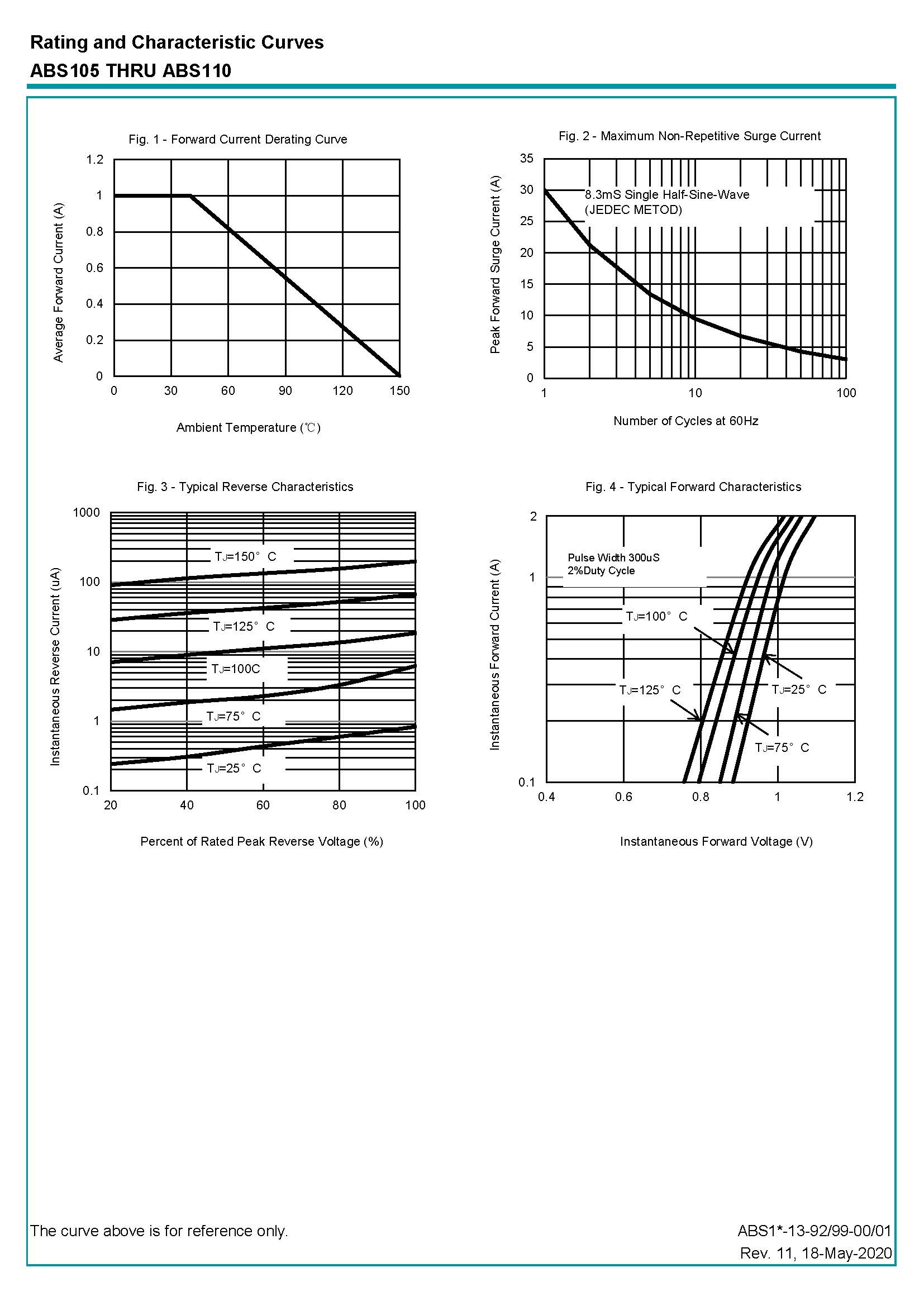

Rectifier Bridge
