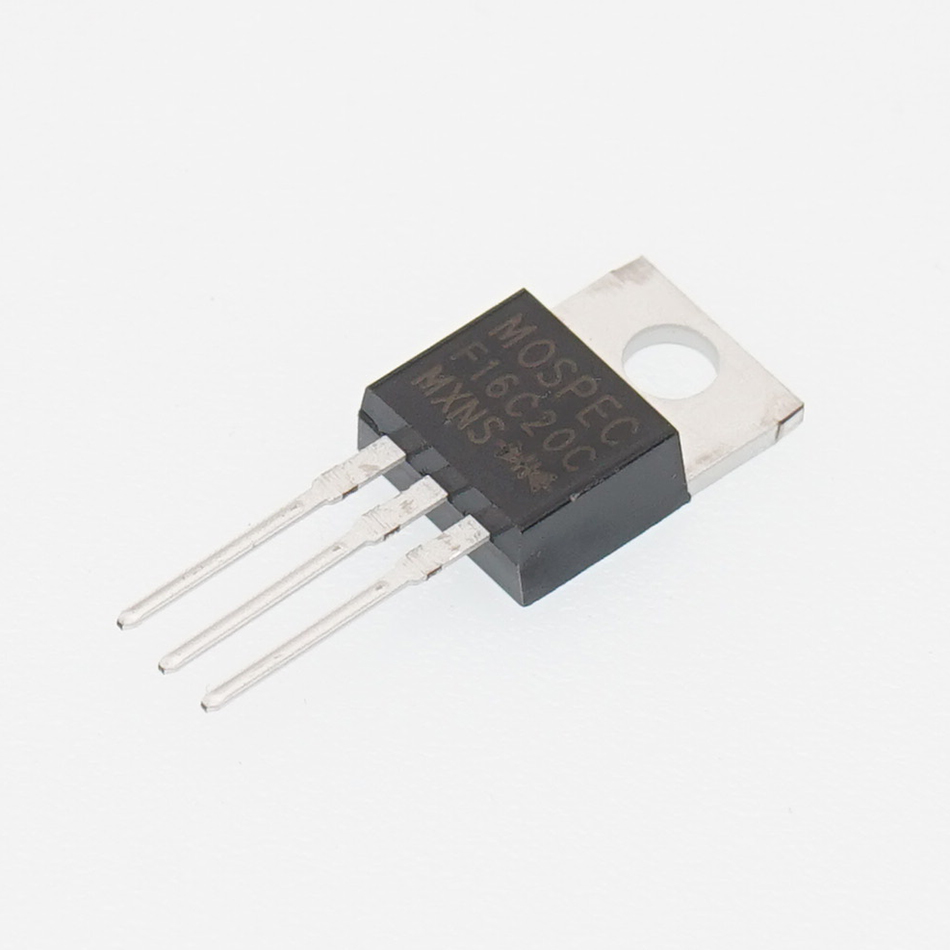

Dual Fast Recovery Rectifiers F16C20C

Dual Fast Recovery Rectifiers


Availability:



Inquire Add to Basket

Model:
F16C20C
Brand:
Merry

Product Description

Dual Fast Recovery Rectifiers F16C20C

F16C20C
Designed for use in switching power supplies. inverters and as free wheeling diodes. These state-of-the-art devices have the following

Features :

- Glass Passivated chip junctions
- Low Reverse Leakage Current
- Fast Switching for High Efficiency
- 150ºC Operating Junction Temperature
- Low Stored Charge Majority Carrier Conduction
- Low Forward Voltage , High Current Capability
- Plastic Material used Carries Underwriters Laboratory
- Flammability Classification 94V-O
- Lead free in compliance with EU RoHS 2011/65/EU directive.

Technical Data :

Package	TO-220AB
IO(A)	16
VBR(V-min)	200
VF(V-typ)	1
IR(V-max)	0.1
IFSM(A)	120
Trr(ns-max)	30
Tj(°C)	150

Name1

Name2

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

Name1

Name2

Name1

Name2

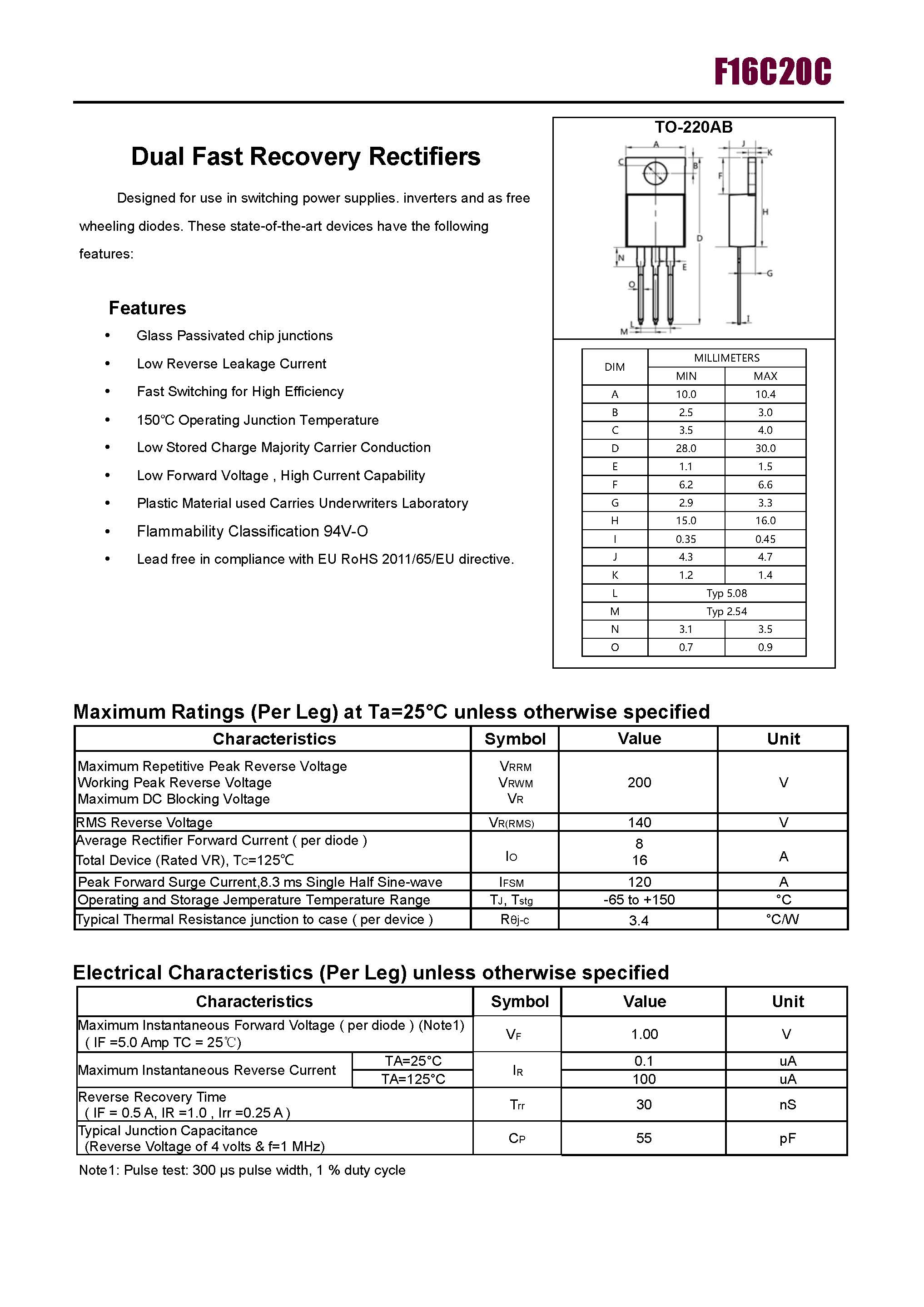

CYS-F16C20C-1_页面_1
