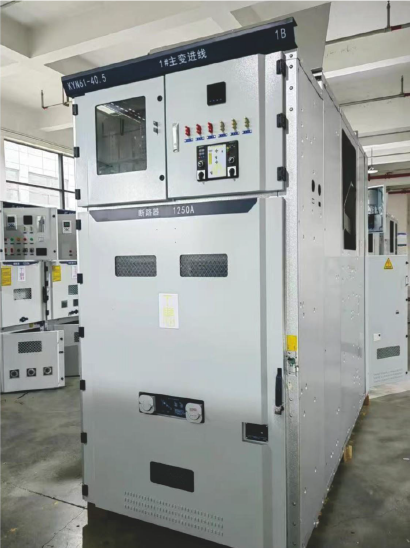

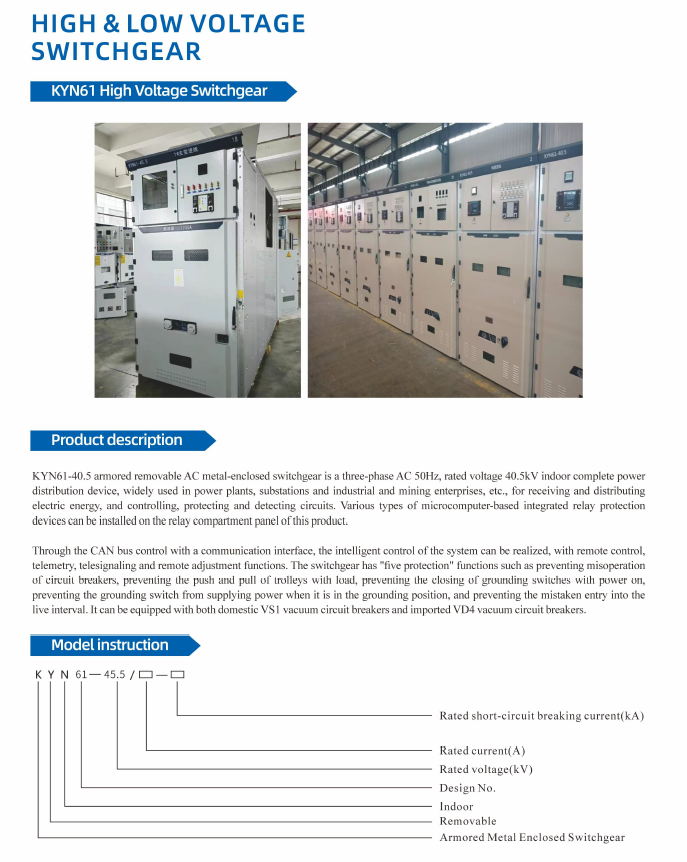

KYN61 High Voltage Switchgear
Overview
KYN61-40.5 amored removable AC metal -enclosed swichgear is a thre-phase AC 50Hz, rated voltage 40.SkV indoor complete powerdistribution device, widely used in power plants, substations and industrial and mining enterprises, ete., for receiving and distributingcelectrie energy, and controlling. protecting and detecting circuits. Various types of microcomputer-based integrated relay protectiondevices can be installed on the relay compartment panel of this product.
Through the CAN bus control with a communication interface, the intelligent control of the system can be realized, with remote control.telemetry, telesignaling and remote adjustment functions. The swichgear has "five protection" functions such as preventing misoperationof cincuil breakers, prevening the push and pull of tolleys with lad, prevening the closing of grounding swiches wih power on.preventing the grounding swich from supplying power when it is in the grounding position, and preventing the mistaken entry into thelive interval. It can be equipped with both domestic VSI vacuum circuit breakers and imported VD4 vacuum circuit breakers.

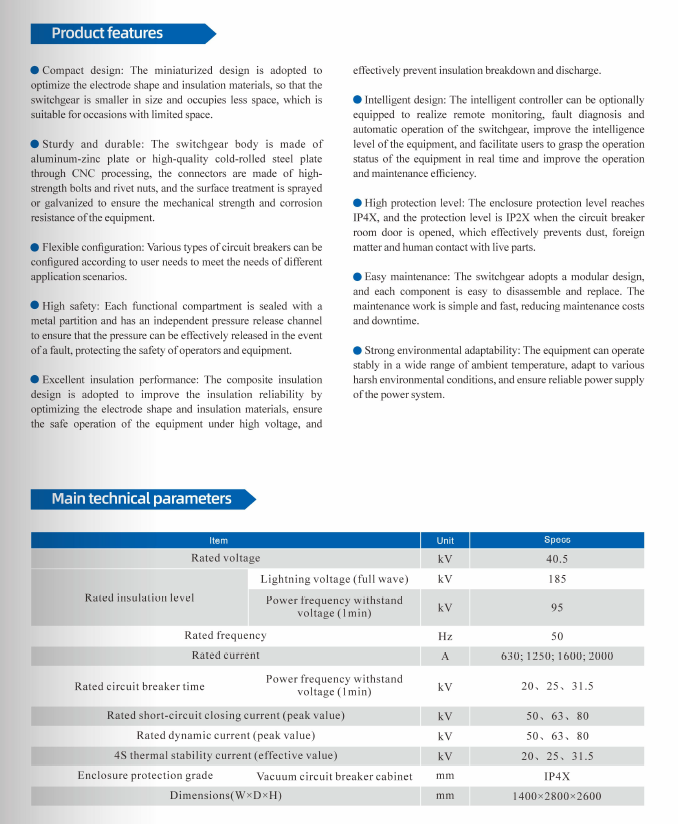

Product features
- Compact design: The miniaturized design is adopted tooptimize the electrode shape and insulation materials, so that theswitchgear is smaller in size and occupies less space, which issuitable for occasions with limited space.
- Sturdy and durable: The switchgear body is made ofaluminum-zine plate or high-quality cold-rolled steel platethrough CNC processing, the connectors are made of high-strength bolts and rivet nuts, and the surface treatment is sprayedor galvanized to ensure the mechanical strength and corrosionresistance of the equipment.
- Flexible configuration: Various types of circuit breakers can beconfigured according to user needs to meet the needs of differentapplication scenarios.
- High safety: Each functional compartment is sealed with ametal partition and has an independent pressure release channelto ensure that the pressure can be effectively released in the eventof a fault, protecting the safety of operators and equipment.
- Excellent insulation performance: The composite insulationdesign is adopted to improve the insulation reliability byoptimizing the electrode shape and insulation materials, ensurethe safe operation of the equipment under high voltage, and
effectively prevent insulation breakdown and discharge.
- Intelligent design: The intelligent controller can be optionallyequipped to realize remote monitoring, fault diagnosis andautomatic operation of the switchgear, improve the intelligencelevel of the equipment, and facilitate users to grasp the operationstatus of the equipment in real time and improve the operationand maintenance efficiency.
- High protection level: The enclosure protection level reachesIP4X, and the protection level is IP2X when the circuit breakerroom door is opened, which effectively prevents dust, foreignmatter and human contact with live parts.
- Easy maintenance: The switchgear adopts a modular design,and each component is easy to disassemble and replace. Themaintenance work is simple and fast, reducing maintenance costsand downtime.
- Strong environmental adaptability: The equipment can operatestably in a wide range of ambient temperature, adapt to variousharsh environmental conditions, and ensure reliable power supplyof the power system.
