Home » Products » Transformer » Mns 660V Low Voltage Draw-out Switchgear

Kyn28 12kv High Voltage Ammored Removable AC Metal-Enclosed Switchgear

Mns 660V Low Voltage Draw-out Switchgear


Availability:



Inquire Add to Basket

Model:
Mns Switchgear
Brand:
Merry

Product Description

MNS 660V Low voltage draw-out switchgear

Overview
MNS low-votage draw-out switchgear (hereinafier refered to as the device) is a combined draw-out low-voltage switchgcar assembledfrom modular components. This device is suitable for power plants, substations, petrochemicals, metallurgy and stel rolling, lightindustry and textiles and other factories and mines, as well as residential areas, high-rise buildings and other places. It is used in lowvoltage power distribution systems with AC 50-60Hz and rated working voltage of 660V and below to realize power distribution, motorcontrol center, capacitor compensation and other functions of power conversion, distribution and control. This device complies withIEC439, VDE660 Part 5 and GB7251.1-2013 "Low-voltage complete switchgear and control equipment" national standards, as well asJB/T9661 -1999 "Low-voltage draw-out complete switchgear" industry standards.

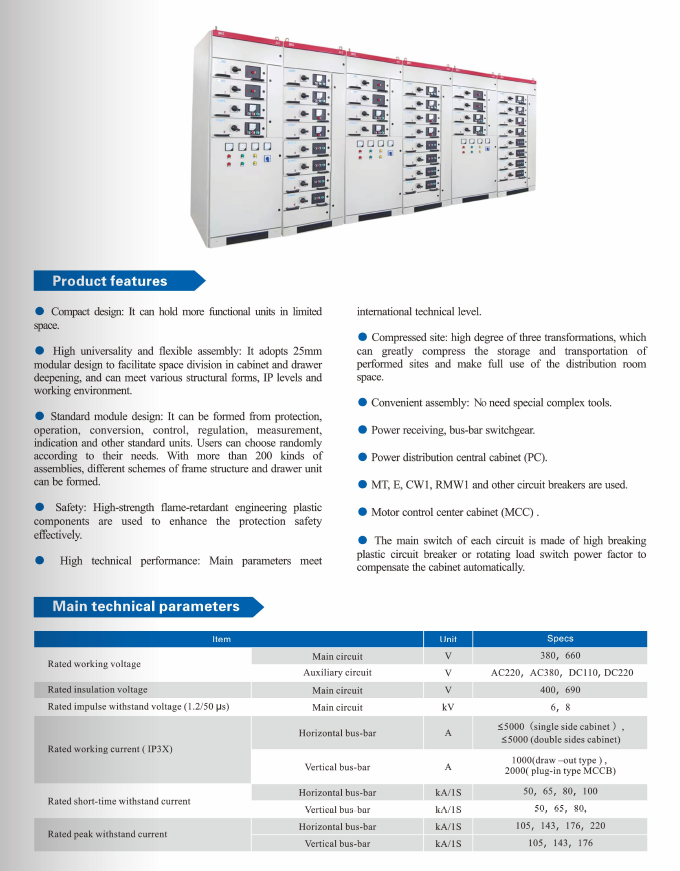

Product features
- Compaet design: It can hold more functional units in limitedspace.
- High universality and flexible assembly: It adopts 25mmmodular design to facilitate space division in cabinet and drawerdeepening, and can meet various structural forms, IP levels andworking environment.
- Standard module design: It can be formed from protection,operation, conversion, control, regulation, measurement,indication and other standard units. Users can choose randomlyaccording to their needs. With more than 200 kinds ofassemblies, different schemes of frame structure and drawer unitcan be formed
- Safety: High-strength flame-retardant engineering plasticcomponents are used to enhance the protection safetyeffectively.
- High technical performance: Main parameters meet
international technical level.
- Compressed site: high degree of three transformations, whichcan greatly compress the storage and transportation ofperformed sites and make full use of the distribution roomspace
- Convenient assembly: No need special complex tools.
- Power receiving, bus-bar switchgear.
- Power distribution central cabinet (PC).
- MT, E, CW1, RMW1 and other circuit breakers are used.
- Motor control center cabinet (MCC).
- The main switch of each circuit is made of high breakingplastic circuit breaker or rotating load switch power factor tocompensate the cabinet automatically.

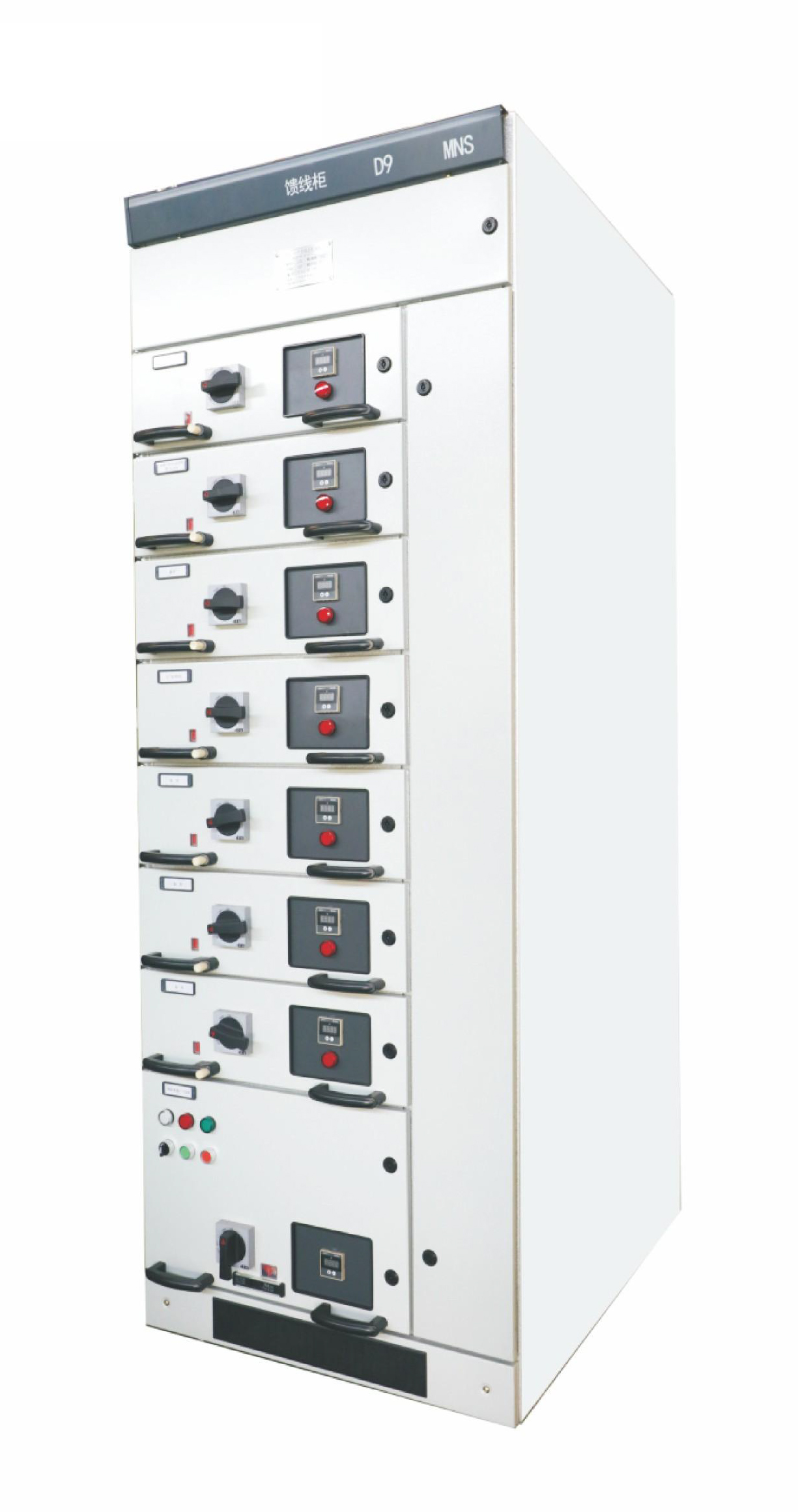

MNS Low voltage draw-out switchgear Name1

Name2

Name1

Name2

Name1

Name2

Name1

Name2

微信图片_2026-02-14_210303_665
