SIOV metal oxide varistors, B722, Leaded varistors, standarD series, S20K275

SIOV metal oxide varistors


Availability:



Inquire Add to Basket

Model:
S20K275
Brand:
Merry

Product Description

SIOV metal oxide varistors, B722, Leaded varistors, standarD series, S20K275

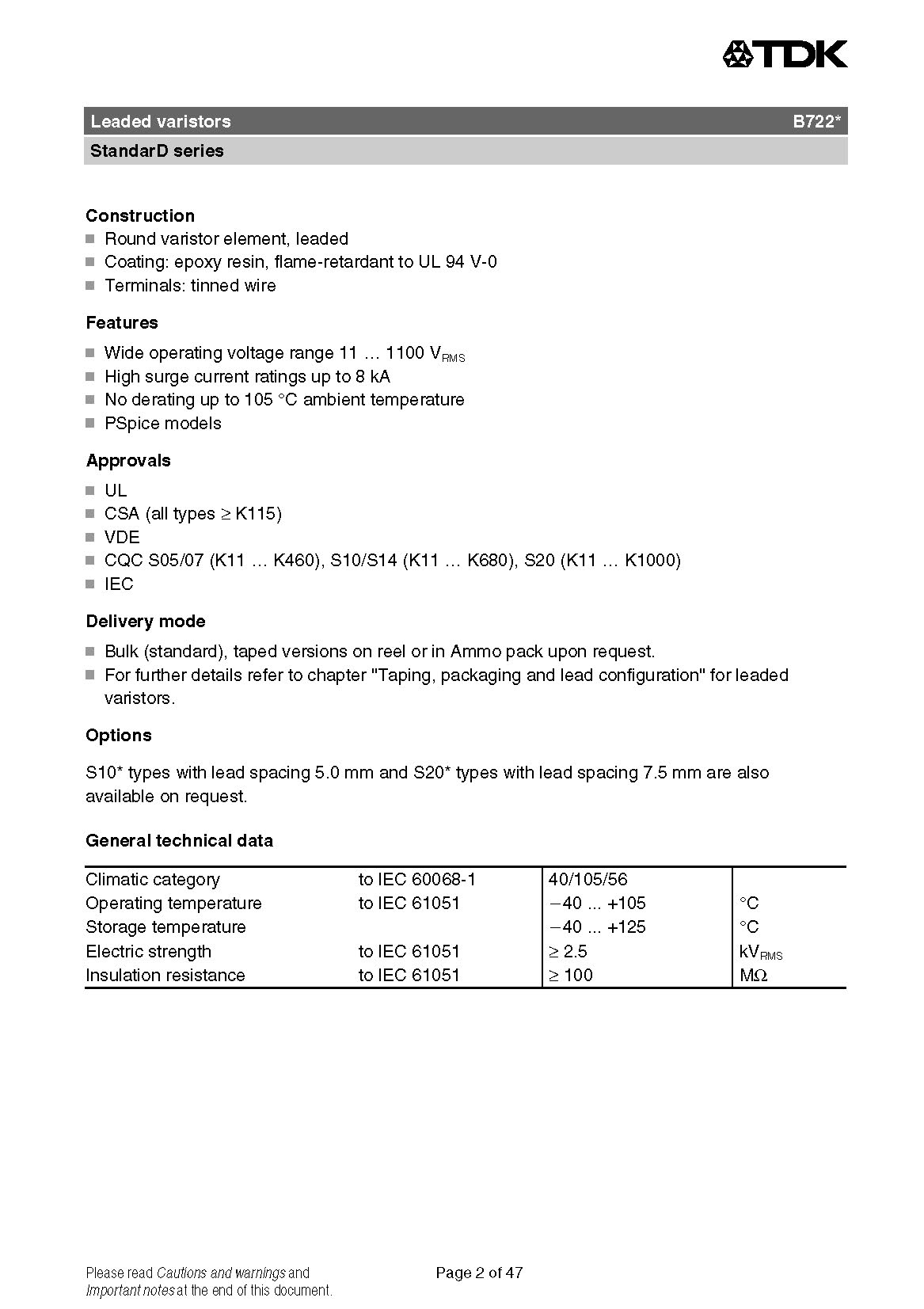

Construction :
• Round varistor element, leaded
• Coating: epoxy resin, flame-retardant to UL 94 V-0
• Terminals: tinned wire

Features :
• Wide operating voltage range 11 … 1100 VRMS
• High surge current ratings up to 8 kA
• No derating up to 105 °C ambient temperature
• PSpice models

Approvals :
• UL
• CSA (all types ³ K115)
• VDE
• CQC S05/07 (K11 … K460), S10/S14 (K11 … K680), S20 (K11 … K1000)
• IEC

Delivery mode :
• Bulk (standard), taped versions on reel or in Ammo pack upon request.
• For further details refer to chapter "Taping, packaging and lead configuration" for leaded varistors.

18352 Name1

Name2

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

Name1

Name2

Name1

Name2

TDK-S20K275-1_页面_02
