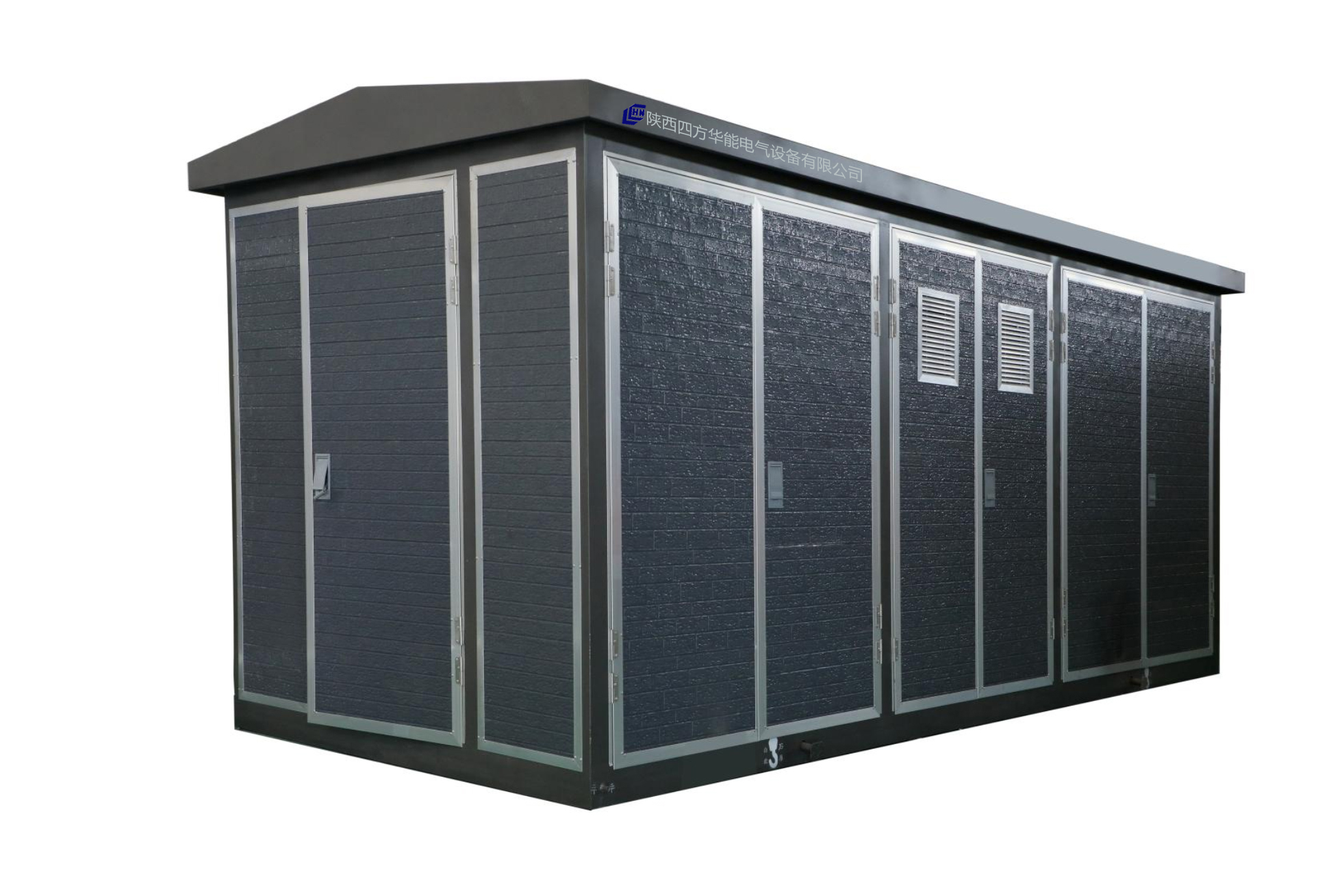

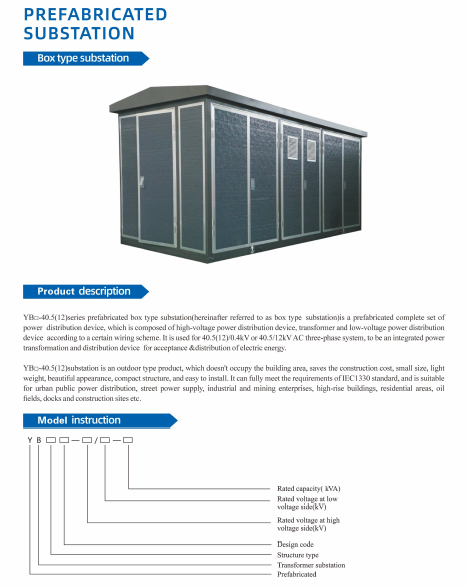

YB-40.5(12) series prefabricated box type substation

Overview
YBo-40.S(12series prefiabricated box type substationhereinafier referred to as bos type substationjis a prefabricned complete set ofpouer distrindioe device, which is campased of high- volage power disaribution device, eaesdamner and low-voliage power diaributiondvice acedingt a cerain wting sheme. Itsused r 40(2ykY or40512kVACthreetase sem to te an inegned poertransfommation and distribution device for acceptance &distribution ofelectrie energ.
YBe-40.5(12substation is an cutdoor pe pruduct, which dosnt oecupy the building area, saes the cotructice cos, small size, lightweigh, beaurifial appearance, compact structure, and eay to install It can fully meet the requirements of IECI 330 stadard, and is suitblefor urtan public power distribution, street power supply, industrial and mining enterprises, high-dise buildings, residential arcas, ailfiekds, docks and construetion sites ete.

Features
- The device corsists of high-voltage power distribution device,mansfoemer and low-voltage porwer distribution device. It is dividedinto three fimnction rooms that are high-voltage room, taaresdormesroom and low-voltage room, The high-voltage room has cormplelefunctions and can be armanged into ring power suppl, terminalpower supply, diall porwer supply and others, It can abso beeqippod with high-volage metering dements to moet theroquirements of high-voltage measurement.
- The low loss oil-immersed type transformer and dry typetransfiormer are optional. Transformer room is equipped withautomatic forced air cooling system and lighting system.
- Aocording to the user's roquirements, the low-voltage roomcan use panel or cabinet mounted structure to form the powersupply schheme required by the user, which has the clockiunctions of power distribution, lighting distribution, reactivepower compensation, electric energy measurement etc, whichcan meet the user's different neods, and comvenient for theuser's power supply management and impeove the quality ofpowcr supply.
- The high voltage room is with compact and reasonablewructure, and has comprehensive anti-misoperation interiockingfunction. Each room has aukomatic and forced lighting devices.In addition, all components for high and low voltage rooms areaith reliable perfornance and easy to operale, which makes thepeodact operation safe and reliable, and is comvenient for theoperation and mainterance.
- Natunal ventilation and forced ventilation to make theventilation and cooling very well, There are wentilation channelsin the transfor mer room and low-voltage room, and the vemtilationfin has temperature detection device, which can automaticallystart and close based on the set tomperture to ensure that thetrnsformer can meet the koad operation.
- The cabinet structure can prevent maimwater and sewage andis made of hot-dip galvanized color steel plate or antirustalumimum alloy plate, Afier anti-corrosion treatment, it can beased for outdoor in long-ter, ensuring the anti-corrosion,anter-proof and dust-peoof performanoe, long service life andbeautifial appearanoe.
