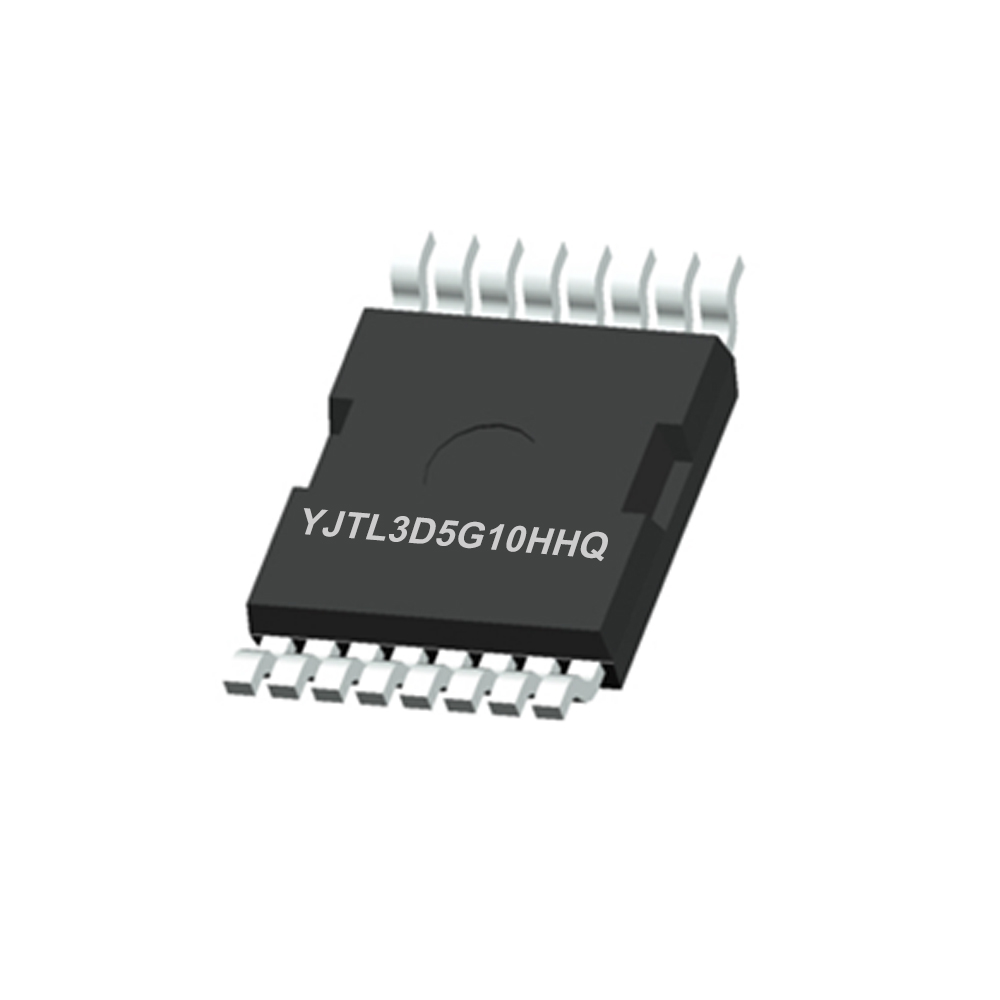

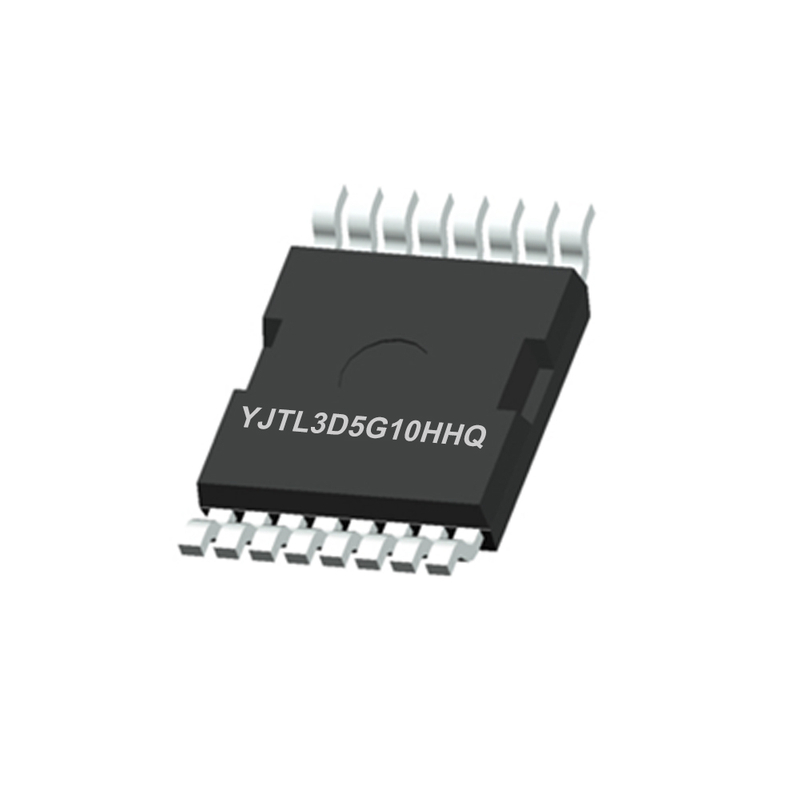

100V 160A N-Channel Enhancement Mode Field Effect Transistor / Tolt YJTL3D5G10HHQ

100V 160A Transistor


Availability:



Inquire Add to Basket

Model:
YJTL3D5G10HHQ
Brand:
Merry

Product Description

100V 160A N-Channel Enhancement Mode Field Effect Transistor / Tolt YJTL3D5G10HHQ

Product Summary
- V_DS 100V
- I_D 160A
- R_DS(ON)( at V_GS=10V) <3.5mΩ
- 100% EAS Tested
- 100% ▽VDS Tested
- ESD Level(HBM) Class H1C

General Description
- Excellent package for heat dissipation
- High density cell design for low R_DS(ON)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free

Applications
- OBC (On-Board Charger)
- Motor drive system
- DC-DC convertor
