1200V 40A 428W IGBT Discrete to-247 High Short Circuit Capability DGW40N120CTLQ

1200V 40A IGBT Discrete


Availability:



Inquire Add to Basket

Model:
DGW40N120CTLQ
Brand:
Merry

Product Description

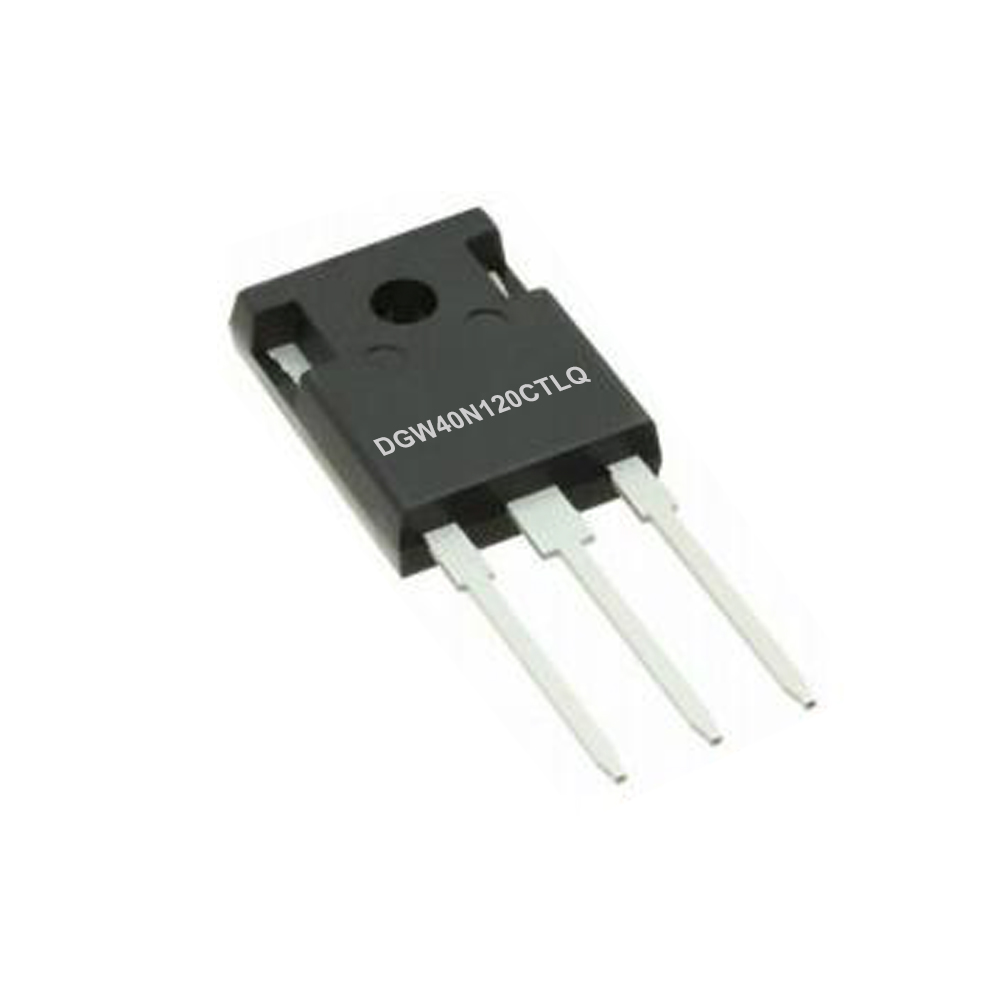

1200V 40A 428W IGBT Discrete to-247 High Short Circuit Capability DGW40N120CTLQ

V_CE : 1200V
I_C : 40A
V_CE(SAT) I_C=40A : 1.85V
P_D : 428 W

Features
- Low Collector - Emitter Saturation Voltage
- Maximum junction temperature 175ºC
- Qualified to AEC-Q101
- Including fast & soft recovery anti-parallel FWD
- High short circuit capability(10us)
- RoHS Compliant

Typical Applications
- General Inverter for Automotive and Industrial Use
- AC and DC servo drive amplifier
- Uninterruptible power supply

DGW40N120CTLQ Name1

Name2

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

Name1

Name2

Name1

Name2

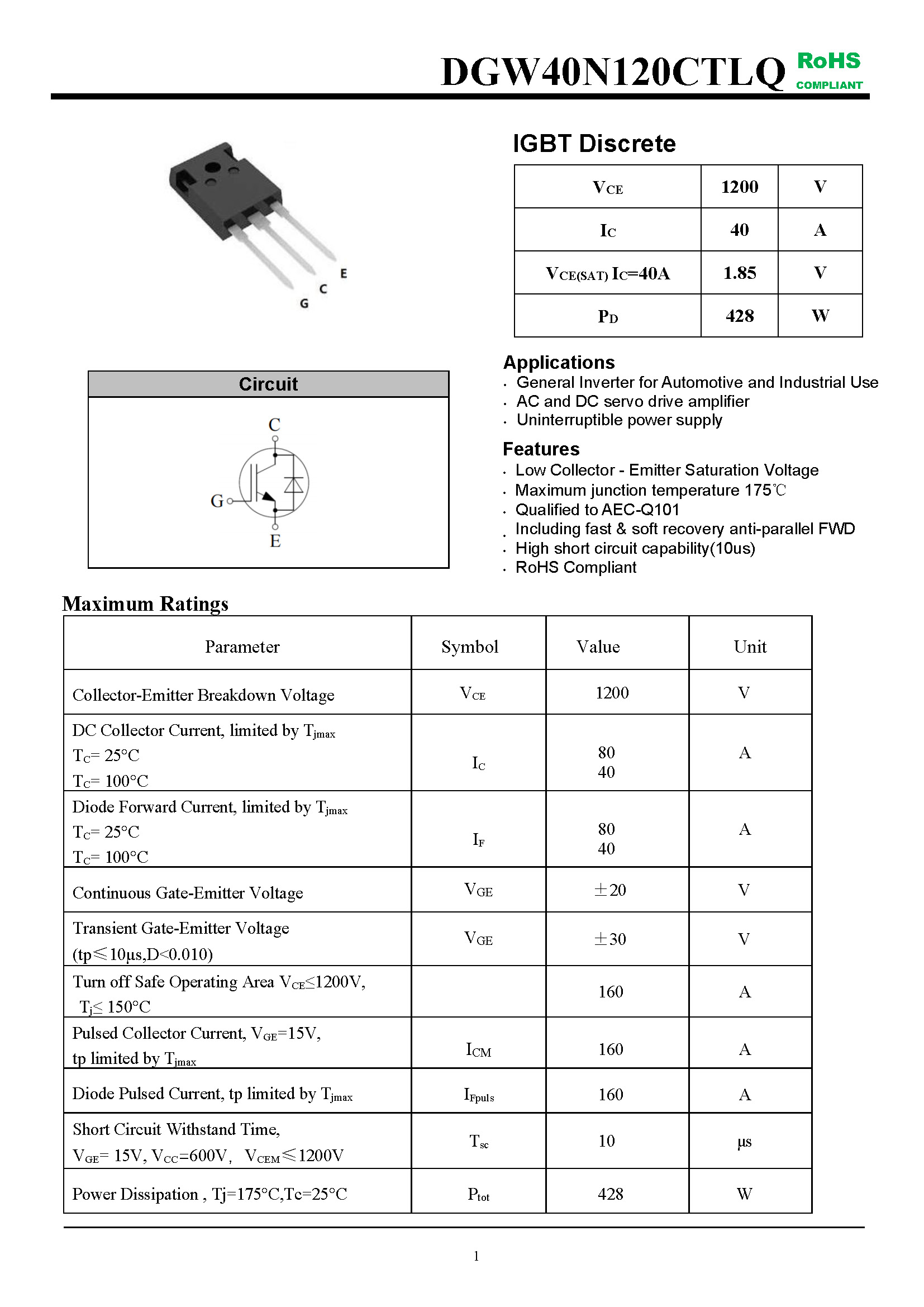

DGW40N120CTLQ-1_页面_1

Dongguan Merry Electronics Co., Ltd.

was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Merry's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
