1200V 480A Sic Diode Power Module F2 High Speed Rectifiers MB480u12f2

1200V 480A Sic Diode Power Module


Availability:



Inquire Add to Basket

Model:
Yjd112040nqg2
Brand:
Merry

Product Description

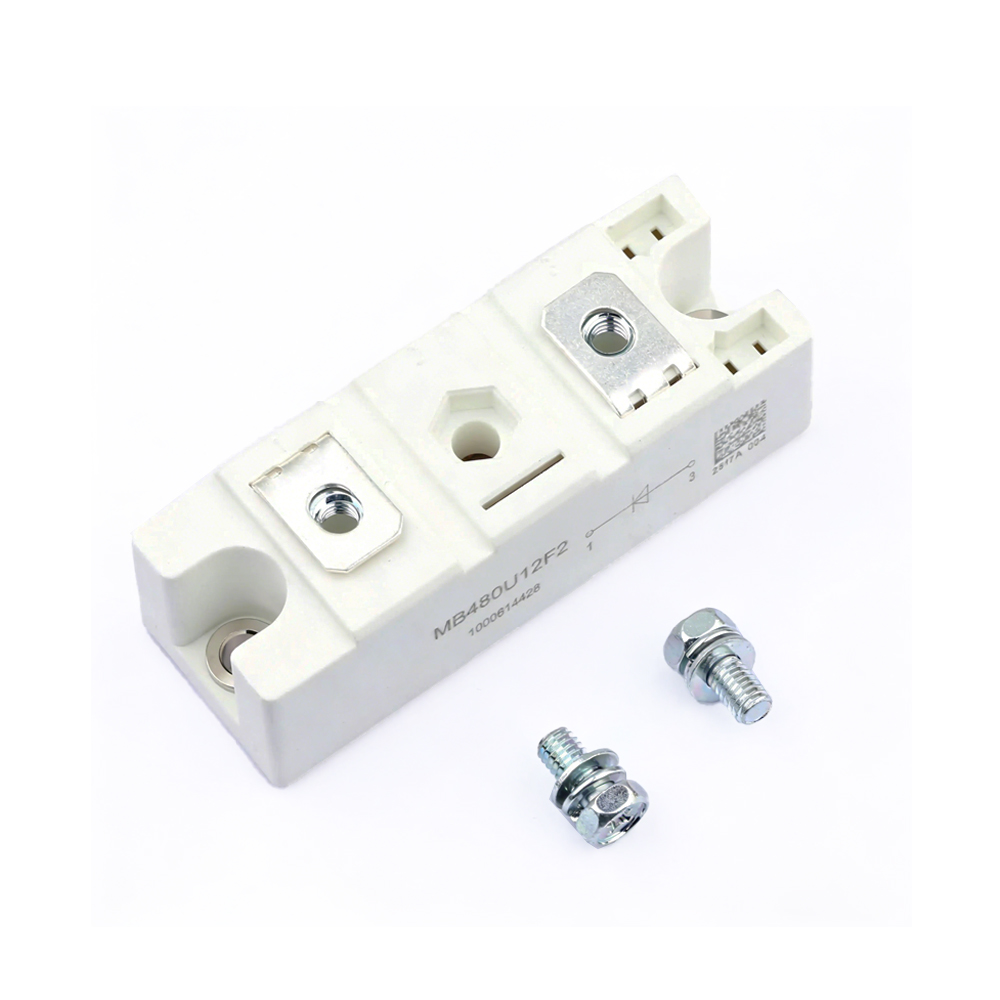

1200V 480A Sic Diode Power Module F2 High Speed Rectifiers MB480U12F2

V_DC : 1200V
I_F : 480A
T_J,max : 175^oC

Features
- SiC Schottky Diode
- Zero reverse recovery
- Zero forward recovery
- Temperature independent switching behavior
- Positive temperature coefficient on V_F
- Very low stray inductance
- Low forward voltage
- Isolated package (F2)
- Low noise switching
- RoHS compliant

Typical Applications
- Welding equipment
- Uninterruptible power supply (UPS)
- High frequency power supply
- Induction heating
- High speed rectifiers

MB480U12F2 Name1

Name2

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

Name1

Name2

Name1

Name2

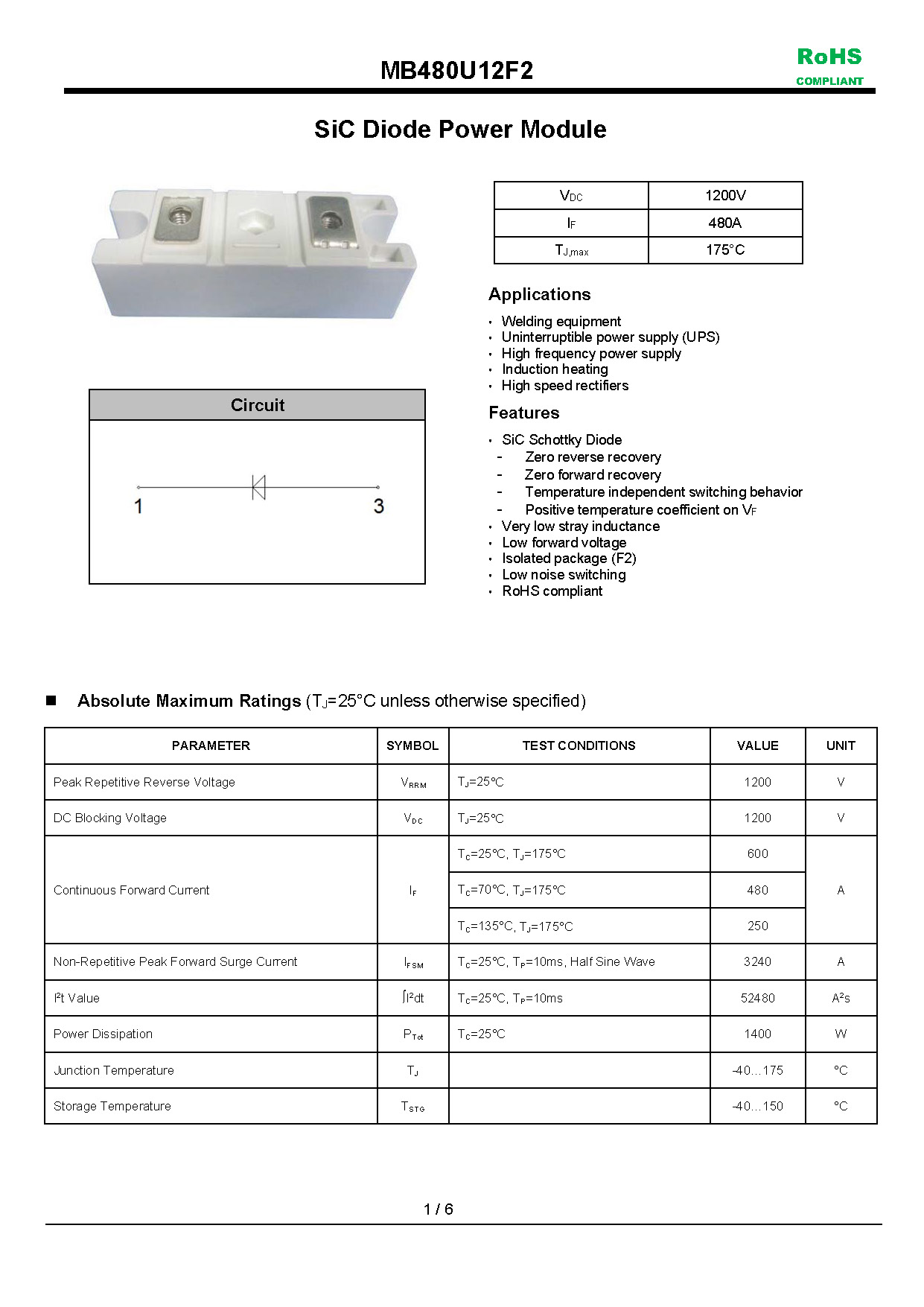

MB480U12F2-1_页面_1

Dongguan Merry Electronics Co., Ltd.

was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Merry's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.
