1200V 51A Silicon Carbide Schottky Diode to-247AC High-Frequency Yjd112040nqg2

1200V 51A Silicon Carbide Schottky Diode


Availability:



Inquire Add to Basket

Model:
Yjd112040nqg2
Brand:
Merry

Product Description

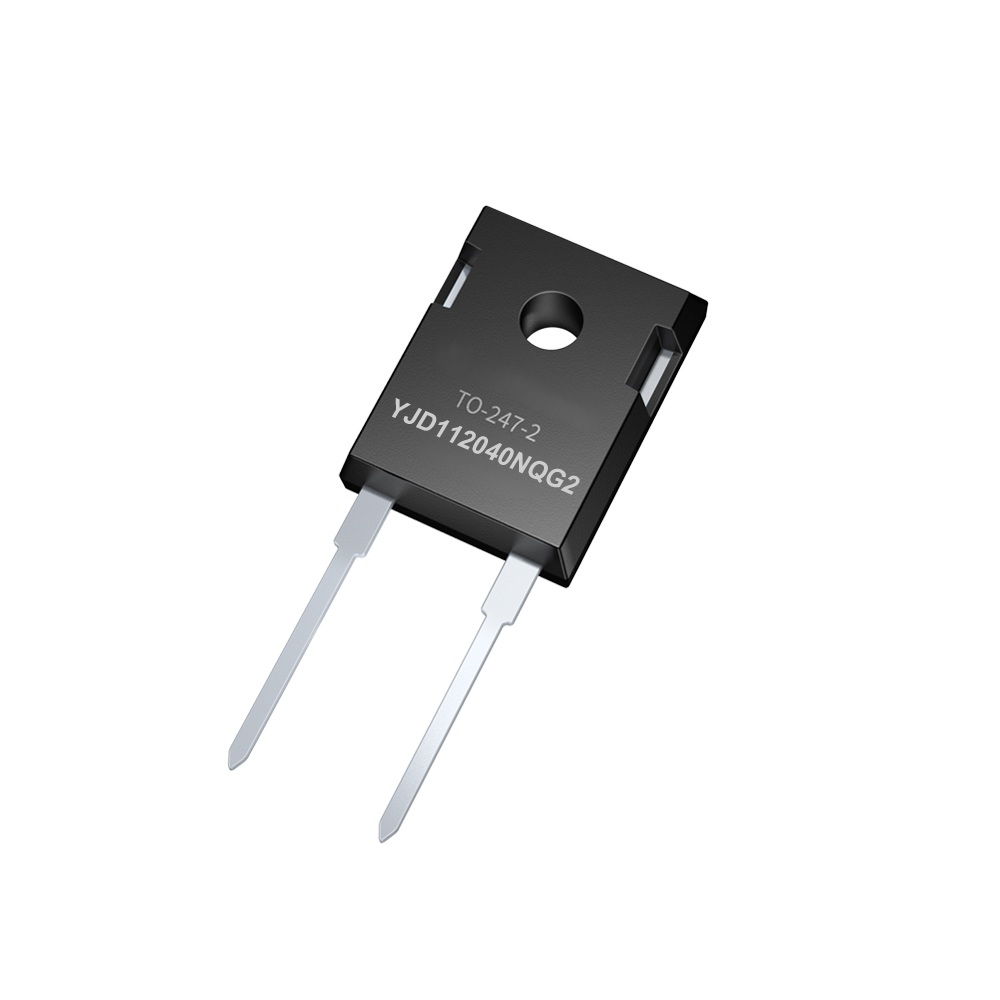

1200V 51A Silicon Carbide Schottky Diode to-247AC High-Frequency YJD112040NQG2

V_RRM : 1200V
I_F(135°C) : 51A
Q_C : 216nC

Features
- Positive temperature coefficient
- Temperature-independent switching
- Maximum working temperature at 175 °C
- Unipolar devices and zero reverse recovery current
- Zero forward recovery current
- Essentially no switching losses
- Reduction of heat sink requirements
- High-frequency operation
- Reduction of EMI

Typical Applications
- Typical applications are in power factor correction(PFC), solar inverter, uninterruptible power supply, motor drives, photovoltaic
inverter, electric car and charger.

Mechanical Data
- Package: TO-247AC
- Terminals: Tin plated leads
- Polarity: As marked

YJD112040NQG2 Name1

Name2

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

Name1

Name2

Name1

Name2

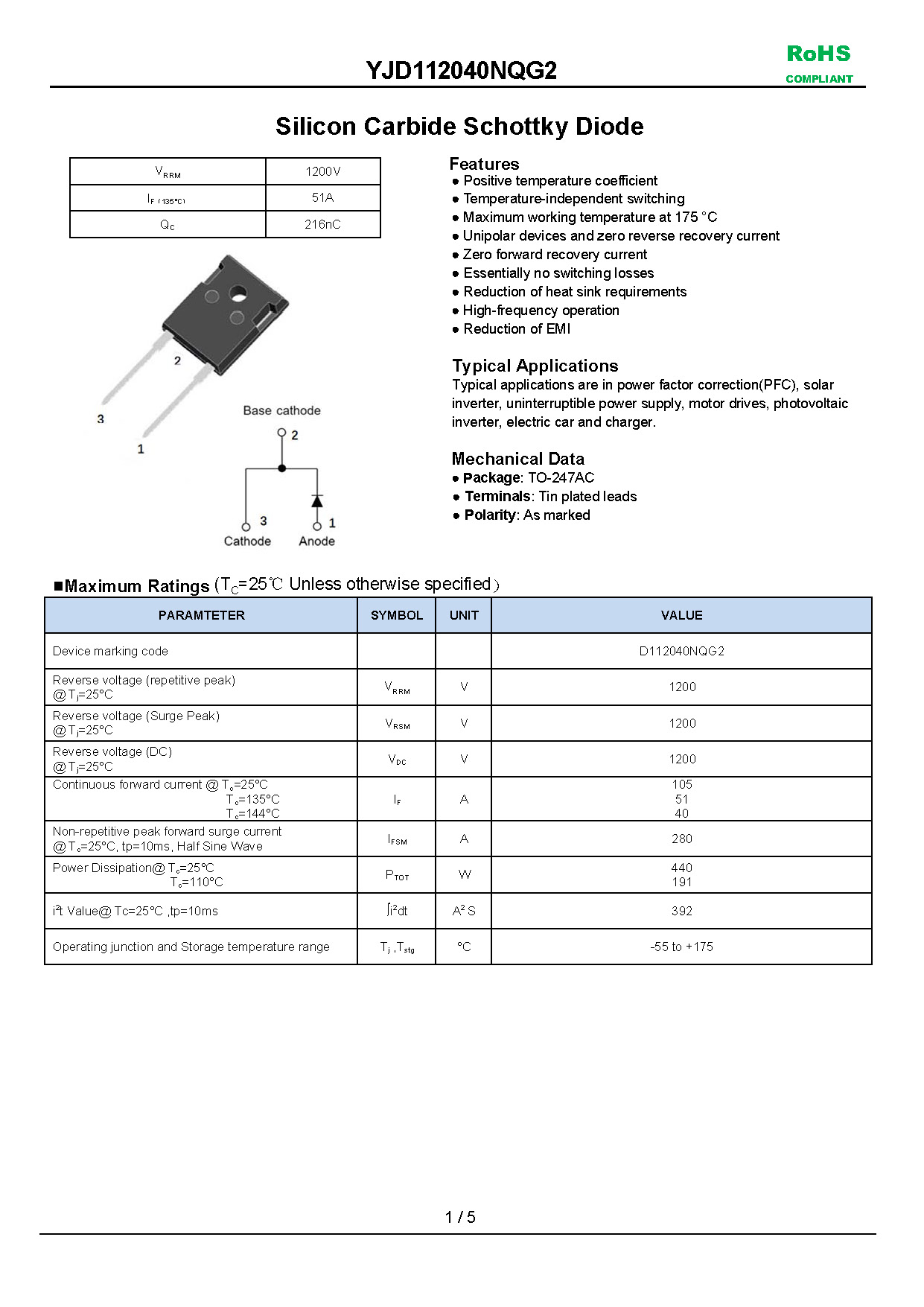

YJD112040NQG2-1_页面_1
