MBRS3200T3

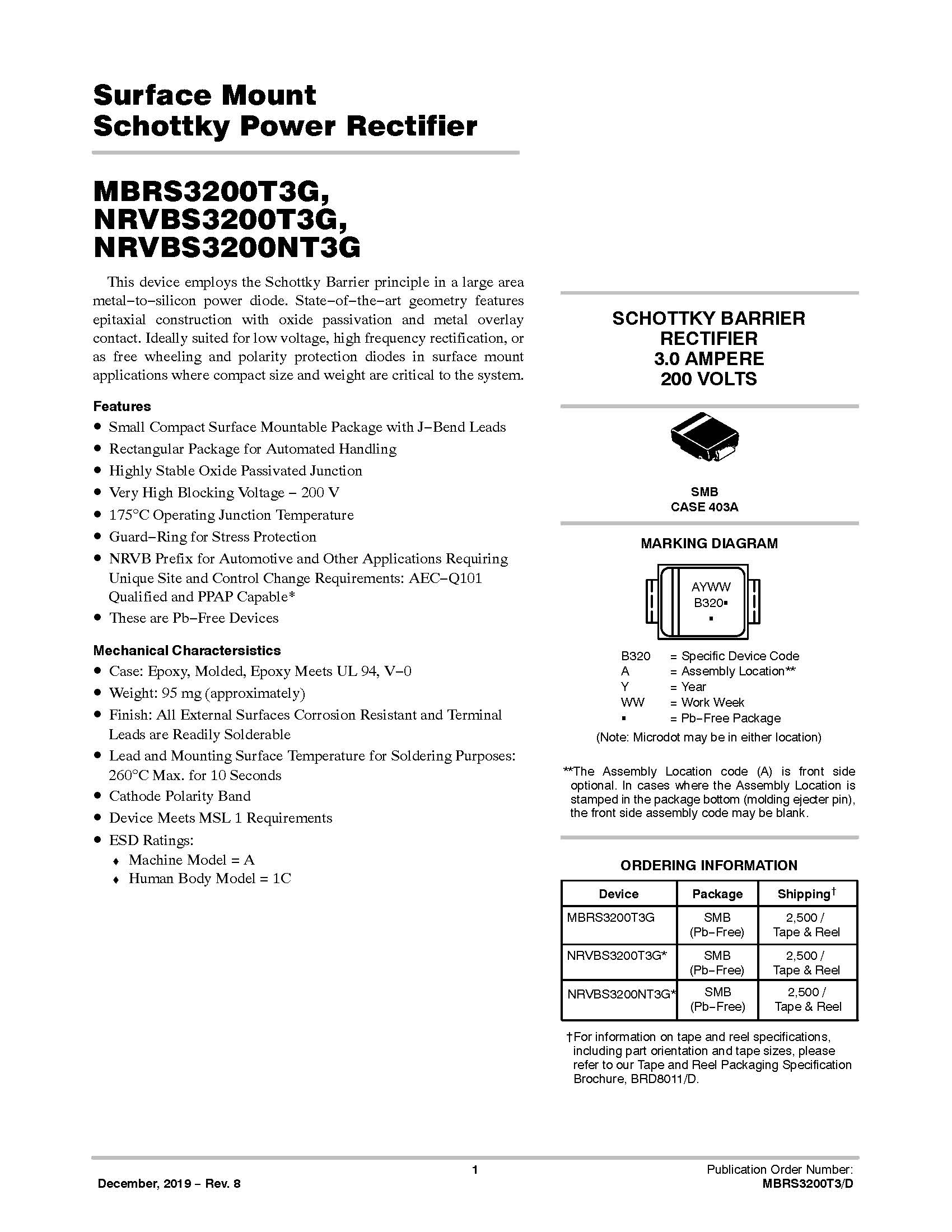

This device employs the Schottky Barrier principle in a large area metal−to−silicon power diode. State−of−the−art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.
Features

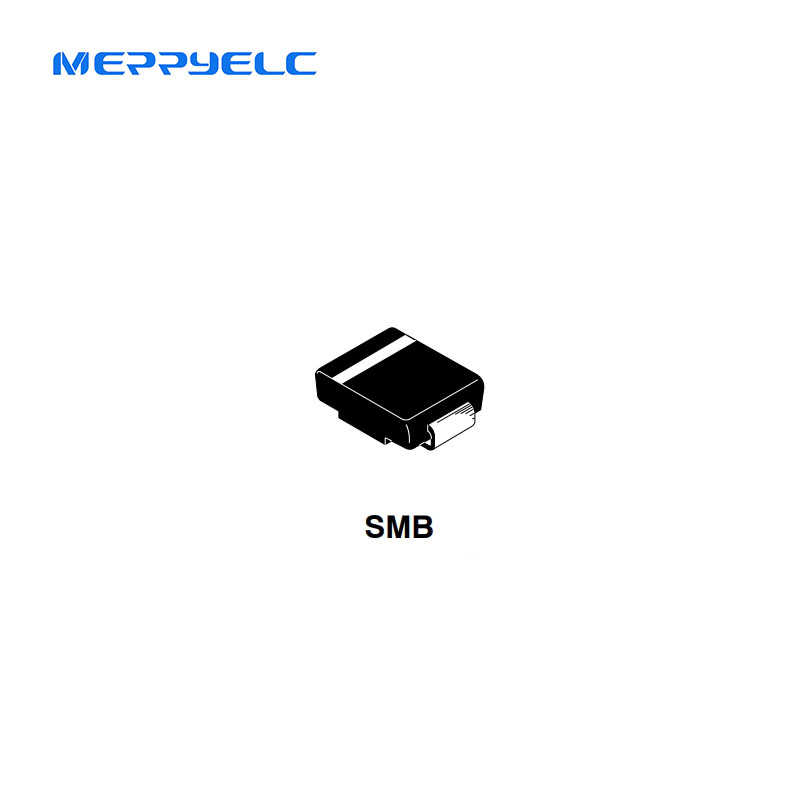

• Small Compact Surface Mountable Package with J−Bend Leads
• Rectangular Package for Automated Handling
• Highly Stable Oxide Passivated Junction
• Very High Blocking Voltage − 200 V
• 175°C Operating Junction Temperature
• Guard−Ring for Stress Protection
• NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements: AEC−Q101 Qualified and PPAP Capable*
• These are Pb−Free Devices

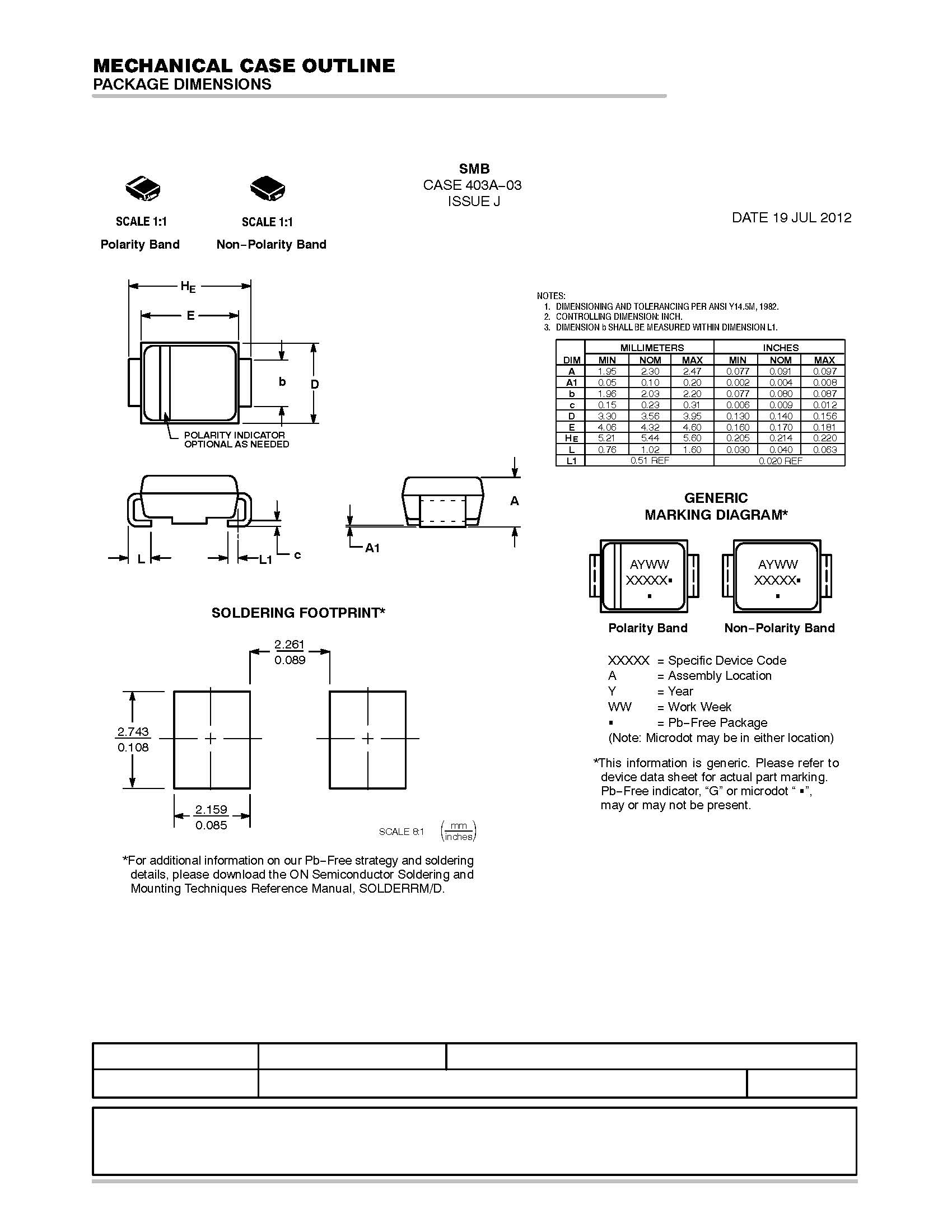

Mechanical Charactersistics
• Case: Epoxy, Molded, Epoxy Meets UL 94, V−0
• Weight: 95 mg (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
• Cathode Polarity Band
• Device Meets MSL 1 Requirements
• ESD Ratings: ♦ Machine Model = A ♦ Human Body Model = 1C
