20V 7A N-Channel and N-Channel Complementary Mosfet / Pdfn3030-8L Yjud3416A

20V 7A Mosfet


Availability:



Inquire Add to Basket

Model:
YJUD3416A
Brand:
Merry

Product Description

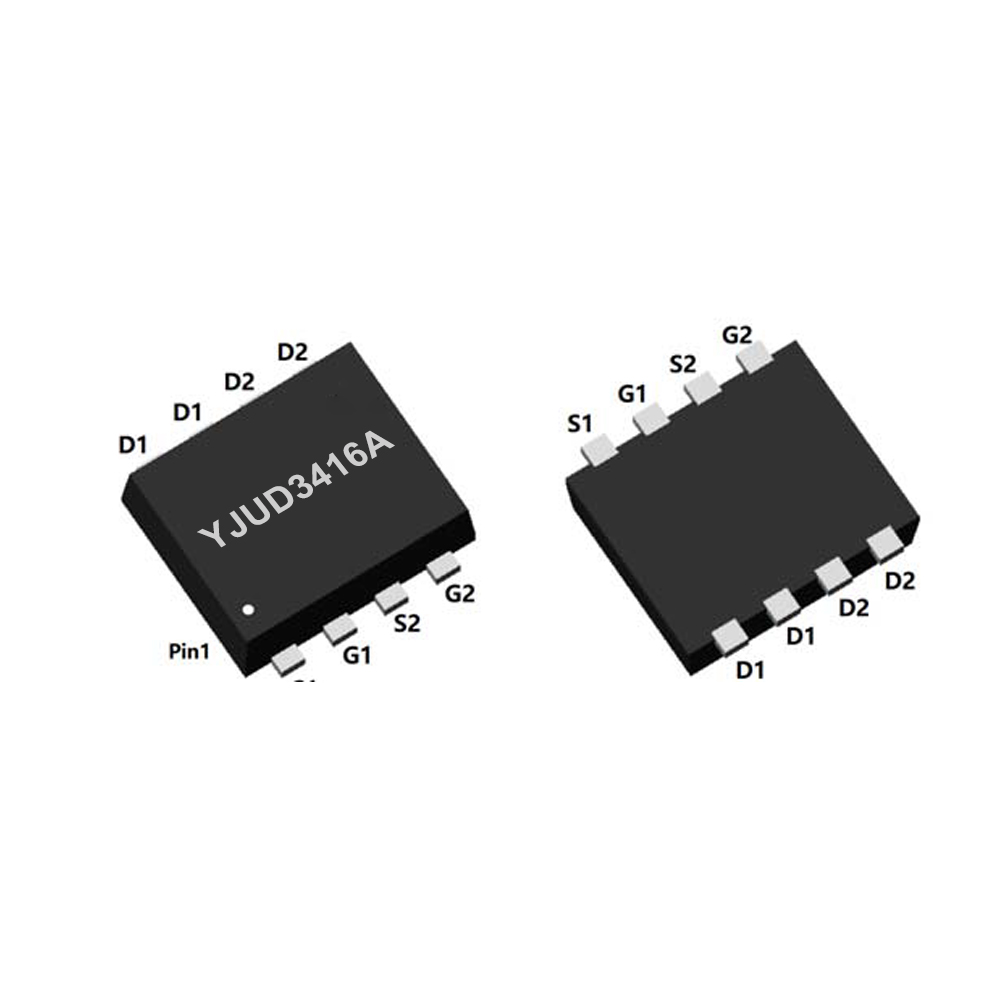

20V 7A N-Channel and N-Channel Complementary MOSFET / PDFN3030-8L YJUD3416A

Product Summary
- V_DS 20V
- I_D 7A
- R_DS(ON)( at V_GS=4.5V) <17mΩ
- R_DS(ON)( at V_GS=2.5V) <22mΩ
- R_DS(ON)( at V_GS=1.8V) <39mΩ
- ESD Protected Up to 2KV (HBM)

General Description
- Trench Power LV MOSFET technology
- High Speed switching
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free

Applications
- PWM application
- Load switch

YJUD3416A Name1

Name2

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

Name1

Name2

Name1

Name2

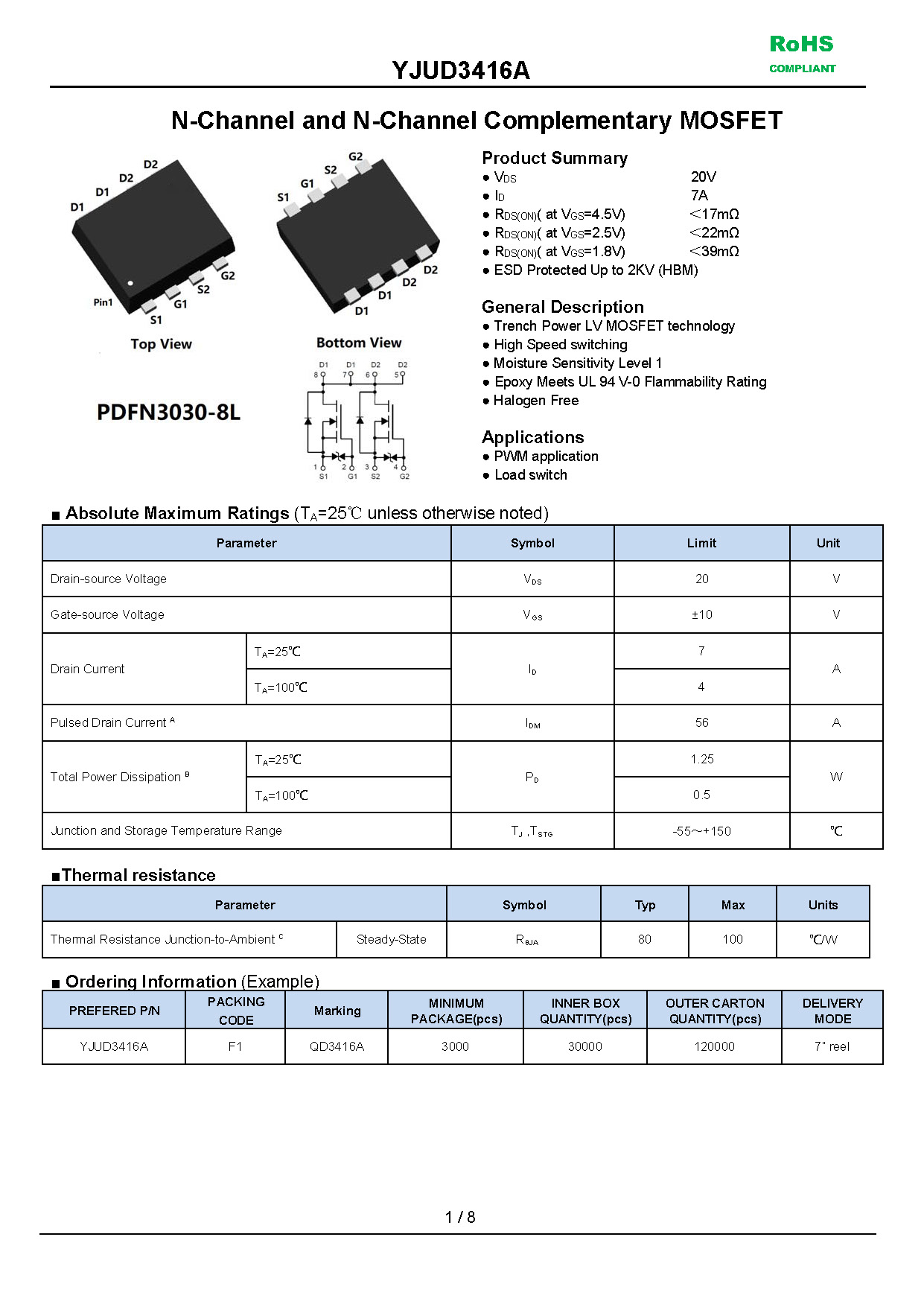

YJUD3416A-1_页面_1

Dongguan Merry Electronics Co., Ltd.

was established in 2013 as a professional supplier of semiconductor discrete device sales and technical services.
The core management team has many years of industry background, and constantly attracts outstanding talents to join, and has a complete talent cultivation mechanism; to ensure the continuous improvement of competitiveness.
The company's core product lines include:
1. Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier;
2. Low voltage MOS; super junction MOS
3. SIC diode; SIC MOSFET
Merry's product line will help you achieve highly innovative and outstanding performance solutions, covering switched mode power supplies (SMPS), computing, motor control and drive, consumer electronics, mobile devices, lighting solutions, automotive and other applications. Many areas of the country.

Q1:What service do you have?

We provide turnkey solution including RD, PCB fabrication, SMT, testing and other value-added service.

Q2:What are the main products of your PCB/PCBA services?

Our PCB / PCBA services are mainly for the industries including Medical, Automotive, Energy, Metering / Measurements, Consumer Electronics.

Q3:Can we inspect quality during production?

Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house.

Q4:How can we ensure our information should not let third party to see our design?

We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.

plification

- Switching circuit
