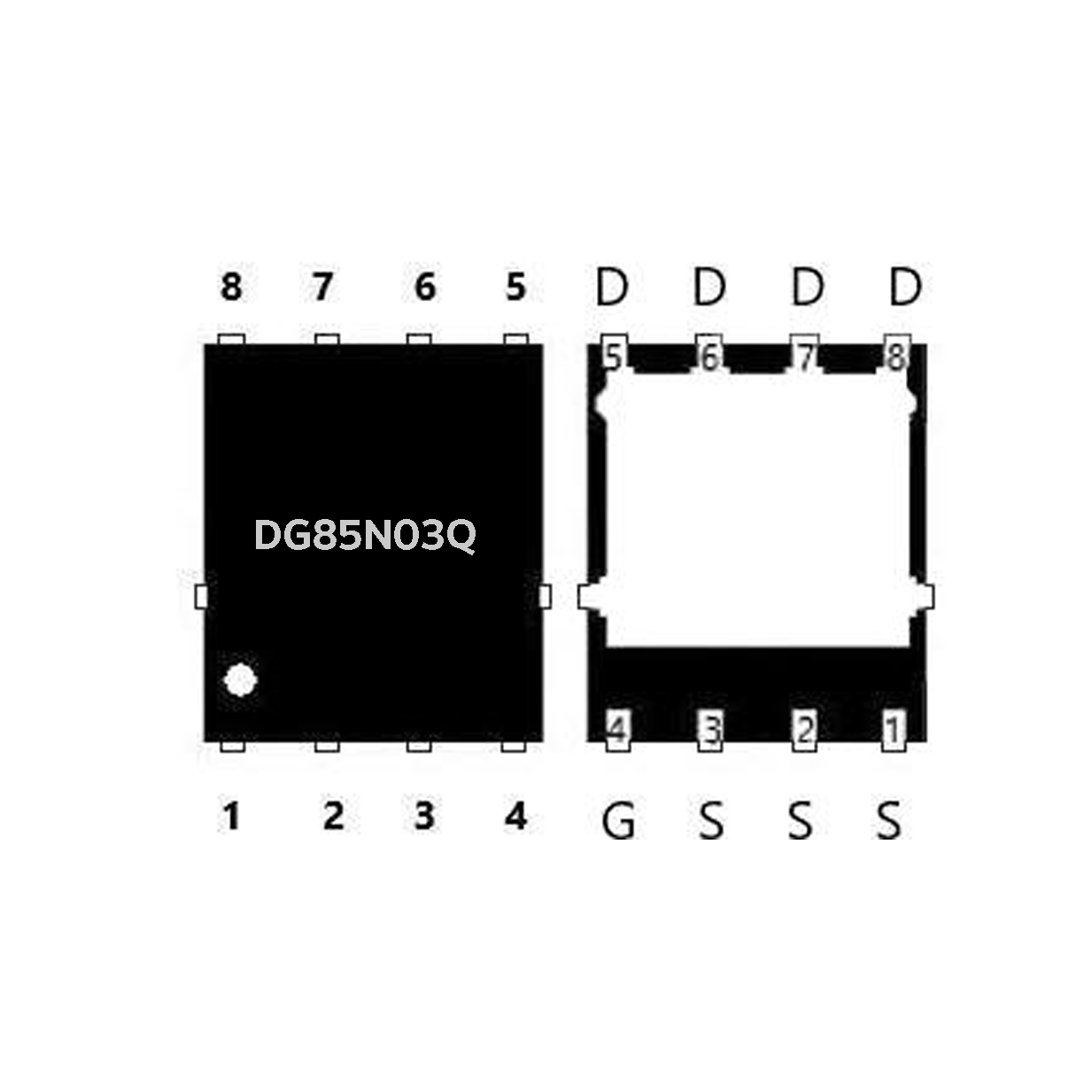

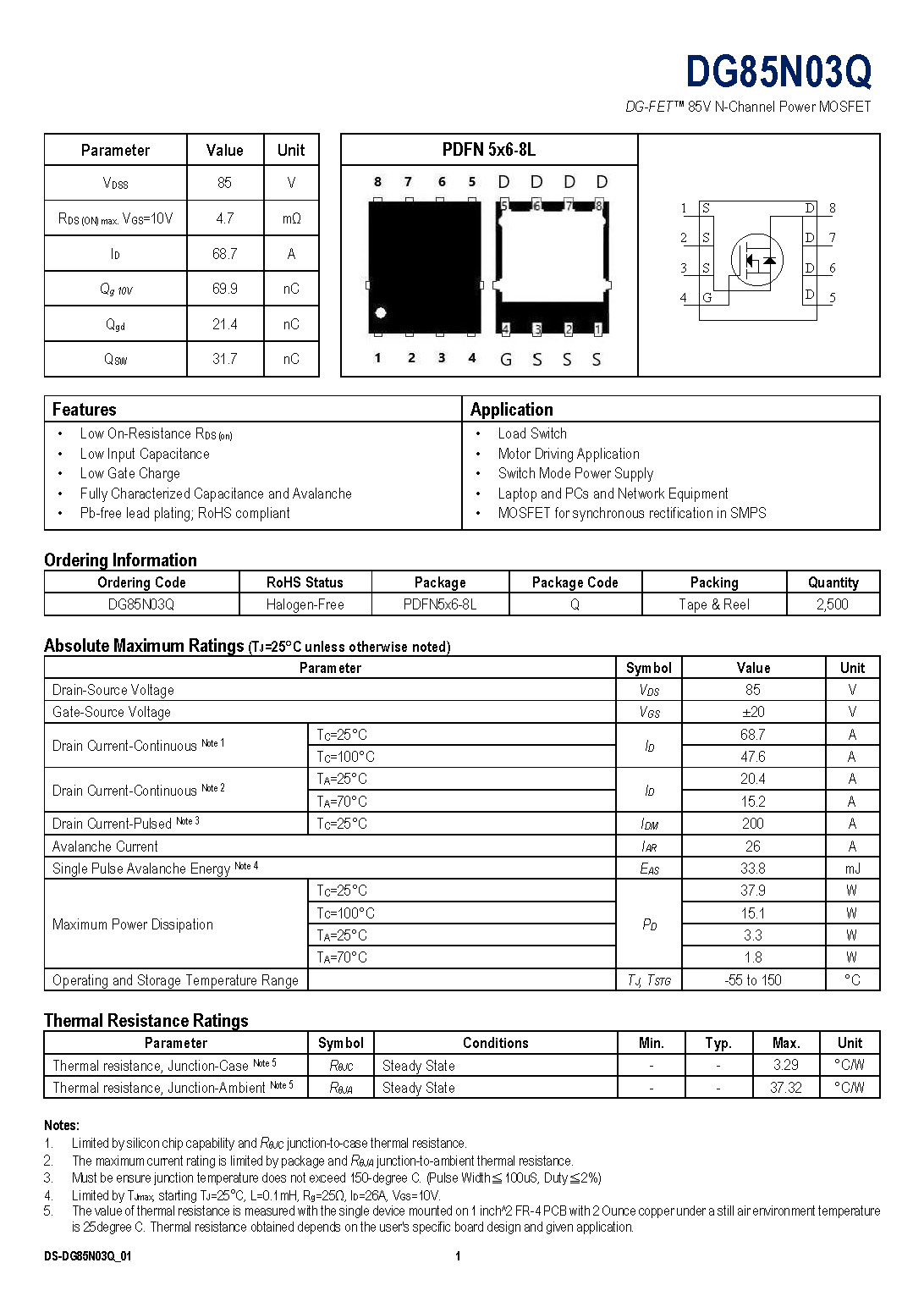

85V N-Channel Power MOSFET Low Input Capacitance Low Gate Charge PDFN 5x6-8L DG85N03Q
N-Channel :
VDSS , 85V
RDS(ON) , 4.7mΩ (max.) @ VGS=10V
ID , 68.7A
Features :
• Low On-Resistance RDS (on)
• Low Input Capacitance
• Low Gate Charge
• Fully Characterized Capacitance and Avalanche
• Pb-free lead plating; RoHS compliant
Applications :
• Load Switch
• Motor Driving Application
• Switch Mode Power Supply
• Laptop and PCs and Network Equipment
• MOSFET for synchronous rectification in SMPS
